Home > Products > thickening equipment > China Thickener Machine For Gold Mining Processing Plant

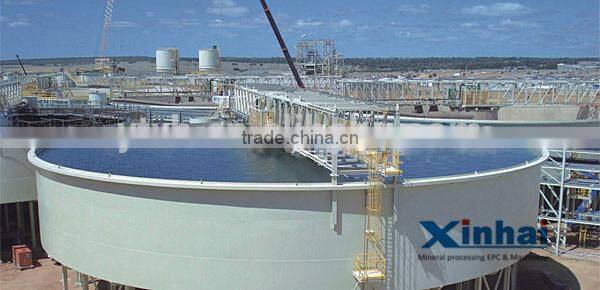

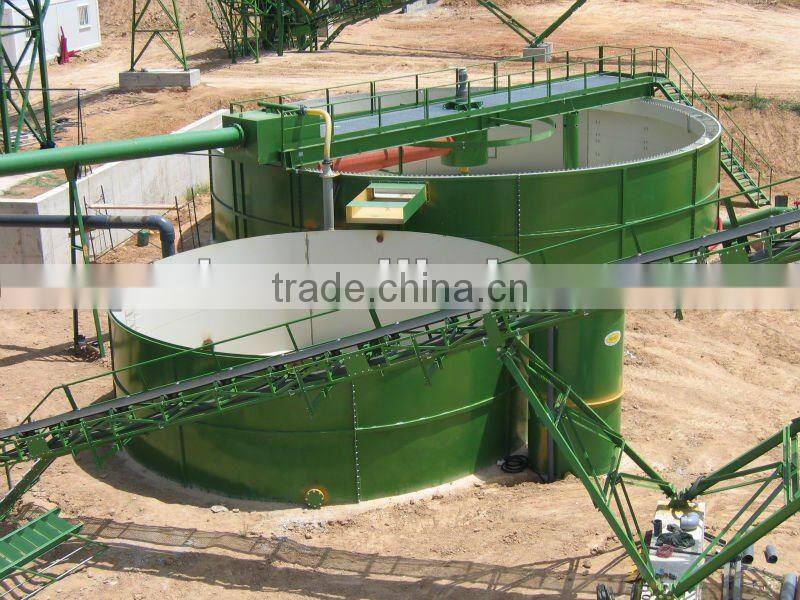

China Thickener Machine For Gold Mining Processing Plant

FOB Price

US$ 5,000 - 300,000 / Set

1 Set(Min. Order)

Port Qingdao China
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Application	mining
Motor Type	Stepper Motor	Power(W)	depend on the model
Production Capacity	depend on the model	Place of Origin	Shandong, China
Brand Name	Xinhai	Model Number	NZSG
Dimension(LWH)	depend on the model	Certification	ISO 9001, CE
Warranty	one year	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

China Thickener Machine For Gold Mining Processing Plant

Product Feature

gold thickener —Product Feature

1.Deaeration cell is provided to prevent solid particles from attaching to bubbles so that solid particles can fall like a parachute.

2.The mineral-feeding pipe is lower than the pulp surface; it prevents the air to be brought in while feeding

3.The feeding sleeve is moved to a lower position and receiving plate is equipped. Therefore, the fed slurry fall evenly and steadily, preventing rolling phenomena because of the residual pressure from feeding

4.Inner overflow weir is equipped to make the pulp flow on pre-designed route, avoiding short circuit, enlarging the sedimental area

5.Inner overflow weir is made into indented shape, eliminating part suction phenomena induced by unleveled overflow weir.

6.The peg linear is changed from oblique lines to curves. So the discharging underflow has higher density, and treatment capacity is enhanced.

Application

gold thickener — Product Application

It is widely used for dealing with slime, wastewater, waste residue in metallurgy, mine, coal, petrochemical industry, building materials, environmental protection department etc.

Work Principle

gold thickener —Product Principle

This thickener consists of round thickener and harrow scrapping machine, the solid particles suspend in thickener settling by gravity, the pulp in the upper turn into clean water, so that the separation can be realized. Slime that sediment in the bottom of the thickener is discharged by the harrow scrapping continuously, and clean overflow from the upside.

Technical Parameters

gold thickener — Technical Parameter

Model	D of the tank (mm)	Depth of the tank (mm)	Sedimental area (m2)	capacity (t/d)	Motor model	Motor power (kw)
NZSG-2.5	2500	1850	4.9	5-10.8	Y90L-6	1.1
NZSG-3A	3000	1800	7	5-23.3	Y100L-6	1.5
NZSG-3	3600	1800	10.2	5-28.5	Y100L-6
NZSG-5	5000	2956	16	16-90	Y90L-4
NZSG-6	6000	2956	28.3	98	Y90L-4
NZSG-7	7000	3000	38.5	140	Y112M-6	2.2
NZSG-8	8000	3318	50.2	185	Y132S-6	3
NZSG-9	9000	3376	63	210
NZSG-12	12000	3600	113	370
NZSG-15	15000	4000	176	580	Y132(M2)-6	5.5
NZSG-18	18000	4400	255	960	YCT200-413	7.5
NZSG-20	20000	4400	315	1400	Y160(M2)-8	7.5

About Xinhai

Group Introduction

Xinhai Group founded in 1993 has grown into the industry group involving mineral processing, wearable rubber, mining investment and LFC Machinery after twenty years development. We have been always committed to providing customers with professional, perfect, efficient equipment and solutions. The whole solution we provide for you with the core of reliable & efficient mineral processing schemes and environmental-protection & energy-saving tailings dry stacking, makes us stand up in every EPC bid.
