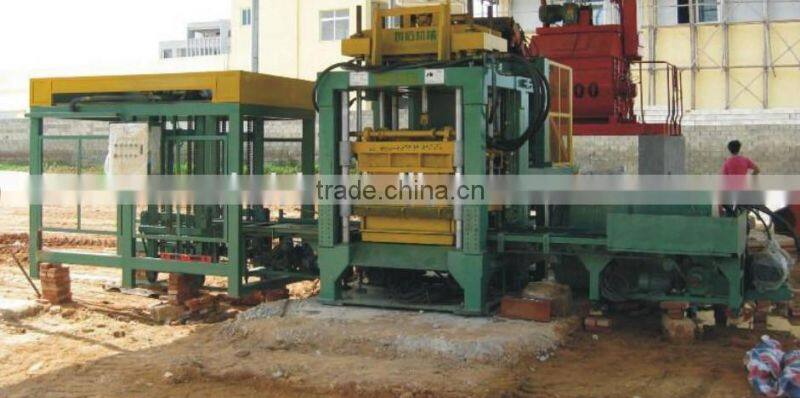

Fully Auto Brick Making Machine/block Brick Making Machine

Automatic concrete brick machine mainly advantage:

  Till now, our automatic block making machine is available with QT4-15 series, QT4-20 series, QT6-15 series, QT8-15 series, and QT10-15 series.

(1). Main Technical Parameter

(2).Production capacity

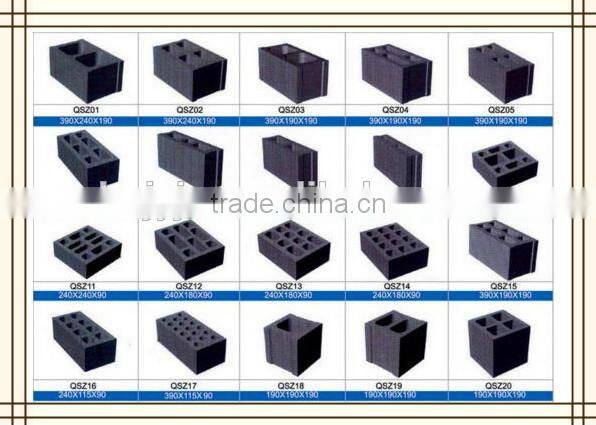

390 x 190 x 190mm  hollow block                     12pcs/mold

240 x 115 x 90mm   small hollow block            32pcs/mold

240 x 115 x 53mm   solid brick                          76pcs/mold

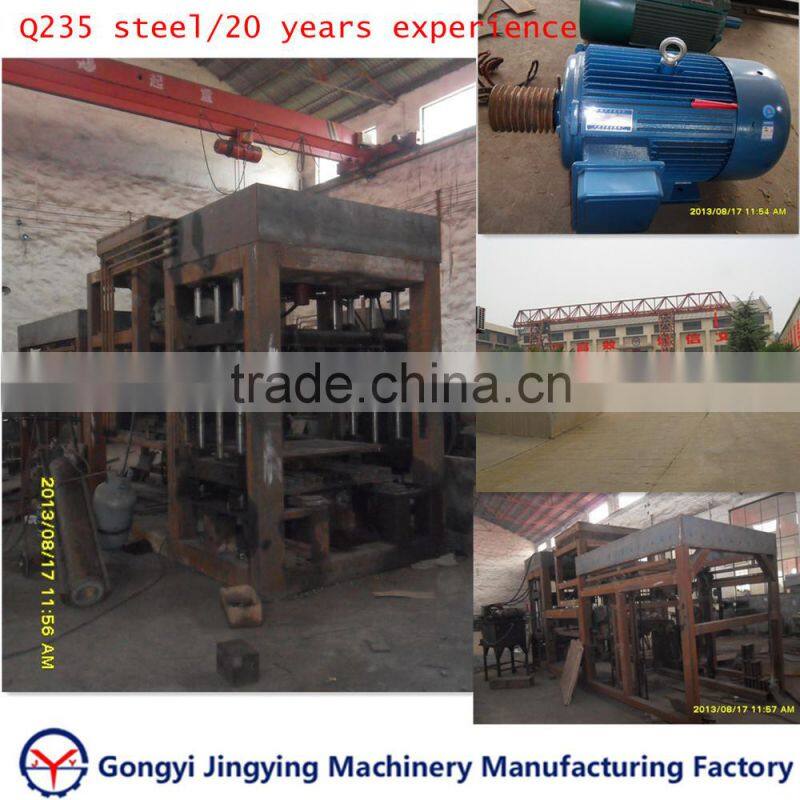

1. Mainframe
The automatic block making machine applies the high-strength structural steel and special welding technique for its mainframe. The firmness of the mainframe allows the whole machine to come with good rigidity and vibration resistance.

2. Guide Pillar
The guide pillar of this machine applies the ultrastrong special steel. By virtue of the chromate plated treatment, it perfectly resists torsion and abrasion. Additionally, the four guide pillars together with the ultra-long guide bearing make the pressure head and mould move accurately. This moving system adopts the special device that is good for lubrication, thus avoiding abrasion.

3. Material System
The crane of the material machine is controlled by the hydraulic system. That its hopper is connected to the crane by the rubber spring, can offer favourable damping effect while preventing the vibration compaction of the remained materials. In the system, the hopper is equipped with a door which can help realize the uniform material distribution.

4. Material Distributing System
In this system, the material storage and distribution are independent from each other. The material receiving in the material box is accurately controlled. Under the function of the powerful centrifugal force, the material is speedily and evenly distributed.

5. Vibration System
For the vibration system, our equipment employs the separate type coupling vibration technology, which can enlarge the effective vibration area by 2 times. This technology not only helps improve the product quality and output, but also it can prolong the mould service life with effect. In addition, the vibration cabinet of hanging type structure can bear intensive vibration, and no damage or breakage appears. Meanwhile, the vibrating shaft rotates eccentrically and synchronously to generate vertical exciting force, which can ensure the optimal material distribution and block molding effect.

6. PLC Control System
Technical parameters including flow, pressure, etc., can be set via the touch screen. All the electric elements are imported famous brands, such as Mitsubishi, Omron, SIEMENS, etc. Therefore, the control system is reliable in performance. The failure rate is extremely low. In the system, there are three controlling units, all of which are described as below:
a. The full-automatic controlling system for the material mixing;
b. Automatic controlling system used for molding machine, conveyor, and so on;
c. Stacker controlling system

7. Multifunction
When equipped with different moulds, this automatic block making machine can make any size concrete products, for instance, perforated bricks, hollow blocks, etc. If installed with the material device, it also can produce the color bricks.
