Jingying Brand Hydraulic Concrete Block Making Machine and Cement Bricks Machine
- Qingdao
- T/T Credit Card PayPal
You May Like
-
Jingying Brand QT4-20 Brick Paving Machine and Concrete Block Making Machine for Sale
-
Factory Making QT4-20 Cement Brick Making Machine and Block Machine
-
Factory Making QT4-20 Cement Bricks Making Machine With Concrete Mixer Machine
-
Factory Making QT4-20 Hydraulic Block Making Machine and Cement Bricks Machine With Low Price
-
China Reliable Quality QT4-20 Fly Ash Bricks Machine and Cement Brick Making Machine Price
-
China Reliable Quality Small Block Making Machine and Cement Bricks Making Machine Price
Product Details
| Condition | New | Type | Other, solid block,hollow block,porous block,paving block | |
| Brick Raw Material | Other, cement,cinder,coal Gangue,concrete,shale,ect | Processing | Brick Molding Machine | |
| Method | Hydraulic Pressure | Automatic | Yes | |
| Capacity | 10sets/month | Place of Origin | Henan, China | |
| Brand Name | concrete block machine | Model Number | QT4-20 | |
| Voltage | 380/420/220V | Power | 23 KW | |
| Dimension(L*W*H) | 2700*1400*2700mm | Certification | ISO | |
| Warranty | 1 year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

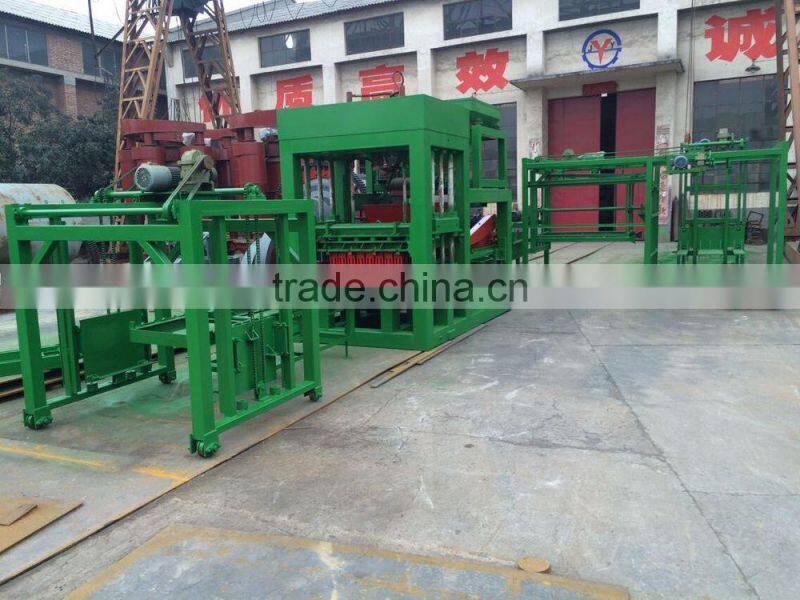

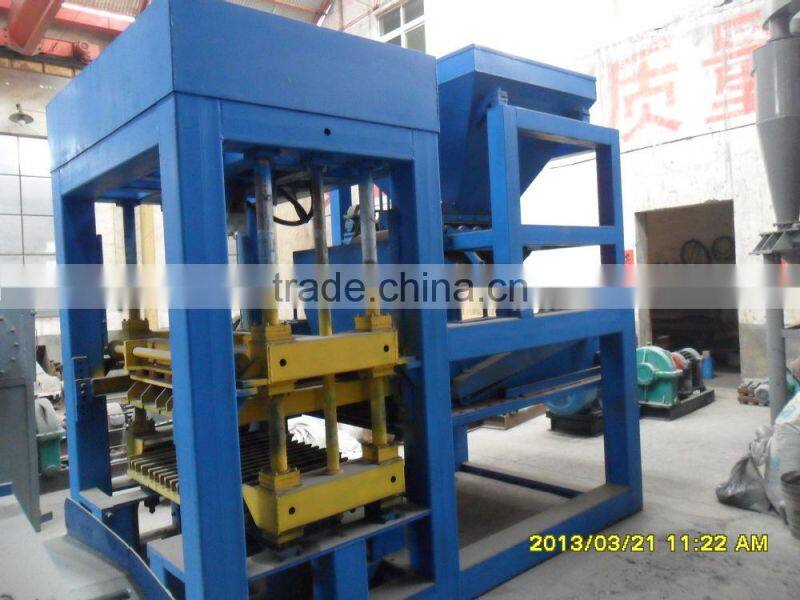

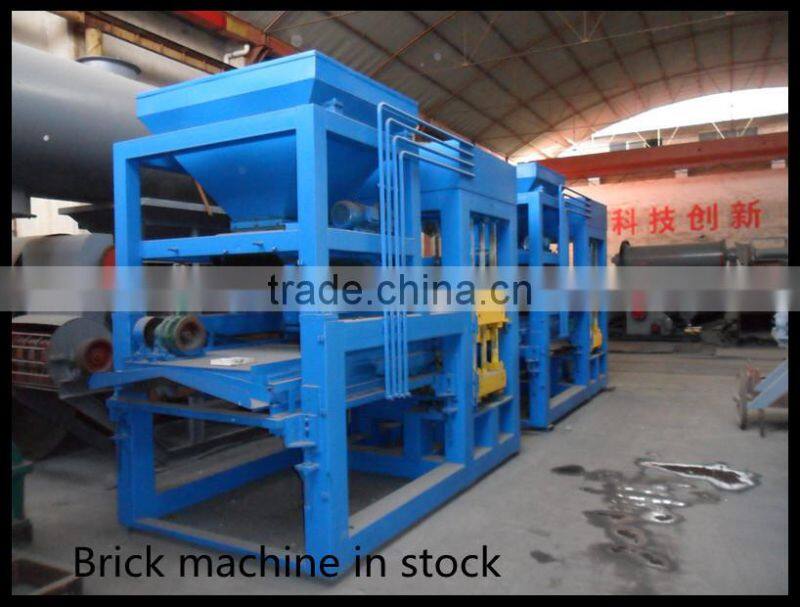

Jingying Brand hydraulic concrete block making machine and cement bricks machine
Product advantages
1. QT4-20 block making machine technical parameter Overall Dimension | 2700×1400×2700mm |
Pallet Size | 900*600*30mm |
Molding Time | 12-20s |
Weight | 4T |
Host machine power | 23 KW |
Vibration force | 120KN |
Concrete mixer | JDC350 |
Rated pressure | 31.5Mpa |
Rated voltage | 380V |
2.The Main Production Capacity
Item | Sample | Size(mm) | Pcs/mold | Pcs/hr | PCS/day |
Hollow block |
| 390*190*19000 | 4pcs | 800 | 6400 |
Porous block |
| 240*115*90 | 14pcs | 2800 | 22500 |
Solid brick |
| 240*115*90 | 28pcs | 5600 | 45000 |

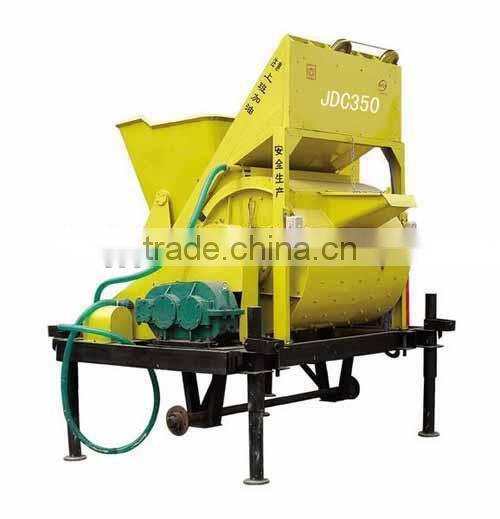

3. JDC350 Mixer technical parameter:
Item | specification | |
Discharge volume(L) | 350 | |
Loading volume(L) | 560 | |
Productivity(m3/h) | 17-21 | |
Max particle dia(mm) | 80/60 | |
Mixing Blade | Rotation(min) | 28r |
Mixing Motor | Power(kw) | 15 |
Host motor | Power(kw) | 4.5 |
Pump motor | Power(kw) | 0.55 |
Hopper Elevating Speed(m/min) | 18 | |
Size(l*W*H)(mm) | 2050*2550*2600 | |
Weight(kg) | 3200 | |
4.Supplementary information
Function |

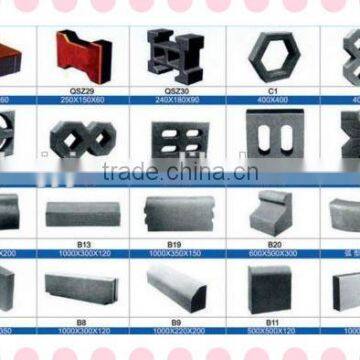

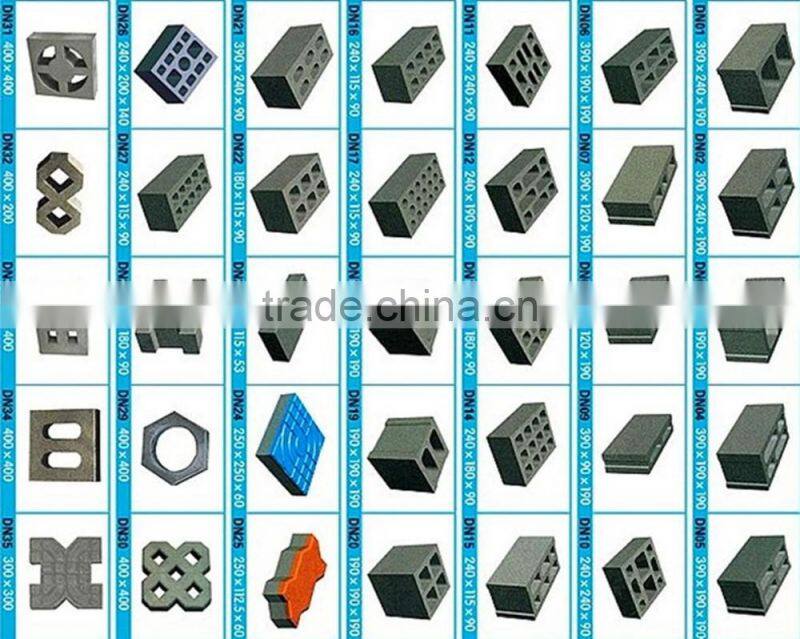

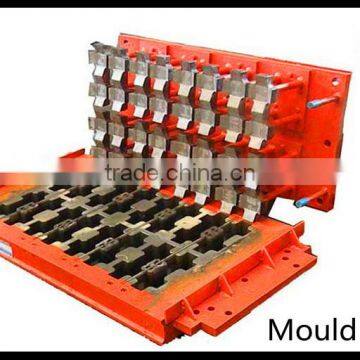

Standard bricks, blocks, perforated bricks, paving bricks etc. can be produced with various molds. |
Process |
It's manpower saving for automatic material feeding, automatic pallet conveyance, automatic leading-out and hydraulic molding |
Water and power |
* General power: 35Kw * Average power consumption: 20Kw/h * Average water consumption: 5T per day |
Environmental protection |
It confirms to the environmental protection standard with no waste water,slag and waste gas in the production process. |
Personnel quota |
6 people |
