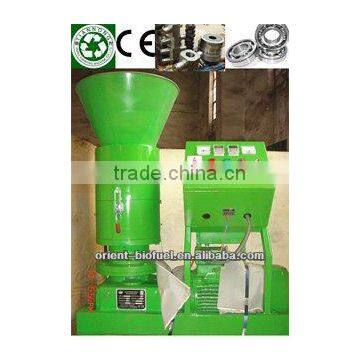

Portable small Flat die wood pellet press MZLP type-daivy chou 121115

Specifications

MZLP-Series Flat Die Wood Pellet Machine is designed for the family/farm need with lower output which includes MZLP-200 with output 50-100kg/1hour; MZLP-300 with output 150-250kg/1hour; and MZLP-400 with output 250-350kg/1hour.

Material selection: wood sawdust with humidity 14% with size 5mmx5mm.This is technic data with power , capacity,diameter of die, see it for reference:

 Features of MZLP-Series Flat Die Wood Pellet Machine on  KL-Series and PK-Series:

1. The mechanical strength of MZLP-Series Flat die wood Pellet machine is 3-4 times than our domestic KL-Series / 9PK-Series which are mainly used to make animal feedstuff, while our MZLP-Series is designed specially to make biomass/wood pellet.

2. The life of the roller and template on MZLP-Series wood pellet machine can get to 300-500 hours which is 2 times longer comparing with the domestic manufactures. The raw material of our spare parts is from 20CrMnTi or 40Cr.

The thickness of the Template will affect the quality of the pellet. When the Template is thicker, it is equal that the pelletizing process is longer, so the density of pellet will be higher, and the appearance of pellet will be smoother. And the life of the Template will be longer.

3. All the electrical spare parts of MZLP-Series wood pellet machine have CE Certificate.

4. We match the special reducer on MZLP-Series wood pellet machine which can guarantee the density and good quality of wood pellet.

5. We can make pure wood pellet without any additives and the density of wood pellet is 1.1-1.4.

PELLET STANDARDS:

Fines (fine particles)......1% maximum through a 1/8” screen

Bulk Density..................40 pound per cubic foot minimum

Ash Content..................1% maximum (Premium grade)

                   ..................3% maximum (Standard grade)

Moisture Content...........8% maximum

Heat Content.................approximately 8200 Btu per pound minimum

6. We have CE certificate on our all MZLP-Series Flat Die wood pellet machine.

7. We have the self-protection device on our MZLP-Series Flat Die wood Pellet machine, when the running temperature of pellet machine is over the set normal standard, our machine will stop automatically. It is easier to the fresh operators.

8. The Electricity Consumption of MZLP-Series Flat Die wood Pellet machine  will save 30-50% electricity.

9. The inside structure of MZLP-200 is the Roller Fixed and Template Rotating, while MZLP-300/400 is the Roller Rotating and Template fixed. So MZLP-300/400 is easier to pelletize the loose and light raw material, while MLZP-200 is easier to pelletize the hard material.

Up to now, Our Flat die wood pellet machine has sold to more than 25 European countries ,So hope for your visit , thanks, selina
