Heat Stove of Rotary Dryer-20121126

Specifications

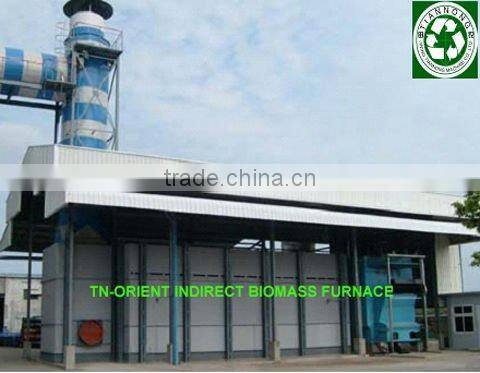

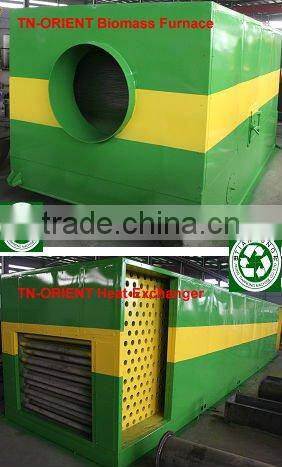

Direct or Indirect Biomass Furnace is ideal for the WSG-series rotary drum drier to supply the heating energy for drying which is equipped with the direct biomass furnace which is matched with movable grate; the screw feeder to feed the fuel automatically into the furnace, the pipes, the optional heat-exchanger, the cyclone, the fan and one-grade dust filtering.

Unique feature: using wood material, wood pellet, briquette, rice husker, coconut shell and palm shell as fuel sources.

Features: Saving energy; Environmental protection feature; Applied to all kinds of biomass fuel; Larger heating surface, quick to increase temperature and pressure.

The rotary dryer is a type of industrial dryer employed to reduce or minimize the liquid moisture content of the material. The dryer is made up of a large, rotating cylindrical tube, usually supported by steel beams. The dryer slopes slightly so that the discharge end is lower than the material feed end in order to convey the material through the dryer under gravity. Material to be dried enters the dryer, and as the dryer rotates, the material is lifted up by a series of internal fins lining the inner wall of the dryer. When the material gets high enough to roll back off the fins, it falls back down to the bottom of the dryer, passing through the hot air as it falls.

This air can either be moving toward the discharge end from the feed end (known as co-current flow), or toward the feed end from the discharge end (known as counter-current flow). The hot air can be made up of a mixture of air and combustion heat energy from a burner, in which case the dryer is called a direct heated dryer.

Alternatively, the hot air may consist of air or another (sometimes inert) heat energy that is preheated. When the air is preheated by some means where burner combustion heat air does not enter the dryer, the dryer known as an indirect-heated type. Often, indirect heated dryers are used when product contamination is a concern. In some cases, a combination of direct-indirect heated rotary dryers is also available to improve the overall efficiency.
