Professional Working Big Wood Pellet Mill MZLH420/600/800-daivy

Specifications

TN-ORIENT Bigger Biomass Pellet Machine (Ring Die) is designed for the industrial production which includes MZLH-420 with output 800-1000kg/1hour; MZLH-600 with output 1500-2500kg/1hour; and MZLH-800 with output 3500-4500kg/1hour.

Pelletizing is the process of making waste materials into solid fuel. The objects are used for burning purposes. Wood pellet can be made from any type of agro-forestry waste: groundnut shell, sugarcane bio-gases, caster shells/stalk, saw dust, coffee husk, paddy straw, sunflower stalk, cotton stalks, tobacco waste mustard stalk, jute waste, bamboo dust, tea waste, wheat straw, palm husk, soybeans husk, coir pitch barks/straws, rice husks, forestry wastes, wood chips and many other agro wastes.

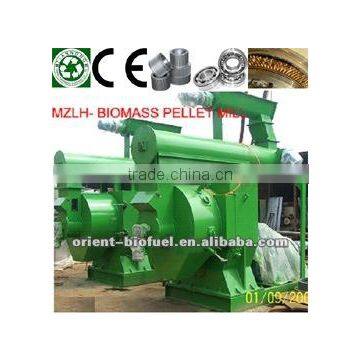

MZLH  TN-ORIENT Bigger Biomass Pellet Machine (Ring Die)   is the most important equipment, which has the following features:

MZLH-420 Biomass Pellet Machine                 MZLH-600 Biomass Pellet Machine

The lubrication system for wood pellet mill adopts the tracing and inspecting system controlled by the microcomputer. When the temperature of the bearing is over the normal temperature, the microcomputer will start the round closed Auto-Lubrication System to lubricate the bearings, which complete solved the trouble of lubricating roller depending on the operation experience. The Lubrication System is made up of the tracing and inspecting system controlled by the microcomputer, auto-lubricating system on time and compelled lubricating system by hand.

Driving Gear adopts the high precision gear transmission structure. The wear bearing is made from China Biggest Bearing Manufacturer according to our special requests. The ring die adopts the hoop fastening method, which is increasing the speed of discharge comparing with the past bolt fastening method. As a result, the capacity is 10-15% higher than the belt transmission structure.

As per the ring die and roller of the wood pellet mill, we have the fine machining with the alloyed steel, such as 20 CrMnTi and 40Cr; and stainless steel, such as 4 Cr13 and 3 Cr13. And our heating treatment is also different from the other domestic manufacturer, our carburizing treatment make the depth of hard facing to 2mm, which improve the anti-abrasion of the ring die and roller more than 10 times, it can save the production cost heavily.

                                             8Ton/1Hour Biomass Pellet Machine Line in Romania

                                             2Ton/1Hour Biomass Pellet Machine Line in Bosnia

                                                   1 Ton/1Hour Biomass Pellet Machine Line in Turkey
