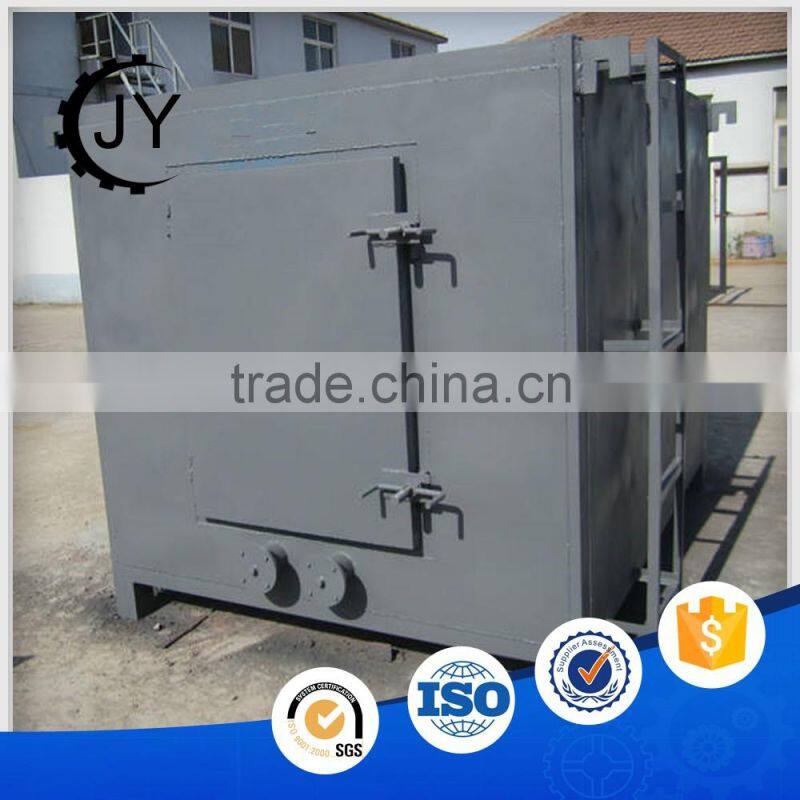

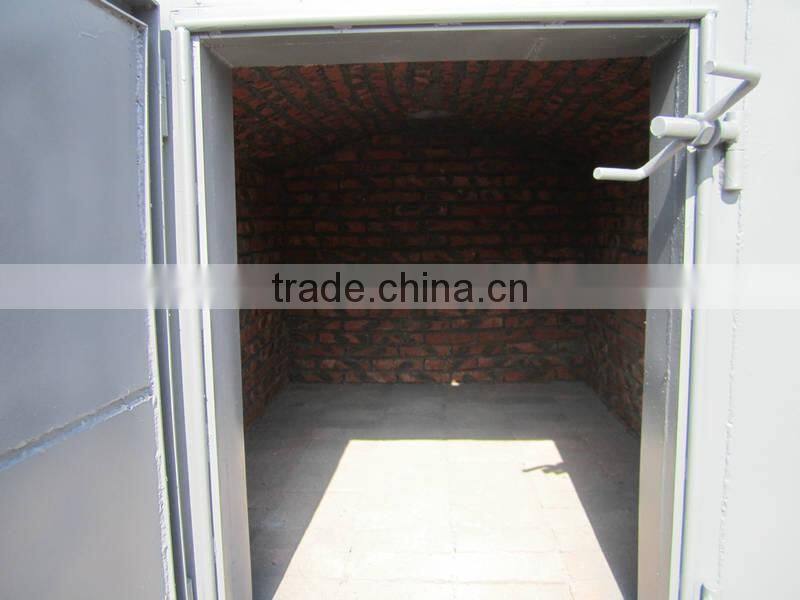

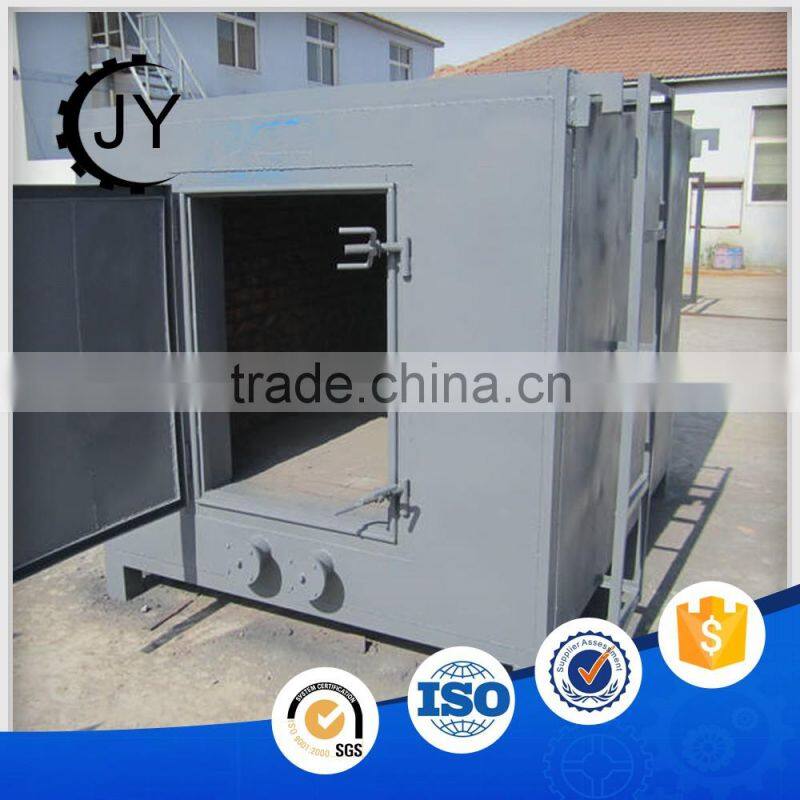

Advanced Moveable Bamboo Carbonization Furnace

Advanced Moveable Bamboo Carbonization Furnace

Dear  Customer:

Welcome to our website and hope our products will make you satisfied .

We think creatively,design bravely,manufacture precisely and loyalty to

our customers. And we have our own  We can produce the products

according to customer requirements .

     Give us a negotiate chance will yield you a surprise .

                                                                                                   Yours

                                                                                               JINGYAO

Introduction

Carbonization method, carbonization process directly determines the strength of the charcoal, calorific value and main performance index of fixed carbon content.

Carburization Process:

carburization process is actually the pyrolysis process, compressed rod in carburization furnace, without the air or into a small amount of air condition, heat decomposition, it besides get solid product of charcoal, and liquid products of wood vinegar and wood tar, gas product wood gas, etc.  moveable carbonization furnace  moveable carbonization furnace

1). Drying process: the temperature of this step is about 120-150 degree, the pyrolysis process going slowly, mainly target is drying, evaporative water, the chemical composition of the briquette is almost the same briquete.  moveable carbonization furnace  moveable carbonization furnace

2). Pre-carburization stage:in this stage, the temperature goes up to 150-270 degree, Wooden starts to break down, the comparatively unstable components such as wood hemicellulose, starts to break down and turn into carbon dioxide and carbon monoxide and other gases, also produce a small amount of acetic acid and other substances.

The two stage above is endothermic phase.

3). Carburization stage:temperature goes up to 275-450 degree, in this stage, the wooden break down very fast.

Thermal decomposition. The cellulose star to thermal decomposition (decomposition temperature 280-290 degrees), and then the lignin decomposition (temperature 350-450 degrees), generated a lot of breakdown products. In the gas, carbon dioxide and carbon monoxide to reduce gradually, and increased hydrocarbons such as methane, etc. Liquid product, contains a large amount of acetic acid, methanol and wood tar. At the same time let out a lot of heat. So this stage is known as the exothermic reaction stage.

4). Calcination stage:The temperature goes up above 450 degree, by the heating from outside to calcine the charcoal, to discharge residual volatiles in the wood, at this time the generated liquid product is very less.

 It should be pointed out that there is no obvious boundaries of four stages. Due to the temperature distribution of each part is different in the carburization furnace, the external and internal of the briquette also has a certain temperature deference, may at the same time in different stages of pyrolysis.

Production Flow Chart

About service

1. We devote to all-round service of all products from production to maintenance.

2. Our professional service includes: free training, guidance, installation, and debugging.

3. After selling, we provide the warranty of one year.

4. If you have any problems, we will try our best to help you at the first time to solve it.

Accessory Equipment

Company Advantages

1. Specialized manufactures for whole set of charcoal briquette machine and the machine made charcoal briquette

2.Our product received good feedback from all the new and old customer by reliable quality, reasonable structure, stable performance, high output, energy conservation, environmental protection, simple operation, easy installation and maintenance.

If you are new for this business, we will help you:

Many thanks for your trust; we can provide you with design scheme for complete production lines, spot inspection and operator training according to your demands and the conditions of applied spot, we can help you choose the right equipments.
