Energy Conservation High Labor Intensity Chemical Sawdust Air Flash Dryer

FOB Price

US$ 5,000 - 50,000 / Set

1 Set(Min. Order)

Port Qingdao Port
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Type	Flash Drying Equipment
Place of Origin	Shandong, China	Brand Name	JingYao
Model Number	Flash Dryer	Voltage	customized
Power(W)	customized	Dimension(LWH)	Specific Model
Weight	Specific Model	Certification	CE/ISO
Warranty	one year, 1 year	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Energy Conservation High Labor Intensity Chemical Sawdust Air Flash Dryer

Product Description

260(A)Single Layer With Two Tanks

Size(lengthwidthhigh)	92.53.1(m)
Material travel distance	18(m)
Max tube diameter	780(mm)
Minimum tube diameter	260(mm)
Main power	4(kw)
Capacity	180-250(kg)
Hot wind stove size(kg)	16009001150
How wind stove weight	1230(kg)
Total weight	1760(kg)

260(D)Three Layers With Two Tanks

Size(lengthwidthhigh)	1833.2(m)
Material travel distance	32(m)
Max tube diameter	780(mm)
Minimum tube diameter	260(mm)
Main power	5.5(kw)
Capacity	260-350(kg)
Hot wind stove size(kg)	16009001150
How wind stove weight	1230(kg)
Total weight	2300(kg)

260(B)Two Layers With Two Tanks

(Fan in the middle of the system)

Size(lengthwidthhigh)	152.53(m)
Material travel distance	33(m)
Max tube diameter	780(mm)
Minimum tube diameter	260(mm)
Main power	5.5(kw)
Capacity	200-300(kg)
Hot wind stove size(kg)	16009001150
How wind stove weight	1230(kg)
Total weight	2150(kg)

260(C)Electric Dryer of Two Layers With Two Tanks(Fan at the end of the system)

Size(lengthwidthhigh)	152.53.5(m)
Material travel distance	35(m)
Max tube diameter	780(mm)
Minimum tube diameter	260(mm)
Main power	5.5(kw)
Capacity	200-300(kg)
Hot wind stove size(kg)	16009001150
How wind stove weight	350(kg)
Total weight	1360(kg)

300(A)One Layer With Three Tanks

Size(lengthwidthhigh)	162.53.2(m)
Material travel distance	26(m)
Max tube diameter	900(mm)
Minimum tube diameter	300(mm)
Main power	7.5-11(kw)
Capacity	400-600(kg)
Hot wind stove size(kg)	200010001300
How wind stove weight	1450(kg)
Total weight	2660(kg)

300(B)Three Layers(Three pass)

Size(lengthwidthhigh)	2033.2(m)
Material travel distance	33(m)
Max tube diameter	900(mm)
Minimum tube diameter	300(mm)
Main power	7.5(kw)
Capacity	400-500(kg)
Hot wind stove size(kg)	200010001300
How wind stove weight	1450(kg)
Total weight	2550(kg)

350 Three Layers(Three pass)

Size(lengthwidthhigh)	2233.3(m)
Material travel distance	35(m)
Max tube diameter	1050(mm)
Minimum tube diameter	350(mm)
Main power	11(kw)
Capacity	600-800(kg)
Hot wind stove size(kg)	210010201330
How wind stove weight	1750(kg)
Total weight	3460(kg)

450

Size(lengthwidthhigh)	2734.3(m)
Material travel distance	45(m)
Max tube diameter	1350(mm)
Minimum tube diameter	450(mm)
Main power	15-18.5(kw)
Capacity	800-1000(kg)
Hot wind stove size(kg)	235011001430
How wind stove weight	1950(kg)
Total weight	5120(kg)

♦ Feature

1. Drying time is short, high efficient

2. Large capacity

3. Easy to operate, labor intensity is high

4. Easy to clean

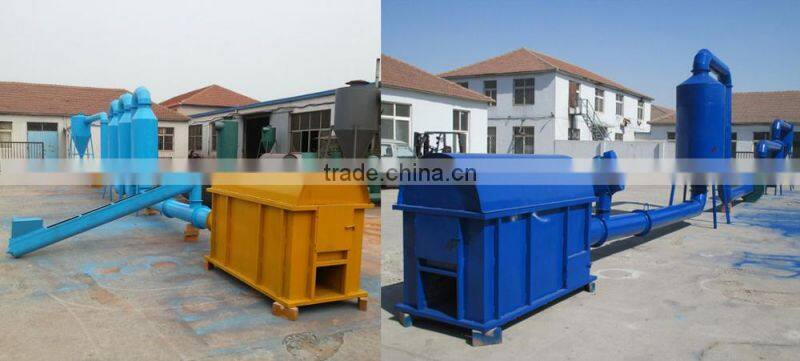

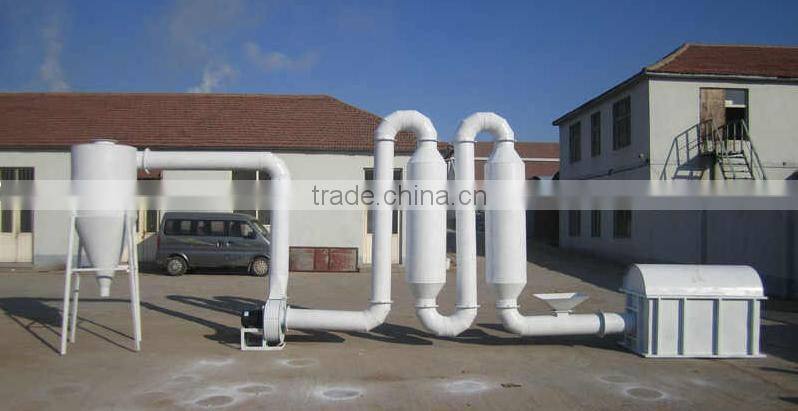

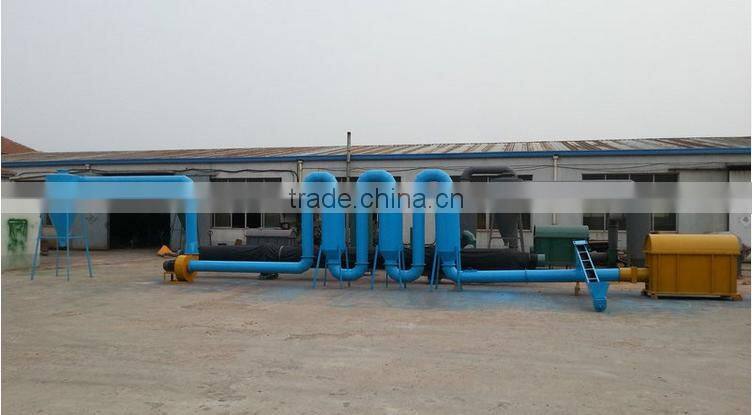

♦ Side View

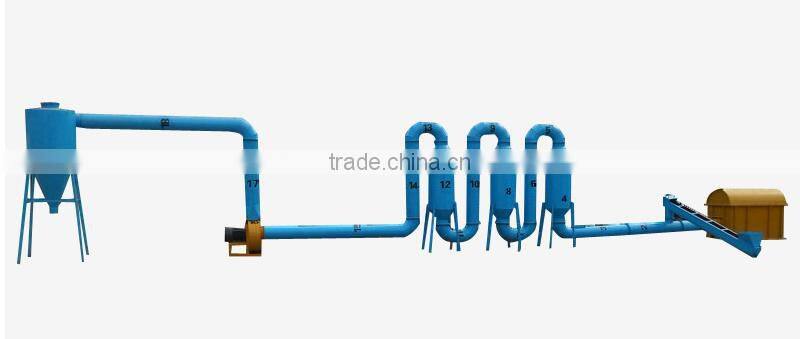

Flow Diagram
