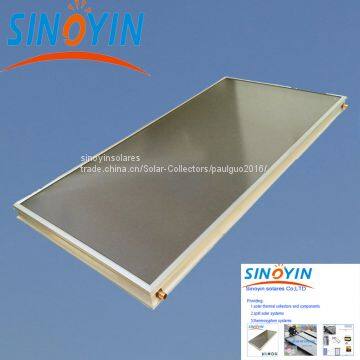

Solar keymark solar flat collector of white frame,selective coating

FOB Price

USD $110 - $135 / Piece

1 Piece(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Collectors Specifications

	FP-GV2.0-80-LT	FP-GV2.0-80-HG

Dimensions	2000X1000X80mm	2000X1000X80mm
Casing material	aluminum alloy 6063-T5	aluminum alloy 6063-T5
Gross area	2.0m2	2.0m2
Aperture area	1.823m2	1.823m2
Absorber coating	magnetron sputtering coating,thickness0.4mm;	chromeplate coating ,thickness0.4mm;
Absorptance	≥95%	≥93%
Emittance	≤5%	≤10%
Welding Method	laser welding	laser welding
Heat carrier volume	1.2L	1.2L
Head tube	diameter:φ22mm,thickness:δ0.6mm	diameter:φ22mm,thickness:δ0.6mm
Branch tube	diameter:φ8mm,thickness:δ0.6	diameter:φ8mm,thickness:δ0.6
Weight	34Kg	34Kg
Insulation material	fiber glass,thickness,30mm	fiber glass,thickness,30mm
Glass cover	low iron tempered,thickness:3.2	low iron tempered,thickness:3.2
Efficiency(η)	0.77	0.75
Heat loss	4.5W/m2.℃	4.5W/m2.℃
Stagnation temperature	180℃	165℃
test pressure	1.2Mpa	1.2Mpa
Normal pressure	0.7Mpa	0.7Mpa
Recommend flow rate	70-80L/h	70-80L/h
Recommend connecting number	≤8	≤8
Packaging	Corrugated carton	Corrugated carton
Warranty period	5 years	5 years
20 feet container num:	140Pcs	140Pcs
40 feet container num:	312Pcs	312Pcs
