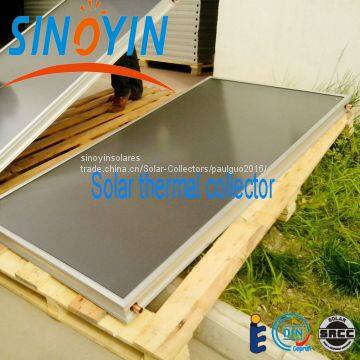

High Efficiency Solar Thermal Collector of 2.5sqm,black Framegrid Absorber

FOB Price

US$ 130 - 145 / Piece

1 Piece(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Collectors Specifications

	FP-GV2.5-80-LT	FP-GV2.5-80-HG

Dimensions	2000X1250X80mm	2000X1250X80mm
Casing material	aluminum alloy 6063-T5	aluminum alloy 6063-T5
Gross area	2.5m2	2.5m2
Aperture area	2.31m2	2.31m2
Absorber coating	magnetron sputtering coating,thickness0.4mm;	chromeplate coating ,thickness0.4mm;
Absorptance	≥95%	≥93%
Emittance	≤5%	≤10%
Welding Method	laser welding	laser welding
Heat carrier volume	1.8L	1.8L
Head tube	diameter:φ22mm,thickness:δ0.6mm	diameter:φ22mm,thickness:δ0.6mm
Branch tube	diameter:φ8mm,thickness:δ0.6	diameter:φ8mm,thickness:δ0.6
Weight	41Kg	41Kg
Insulation material	fiber glass,thickness,30mm	fiber glass,thickness,30mm
Glass cover	low iron tempered,thickness:3.2	low iron tempered,thickness:3.2
Efficiency(η)	0.77	0.75
Heat loss	4.5W/m2.℃	4.5W/m2.℃
Stagnation temperature	180℃	165℃
test pressure	1.2Mpa	1.2Mpa
Normal pressure	0.7Mpa	0.7Mpa
Recommend flow rate	70-80L/h	70-80L/h
Recommend connecting number	≤8	≤8
Packaging	Corrugated carton	Corrugated carton
Warranty period	5 years	5 years

Product details show

Product details show:

Advantages

Advantages:

Office show

Office show:

manufacturing shop

Mamufacturing shop:

Certifications:

Certifications:

Packaging

Packaging:

Product Uses

Product uses:
