Maganese Steel Vibrating Screening Machine

maganese steel vibrating screening machine

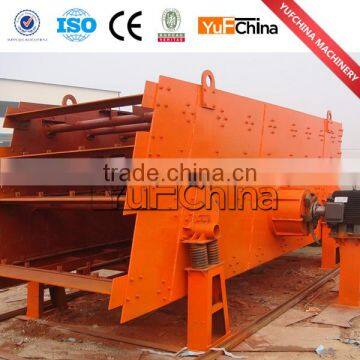

Introduction of circle Vibrating Screen machine

Vibrating screens are mainly used in coal dressing, metallurgy, mine, power station, water conservancy project, building industry, light industry and chemical industry,etc. The mining industry are aluminate powder, lead, copper, mineral ore, MnO2, refractory material, kaolin, limestone, silica sand, and so on. It is an efficient screening machine for the classification of bulk material such as coal, minerals, coke, etc.    2YK1230 vibrating screening machine

Working Principle of  circle Vibrating Screen  machine

Vibrating screen is mainly composed of screen box, screen, vibrator, damping spring, and so on. Motor drives the exciter rotation by the V-belt. The screen box can be vibrated due to the influence of centrifugal force from the exciter. The different amplitudes can be obtained by changing the eccentric exciter.    2YK1230 vibrating screening machine

Advantages of circle Vibrating Screen machine

1. Due to the vibrating of screen box, it can reduce the phenomenon that the materials block the screen mesh. So the screening efficiency can be improved.

2. Simple structure, easy maintenance

3. Long using life, uneasy blocked

4. Little noise, low investment

Maintenance of circle Vibrating Screen machine

The machine starts work under no material condition. Feed the machine when the screen goes well. Stop feeding materials before stopping the vibrating screen and discharging the materials from the screen. Observe the vibrating screen when it is working, stop and check the machine when there is something wrong.    2YK1230 vibrating screening machine

circle Vibrating screen machine operating principle

It adjusts the amplitude by tube-shaped violent vibration screen of eccentric shaft and eccentric blocks. The body moves like a circle, in order to make the materials screened.    2YK1230 vibrating screening machine

Technical parameter of circle Vibrating screen machine:

Participate processing of circle vibrating screen machine:

copper beneficiation plant

magnetite beneficiation plant

circle vibrating screen machine

circle vibrating screen machine

circle vibrating screen machine

....
