Home > Products > Environmental Equipment > Shaftless trommel
Shaftless trommel
USD $90,000 - $95,000
/ Set
1 Set(Min.Order)
- 2 Set / Sets per Month
- Qingdao
You May Like
Product Details
| Condition | New | Type | Circular | |
| Application | Other, as the customer | Brand Name | LMM | |
| Model Number | GTS | Voltage | 60HZ/3PH,220-440V | |
| Power(W) | 24kw | Dimension(L*W*H) | 5000MMX14000MMX3000MM | |
| Weight | 25ton | Warranty | one year | |
| After-sales Service Provided | Overseas third-party support available |
Product Description

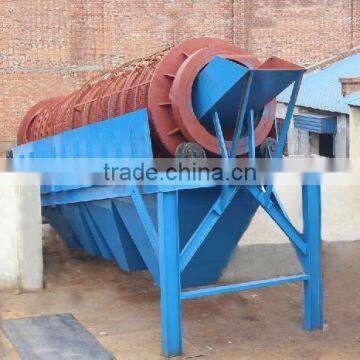

Rotary Drum/Trommel Vibrating Screen Machine
Screen trommel is consist of five parts as drum, frame, hopper, reducer and motor. After the broken stone into the drum, on the one hand, materials being screened along with the rotation of drum, on the other hand, the bigger materials flow forward along the direction of slope and be separated by the screen with different number of meshes. The different materials fall into different hopper and then be sent to different finished product stacks by manpower or belt conveyor.
Basic Information
1. Functions:configured for classification, screening, grading
2. Type: open type, closed type
3. Classification: shaft rotary screen, shaftless rotary screen
4. Construction: carbon steel, stainless steel
5.Applications Scope: widely used in chemical, coal, construction, gold mine, plastic, quarry, recycling, metallurgy, mineral-selecting industries, etc.
Working Principle
Feeding into the drum, material is lifted up by the rotation and aerated as it falls back down. This action is repeated with each revolution along the length of the drum. The finer material passes through the screen openings while the larger material tumbles towards its eventual exit at the rear of the drum.
Application
Rotary Drum/Trommel Vibrating Screen Machine used to separate materials by size, for example, separating the biodegradable fraction of mixed municipal waste or separating different sizes of mulch or crushed stone. Production rates can be vary from 20 to 30 yards an hour to several hundred yards of material an hour based on number of factors described in this article.
Self-cleaning device
There is one screen deck(we call it cleaning deck) with larger screen mesh under the first floor of screen deck,the cleaning deck is divided into many sections by some plates,there are some flexible balls in each section. When the gyratory screen is runing,these flexible balls will move along the motion tract and they will jump up and down after hitting the plates or the other balls. Then it will clean the first screen deck or break some large size material by its hitting.
Technical parameters
Roller inclination 5-10limit
Roller speed 10-16r/min
Equipment Dimensions 14000x3000x5000
Contact Us
- Liaoning Mineral & Metallurgy Group Co., Ltd.
- Contact nameNina Lian Chat Now
- Phone86-411-84174804,84174814
- Address1312-1310 ROOM,NO.35,RENMIN ROAD, ZHONGSHAN DISTRICT DALIAN CHINA, Dalian, Liaoning
