Home > Products > New Products > Camda 120KW Biogas/natural Gas Generator With CHP

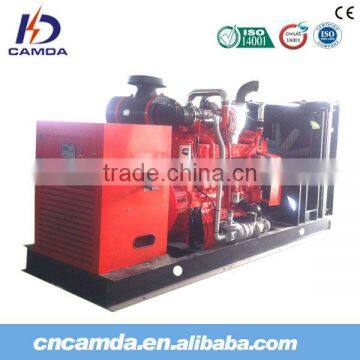

Camda 120KW Biogas/natural Gas Generator With CHP

FOB Price

US$ 28,400 - 28,400 / Set

1 Set(Min. Order)

Port Shenzhen
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	Camda
Model Number	KDGH120-G	Output Type	AC Three Phase
Speed	1500/1800Rpm	Frequency	50/60HZ
Rated Power	120KW	Rated Voltage	415/400/380v,240/230/220v
Rated Current	Varies according to voltage

Product Description

Camda 120KW biogas / natural gas generator with CE and ISO certificate

Product Description

Specification of genset:

Gas genset data
Genset model	KDGH80-G
Prime power (kW/KVA)	120/150
Continuous power (KW/KVA)	100/125
Connection (V)	3 Phases 4 Lines
Power factor cosfi	0.8 lagging
Frequency (Hz)	50
Rated speed (RPM)	1500
Open type Genset Overall Dimension (mm)	2950x1100x1/1800
Soundproof type Genset Dimension (mm)	4600x1600x2200
Net weight without canopy(kg)	2525

Specification of engine:

Gas Engine Data
Model	HGN14
Brand	CAMDA
Type	4 stroke, water-cooling, dry cylinder liner, electronic-control ignition system, pre-mixed perfect mixed burning
Cylinders& Arrangement	6L
BoreXStroke(mm)	140X152
Displacement(L)	14
Compression ratio	11:1
Aspiration	Natural
Cooling Method	Radiator fan water cooling
Governor type(speed regulating type)	Electronic governing
Starting method	Electric, 24 V motor
The lowest gas consumption(m3/kw.h)	0.3 for natural gas/0.6 for biogas
Idling speed(r/min)	700
Oil recommended	SAE 15W-40 CF4 or above
Oil consumption	≤1.0g/kW.h

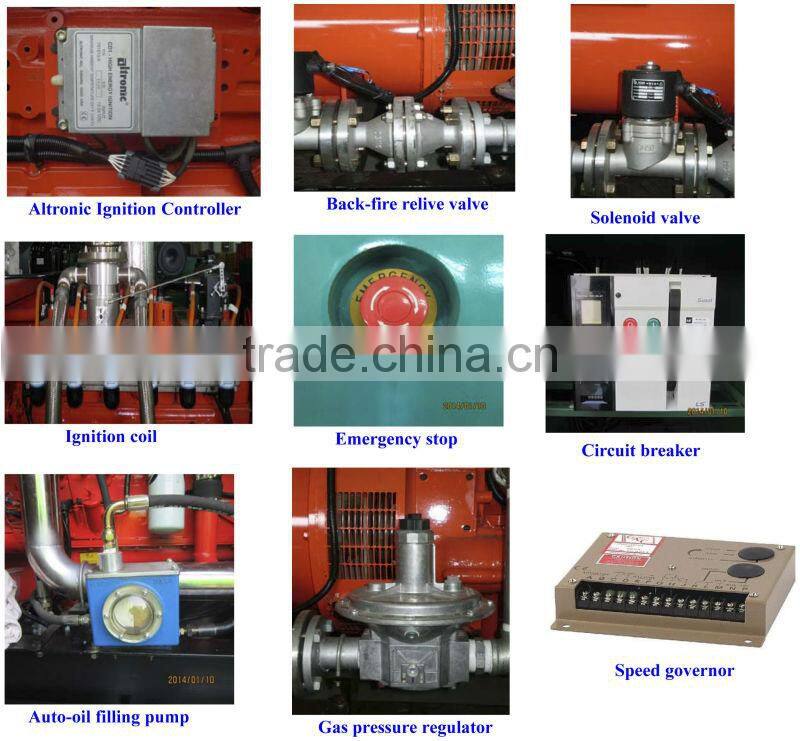

Standard Scope of Supply:

1.Brand new gas engine, 90% parts include engine body , crank shaft, cam shaft, piston, cylinder head, etc made by DCEC (Cummins Joint Venture in China) with best quality

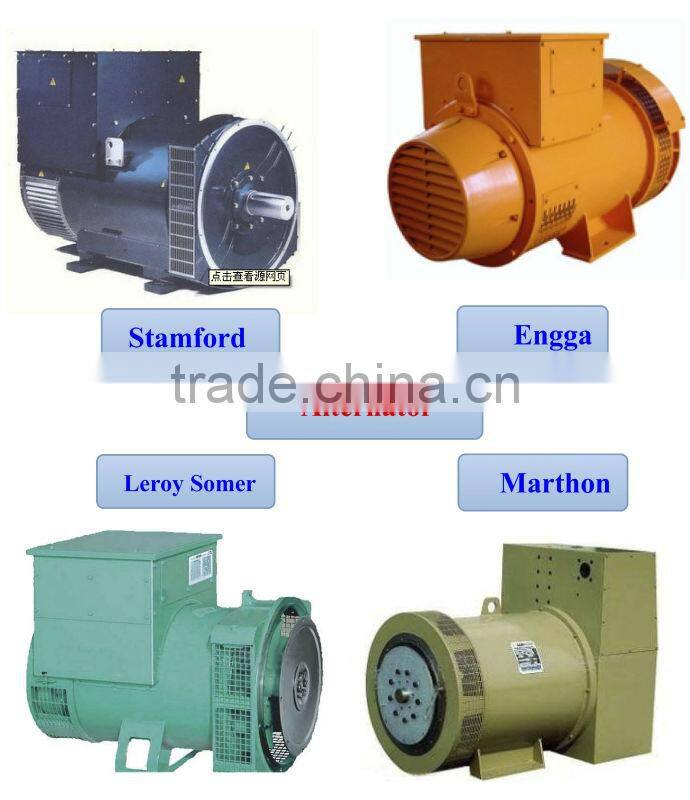

2. Brand new brushless France Leroy Somer alternator

3. Rating: 3 phases 4 lines. 400/230V, 50 HZ , 1500rpm, 0.8PF, IP22-23, Insulation class H

4. Radiator for 40°C/50°C ambient temperature

5. Ignition system adopted USA ALTRONIC

6. Emergency stop mounted

7. Battery,Battery cable and Battery charger

8. Standard tool box

9. Standard Accessory for installation (include bellows,silencer,flange,asbestos pad,Anti-rust water,screw )

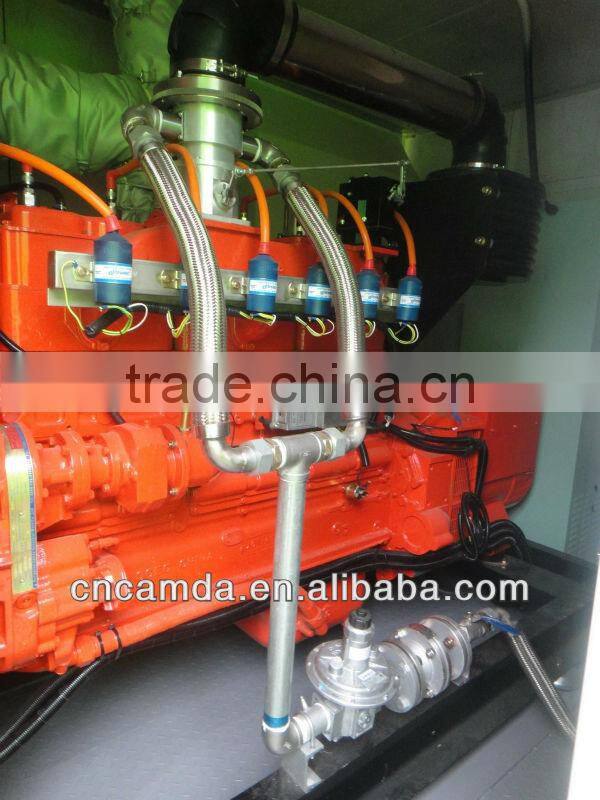

10. Gas Train include Regulator valve,Electromagnetic Valve, Fire arrestor,Ball Valve (Chinese brand)

Details:

Packaging & Shipping

Plastic packaging or wooden case package.

Delivery port: Shenzhen or Guangzhou port in China

Destination port: Any port in the world
