Home > Products > New Products > Camda 150KW Biogas/natural Gas Generator

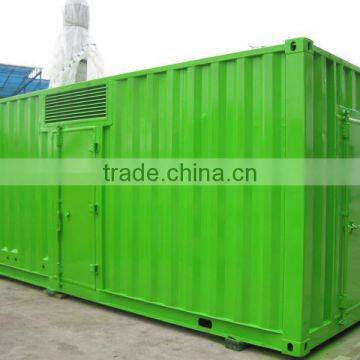

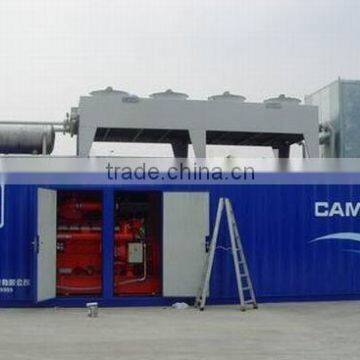

Camda 150KW Biogas/natural Gas Generator

FOB Price

US$ 35,200 - 35,200 / Set

1 Set(Min. Order)

Port Shenzhen
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	Camda
Model Number	KDGH150-G	Output Type	AC Three Phase
Speed	1500/1800Rpm	Frequency	50/60HZ
Rated Power	150KW	Rated Voltage	415/400/380v,240/230/220v
Rated Current	Varies according to voltage

Product Description

Camda 150KW biogas / natural gas generator with CE and ISO certificate

Product Description

Specification of genset:

Gas genset data
Genset model	KDGH80-G
Prime power (kW/KVA)	150/188
Continuous power (KW/KVA)	150/188
Connection (V)	3 Phases 4 Lines
Power factor cosfi	0.8 lagging
Frequency (Hz)	50
Rated speed (RPM)	1500
Open type Genset Overall Dimension (mm)	3150x1100x1800
Soundproof type Genset Dimension (mm)	4600x1600x2200
Net weight without canopy(kg)	2825

Specification of engine:

Gas Engine Data
Model	HGNT14
Brand	CAMDA
Type	4 stroke, water-cooling, dry cylinder liner, electronic-control ignition system, pre-mixed perfect mixed burning
Cylinders& Arrangement	6L
BoreXStroke(mm)	140X152
Displacement(L)	14
Compression ratio	11:1
Aspiration	Natural
Cooling Method	Radiator fan water cooling
Governor type(speed regulating type)	Electronic governing
Starting method	Electric, 24 V motor
The lowest gas consumption(m3/kw.h)	0.3 for natural gas/0.6 for biogas
Idling speed(r/min)	700
Oil recommended	SAE 15W-40 CF4 or above
Oil consumption	≤1.0g/kW.h

Standard Scope of Supply:

1.Brand new gas engine, 90% parts include engine body , crank shaft, cam shaft, piston, cylinder head, etc made by DCEC (Cummins Joint Venture in China) with best quality

2. Brand new brushless France Leroy Somer alternator

3. Rating: 3 phases 4 lines. 400/230V, 50 HZ , 1500rpm, 0.8PF, IP22-23, Insulation class H

4. Radiator for 40°C/50°C ambient temperature

5. Ignition system adopted USA ALTRONIC

6. Emergency stop mounted

7. Battery,Battery cable and Battery charger

8. Standard tool box

9. Standard Accessory for installation (include bellows,silencer,flange,asbestos pad,Anti-rust water,screw )

10. Gas Train include Regulator valve,Electromagnetic Valve, Fire arrestor,Ball Valve (Chinese brand)

Details:

Packaging & Shipping

Plastic packaging or wooden case package.

Delivery port: Shenzhen or Guangzhou port in China

Destination port: Any port in the world
