Home > Products > Pre-treatment System > Biomass purifying unit/biogas treatment system/biomass scrubber/methane gas purifier
Biomass purifying unit/biogas treatment system/biomass scrubber/methane gas purifier
- FOB Guangzhou China
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Good Quality Biogas Purification System With Sale Price
-
Methane Gas Purifying System/Biomass Scrubber/Methane Purifier/Biomass Gasification System
-
Sell Deepsea Control Module
-
Camda biogas scrubber/methane gas scrubber/sulphure remover
-
Camda biogas purification system for generator
-
ISO CE approved OEM Factory price silent type diesel generator- set with canopy
Product Details
| Place of Origin | Guangdong, China | Brand Name | Camda | |
| Model Number | KDCL50 | Output Type | AC Three Phase | |
| Speed | 1500RPM/1800RPM | Frequency | 50HZ/60HZ | |
| Rated Power | 20KW-250KW | Rated Voltage | 220V-415V, can adjust | |
| Rated Current | 40A-600A |
Product Description
Specifications
Camda biomass purifying unit are suitable for 20KW-500KW biomass generator. Good quality with competitive price.Camda biomass purifying unit/biogas treatment system/biomass scrubber/methane gas purifier are suitable for 20KW-500KW biomass generator sets
Application field and Environment

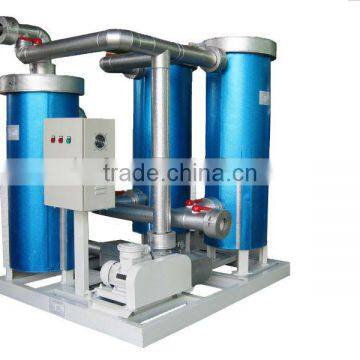

The skid-mounted biogas pre-treatment system adopts the dry desulfurization system which is applicable for small industrial devices whose H2S is less than 2000ppm. The biggest skid-mounted pre-treatment system can deal with 300Nm3/h biogas and we suggest it to be used in farmland which can equipped with CHP system. In the industrial waste water biogas project, if the devices has to run long time in a day, the H2S is high and has to synchronize with the nation grid, the biogas dry desulfurization system has to be designed specifically.
The working area ambient temperature should be in the range of 0 ~ 50 °C due to the drained water from the pre-treatment. If there is any underground sewage wells, the system has to anti-freezing and anti-cracking. This system is better to be installed in a well-ventilated room.
| Biomass Treatment System Specifications | |
| KDCL-50 series Biomass Pre-treatment System | |
| 1. Main Specificstions | |
| Model | KDCL-50-WQ |
| The suitable genset power | 20KW-50KW |
| Dimension | 2000×1600×2160 (mm) |
| Weight | 2000kg |
| Gas flow | 40~80Nm3/hr |
| Working pressure | 4~40KPa |
| Desulfurizer amount | 2×200kg |
| The changing time of desulfurizer | 1500 hours |
| Parts per million after purifying | 200ppm |
| The designed lifetime | 15years |
| 2. The Main Equipment | |
| 1. Name | Desulfurizing tower |
| Qty | 2 unit |
| Model | KDTL-250-G |
| Specificstions | Φ500×1880 |
| Function | Desulfurization |
| 2. Name | Separator |
| Qty | 1unit |
| Model | KDFC-200-G |
| Function | 1. Gas buffter; 2. De-Dust |
| 3. Name | Water condenser |
| Qty | 1unit |
| Model | KDYS-20-G |
| Function | De-water before desulfurizing tower |
| 4. Name | Blower |
| Qty | 1unit |
| Model | NSR50-50A |
| Specificstions | 1.1KW |
| Function | Increase pressure and steady pressure |
| 3. The main function of this system | |
| 1. Desulfurization | |
| 2. De-dust | |
| 3. De-water | |
| 4. Increase pressure | |
| 5. Stabilize pressure | |
| 6. Change desulfurizer without stopping genset | |
