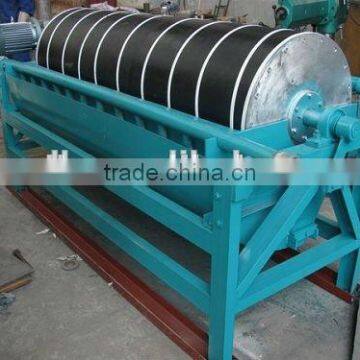

Magnetite Iron Ore, Gold, Lead Zinc Magnetic Separator Machine widely used for Conveyor Belts in South Africa

Specifications

      Magnetite Iron Ore, Gold, Lead Zinc Magnetic Separator Machine widely used for Conveyor Belts in South Africa

Introduction:  magnetic separator  is usually used for sorting the fine-grained strong magnetic minerals, or removing strong magnetic minerals from non-magnetic minerals. With a deep magnetic field, the machine can make a continuous row of ore feeding and discharge. It also has enough working clearance and high processing capabilities.

Features: 1. The magnetic system adopts quality ferrite material and NdFeB magnet. 2. The average magnetic induction of the drum surface is about 100 ~ 600 mT. 3. Downstream tank, half upstream tank,upstream tank or double-drum type can be available. 4. Simple structure, large handling capacity, convenient operation and easy maintenance.

Working principle: When the ore pulp folw into the magnetic field, the strong magnetic minerals are adsorbed on the surface of the drum. The weak magnetic and non-magnetic minerals are cast off and discharged, while the strong magnetic minerals on the surface of the drum rotate with the drum and will be brought out of magnetic field to complete the sorting operation.

Guide for Model Selection:The drum can be equipped with three kinds of tanks. That is downstream tank (Series CTS), upstream tank (Series CTN) and half upstream tank (Series CTB). The downstream tank (Series CTS) is applicable to rougher flotation and concentration of ore with size: 0~10mm. The upstream tank (Series CTN) is applicable to rougher flotation and concentration of ore with size: 0~0.6mm and the recovery of heavy-medium in coal preparation industry.  The half upstream tank (Series CTB) is applicable to rougher flotation and concentration of ore with size: 0~1mm.

      technical parameters
