Baoding Fengba Modern Agricultural Facility Co., Ltd.: Baoding, Hebei, China; Main products: Drip Irrigation Tape/Pipe, PE Pipe, Drip Irrigation Tape/Pipe Production Line

Home > Products > Production line for drip tape and drip pipe > agricultural farm irrigation drip tape Plastic Extruders

agricultural farm irrigation drip tape Plastic Extruders

FOB Price

USD $160,000 - $180,000 / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Application	Granules
Plastic Processed	PE	Screw Design	Double-screw
Automatic Grade	full automatic	Place of Origin	Hebei, China
Brand Name	fengba	Model Number	fengba
Voltage	380V	Power(W)	85KW
Dimension(LWH)	302.52	Weight	4tons
Certification	ISO9001 certification	After-sales Service Provided	Engineers available to service machinery overseas

Technical Specification:

No.	Item	Technical parameter
1	Production speed	80-150meters/minute
2	Pipe Diameter	16mm
3	Pipe thickness	0.127mm-0.60mm
4	Dripper distance	100mm-1000mm
5	No. of Extruders	3 sets
6	Main Extruder	65mmx 33/1
	Continuous drippers Extruder	45mmx 30/1
	Double line Extruder	25mmx 15/1
7	Haul-off speed	200 meters/minute
8	Perforating Speed	700 holes/minute
9	Perforation	Mechanical
10	Winding speed	150meters/minute
11	Winding method	Automatic
12	Winding motor	Servo motor
13	Water consumption	Circulating water system
14	Installation power	120KW
15	Dimension (LWH)	L30mW2.5mH2m

Equiment features:

The whole production line is controlled by computer, steady running and easily operated.
The dripper feeding, filtering, conveyance, storage, and inserting cooperate simultaneity and harmoniously. The drippers are inserted and adhered to the drip tape in an exact way.
The extruder’s single screw, extruder head, and tape mould are uniquely designed with special treatment and advanced technology. The melted raw material is well-proportioned, the tape surface is smooth, and the tape diameter steady.
The vacuum calibration tank and water-cooling channel are made of stainless steel. The vacuum in the calibration tank is always stable in line with production speed.
The dryer at the end of the water-cooling channel gets away water from the tape.
The haul-off machine, steady and noiseless, functions with frequency transformer. The haul-off speed can be adjusted with the production speed.
The dripper holes are punched mechanically with PLC control, accompanied by residue-collection recyclable system.
Two-position automatic roll-winding machine keeps the machine always running. The machine can produce different roll length of drip tape. There will be an alarm when one roll is finished.

When the machine is started, the magnetic-heating saves power and time by 50%.

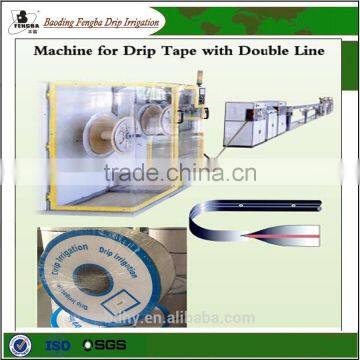

Production line photos:

Factory:

Guarantee

We guarantee that all of our Drip Irrigation System is made of New PE material.

4% of Drip Irrigation Tape from each lot will be completely tested as the condition in the open field.

There are 1 meter sample from each roll be kept in our warehouse for quality tracking.

We guarantee we will replace all the bad quality products from customer.
