Home > Products > Production line for drip tape and drip pipe > Agriculture Continue Drip Irrigation Tube Production Line/Machine
Agriculture Continue Drip Irrigation Tube Production Line/Machine
- 12 Set / Sets per Month
- xinggang/qingdao/shanghai/ningbo
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Agricultural water-saving inline flat dripper irrigation tape machine
-
drip irrigation wire line manufacturer
-
Drip Irrigation Water-saving Equipment
-
drip irrigation watering tape plastic extruder machines
-
drip irrigation water hose melt flow tape making machine
-
DRIP IRRIGATION TUBE TAPE TYPE PRODUCTION LINE
Product Details
Condition | New | Application | Pipe | |
Plastic Processed | PE | Screw Design | Double-screw | |
Automatic Grade | fully automatic | Place of Origin | Hebei, China | |
Brand Name | FENGBA | Model Number | PIPE EXTRUSION LINE | |
Voltage | 380V | Power(W) | 110KW | |
Dimension(L*W*H) | L30M*W2.5M*H2M | Weight | 4tons | |
Certification | ISO9001:2008 | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Agriculture Continue Drip Irrigation Tube Production Line/Machine
No. | Item | Standard 2 |
1 | Production speed | 30-50meters/minute |
2 | Diameter of final product | 12mm, 16mm,20mm |
3 | Wall thickness | 0.4mm-1.2mm |
4 | Dripper distance | 200mm-2000mm |
5 | No. of Extruders | 2 |
6 | Main Extruder specification | 65mmx 33/1 |
7 | Co-extruder specification | 25mmx15/1 |
8 | Dripper filtering speed | 300 pieces/minute |
9 | Dripper inserting speed | 300 pieces/minute |
10 | Haul-off speed | 20-100 meters/minute |
11 | Perforating Speed | 60-180 times/minute |
12 | Perforation | Servo system |
13 | Winding speed | 10-100 meters/minute |
14 | Winding method | Automatic two-position turning |
15 | Winding motor | Servo motor |
16 | Water consumption | Circulating water system |
17 | Air consumption | 0.9 m³/min |
18 | Installation power | 85KW |
19 | Power consumption | 30KW |
20 | Dimension (L*W*H) | 30m x 2.5mx 2m |
21 | Power supply | Voltage: 380V 50 Hz Three phase five wire 24V DC |

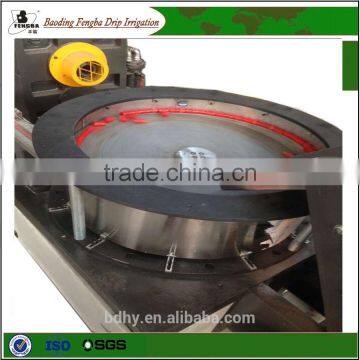

1 | Round dripper selection system | 6 | Servo punching machine |
2 | Flat Dripper inserting system | 7 | Haul off machine |
3 |
Extruder | 8 |
Power and controlling cabinet |
4 | Vacuum calibration tank | 9 | Two-position automatic winding machine |
5 | Second water cooling | 10 | Touch-screen |
Drip tubing Production line photos:
Drip tubing products:
prefessional Drip Irrigation System factory
1. With 20 years experience in producing drip irrigation products .
2. We have own research and development equipment, so our products' prices are very competitive.
3. We can ensure the quality, because there are many kinds of testing machines and strict testing process. For the dripper, we also use the new material.
4. We have very good and comprehensive after-sales service
5. Our high quality but low prices of products have gained market and public praise from domestic and overseas clients.
Main Market
South East Asia, Middle East, Middle Asia, North Africa, Russia, Poland, South America etc.
Quality Warranty of drip irrigation System
1. We send the same quantity products free or send payment back once clients find problem when get goods.
2. We will reply you within a workday and come up with solutions within 5 workdays when we receive your claim
1.OEM is accepted
2.Special design is accepted.
3. Technical support and solution by the engineer team.
4.Test equipment available (Raw material test, during production inspection,sample inspection)
5.quality tracking&service
6.Full range of irrigation product for your choice.
7.Accept sample order.
8.Good after-sales service.
9.24 hours service,we are here,waiting for you.
Contact Us
- Baoding Fengba Modern Agricultural Facility Co., Ltd.
- Contact nameXiaoxia Qiao Chat Now
- Phone86-312-7072767
- AddressManCheng Industrial Development District, Baoding, Hebei
