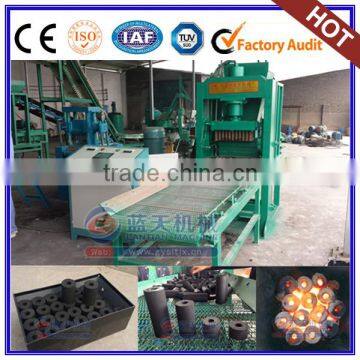

Cylinder tablet press machine charcoal fines briquetting machine

Cylinder tablet press machine charcoal fines briquetting machine

Product line

(1) Carbonizing stove:If your material is not the charcoal,you need to carbonized the materials into charcoal first.

(2) Crusher: Crush charcoal into dust ,less than 1 mm.
(3) Mixer: Mix charcoal dust with natural binder evenly.
(4) Tablet press machine: Make the charcoal dust into any shape you want.
(5) Dryer: Dry up the final briquettes till their moisture less than 5%.

(1).Multi-usage, fully meet the needs of society, maximum for users reduce the investment risk.
(2).Main body adopts frame type structure, high quality plates welded together, has the advantages of maintenance convenient and high strength.
(3).Machine adopts hydraulic drive.
(4).Replace the mould and with the corresponding materials can suppress various shapes.

1.Structure of charcoal fines briquetting machine

(1) Electric control vabinet : Automaticlly operation, easy to adjust speed and pressure,with LC touch screen.
(2) Hydraulic cylinder : Provide huge pressure 50-200 tons.
(3) Main engine include : feeder, shaping molds, belt conveyor.

2. Brief introduction of charcoal fines briquetting machine

Charcoal fines briquetting machine it is our latest patented product, because it has large pressure, and the pressure can be adjusted according to different raw materials, so it has best molding effect, even some raw materialss are not easy to mold. it also can press into good shapes.The whole machine includes main engine, electric control cabinet, hydraulic cylinder and outlet conveyor belt.

(1) Shape : Cylinder,Hoxagonal, Round,Cubic etc or as your sepecial requirement.
(2) Size : Height can be 20-50mm, if you need more higher, the mold can be customized.Diameter can be 20-50mm or bigger.
(3) Logo: Name, Letter ,or Logo shape.

Our engineer research and develop good formula with ten kinds different binder for briquette. All the binder are 100% natural, harmless. Also this kind binder is easy and cheap to buy in the market,mix with coal charcoal powder,easy to burn and burn long time.

Our charcoal fines briquetting machine adopts PLC control system, the operation is simple and easy to understand, and effort greatly reduced, and the machine has simple structure, convenient maintenance and low cost of investment.

 4. The advantages of charcoal fines briquetting machine

(1) The pressure of this machine is about 100ton, and the pressure can be adjusted.

(2) The outlet shapes of our hookah shisha charcoal dust briquetting machine are lot and we can customized the different shapes as your requirement.
(3) Automatic feeding and discharging system.
(4) The mold can be easily changed to make different shape of charcoal briquette, and we can customize the mold as your requirements.
(5) The thickness of briquettes can be adjusted, and the pressure can be easily controled.
(6) Touching controlling system and full English operation system to make the hydraulic machine easily operated.
(7) Position sensor system to make sure the machine changing the molds and maintain easily and perfect working.
(8) There is automatic cleaning brush for hydraulic machine to avoid charcoal dust stick on the molds.
(9) Manual or automatic working.

5. The application of charcoal fines briquetting machine

Our charcoal fines briquetting machine can press not only coal charcoal dust into different shape. But also any other dry fine powder, such as hard wood charcoal powder,coconut charcoal powder,coal powder, carbon powder,coke powder, soda powder, lime powder, camphor powder, solid alcohol, plastic tents fumicants,ash, scale cinder, rare earth, etc.

(1) Payment : 30% TT in advance, 70% TT balance pay off before delivery.
(2) Packing: The machine and wear parts will protected by wooden box or as customers’ will.
(3) Delivery time: For one set, the delivery time is 7-10 days, for 1-5 sets 20-25 days.

We have also got the CE, ISO, SGS and other several patents.Our machines are sold at home and abroad praised by customers highly for exampe Indonesia, Saudi Arabia, Malaysia, India, South Africa, Canada, Australia, Russia, Spain, Greece, Pakiswait, Turkey, Egypt, Sudan, Uzbekistan, Philippines, and other countries.

Related Products

 If you interest in this machine, click on the image to know more about information.

2. We will guide customers to choose the best and economical machine, recover investment within short time and site inspection.
In the sales
1. Accompany you to check the working conditions of the machine.
2. Lead to visit all of our machines.
3. Dozens of arrange delivery after received customer's advance payment.
After-sales
1. Engineers available to service machinery overseas to help you install, debug, build plant at the same time provide adhesive technology.
2. Guarantee the quality of equipment, when the equipment in the production have any questions we will timely solution for you.

6. Company information

Lantian Machanical Plant is a professional factory in producing coal,charcoal,biomass,shisha briquette machine and any other assistant equipments of briquette machine. Our factory was founded in 1980s.and through 30 years' development, our machines have earned good repulation in China, but also inforeign countries.

Our main briquette machine includes hookah charcoal powder tablet press machine, roller press briquette machine, pellet briquette machine, biomass briquette forming machine,, etc. Apart from all kinds of briquette machines, we also produce crusher, dryer, mixer, carbonization furnace, etc.

Welcome to visit our factory
