High Performing Timber Charcoal Briquette Machine Fire Wood Briquette Making Machine

Characteristics

Timber Charcoal Briquette Machine use the powder as raw material to press different shape by mixing and punching and the machine can change the mold easily.By switching the different shape of the mold to product a great diversity of briquette shape such as square,triangle,cylindrica and so on. Production speed can be arbitrary switching and we also can customize the mold to reach your final product request.

(1) Energy conservation and environmental protection,no waste gas,clean and health.
(2) Inflammable,high calorific value,4000-6000calories.
(3) By making high-strength aluminum alloy,durable.
(4) Abundant raw materials,low cost,burning a long time.
(5) Timber Charcoal Briquette Machine has been widely applied and the maket is never saturated.
(6) High density and easy to be ignited.

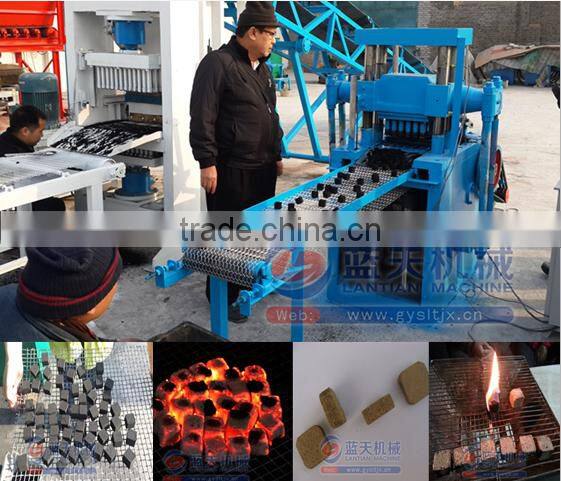

2.Mechanical press machine

Hookah Shisha Charcoal Briquetting Machine is urgently needed equipment in the world,Our factory production and development of Hookah Shisha Charcoal Briquetting Machine, Applicable to the diameter of 15 to 50 mm hookah charcoal,Generally in 30 mm or 40 mm of diameter, the thickness of about 13 mm, stamping about 20 times per minute, each time can press 9-12 pieces, stamping about twenty thousand pieces per hour.The sample surface is bright and clean, the pressure but can small, can be adjusted by the density. Stamping is stable, high efficiency, is the best choice of shisha charcoal briquette industry users.

Shisha charcoal has a smoke-free, tasteless, high heat, long burning time,Our factory developed adhesive, accelerant and other high-tech formula, low cost, each can burn about two hours.After replacement of molds can be pressed into round, square, rectangle, triangle, cylinders and other geometric shapes.Also can be pressed with text, logo, design, etc.

3.Hydraulic press machine

Hydraulic Cold Press Machine used in wide range of fields, can be compressed coal powder, charcoal powder, mineral powder, dry powder, graphite powder, ceramic, black carbon, fly ash and smelting slag, waste slag and other waste materials or other materials difficult to molding.Mainly used in coal, building materials, chemical, food, electronic, powder metallurgy and other industries. After change the molds can produce round, square, rectangle, triangle, polygon geometry and shape such as hollow.Also can produce shisha charcoal, silver charcoal, biomass carbon, etc. Truly satisfied the different needs of customers.

1.The hydraulic system:Hydraulic Cold Press Machine use of advanced hydraulic double proportional control technology, which can easily adjust and control of hydraulic system, stable running, high efficiency, which can use different raw materials to produce the same high quality products.

2.Electric control system:The whole process of PLC intelligent control, equipped with data output device, control system also includes advanced security logic control and fault diagnosis system.

3.Vibration system:Set the shaft vibration was optimized by using special technology, the shock evenly distributed throughout the bedplate scope, thus greatly improving the consistency of product performance and stability. Unique forms of fixed platform design, can improve the product molding speed and the accuracy of product size.

Size and shapes:
(1) Size: round: 20-45mm, square: 15-55mm
(2) Shape: round, square, restabgle, triangle, cylinder, diamound, cone, etc.
(3) The shape of briquettes can be customized.

4.Ball briquette machine

Tennis Ball Making Machine through reducer simultaneously transmitted the power to two pressure rollers and made them rotated in opposite directions. In two pressure rollers rotation, materials naturally enter into the ball molds on pressure roller and materials pressure vary from small to large with the rotation of the pressure roller. When the material is rotated to two rollers line contact points, materials pressure has reached a peak. Under enormous pressure, the powder materials are suppressed into finished ball.

The mold is made by durable material, very durable. Also the shape and size can be customized according to customers special requirements, oval shape, pillow shape, egg shape, ball shape, bread shape, strip shape, heart shape, etc.

5.Production line

1.Crusher: Crush raw materials into powder ,less than 1 mm.
2.Mixer: Mix powder with natural binder evenly.
3.Briquette Machine: Make the powder into any shape you want.
4.Dryer: Dry up the final briquettes till their moisture less than 5%.

6.Packing and Shipment

We have also got the CE, ISO, SGS and other several patents.Our Timber Charcoal Briquette Machine are sold at home and abroad praised by customers highly for exampe Indonesia, Saudi Arabia, Malaysia, India, South Africa, Canada, Australia, Russia, Spain, Greece, Pakiswait, Turkey, Egypt, Sudan, Uzbekistan, Philippines, and other countries.

7.Our service
Before the sales
1. According to the customer's requirement, provide the most suitable project design, process design and the purchase program.
2. We will guide customers to choose the best and economical machine, recover investment within short time and site inspection.
In the sales
1. Accompany you to check the working conditions of the Timber Charcoal Briquette Machine.
2. Lead to visit all of our machines.
3. Dozens of arrange delivery after received customer's advance payment.
After-sales
1. Engineers available to service machinery overseas to help you install, debug, build plant at the same time provide adhesive technology.
2. Guarantee the quality of equipment, when the equipment in the production have any questions we will timely solution for you.

8.Contacts information

9.Company Information

Gongyi Lantian mechanical plant is located in zhengzhou,which is a enterprise with more than 20 years history,Our factory mainly product coal equipment, charcoal equipment, drying equipment, mineral processing equipment, such as ball briquette machine, dryer, hydraulic press machine, tablet machine, granulator, extrude machine, charcoal machine, honeycomb briquet machine or other auxiliary equipment, etc.

2005 our factory have been approved for China import and export autonomy, the ISO international quality authentication enterprise, the European Union CE certification. In 2006-2008 was named the integrity of private enterprises in zhengzhou city, Has now won eight utility model patents, the appearance of patents, patent application for invention.
