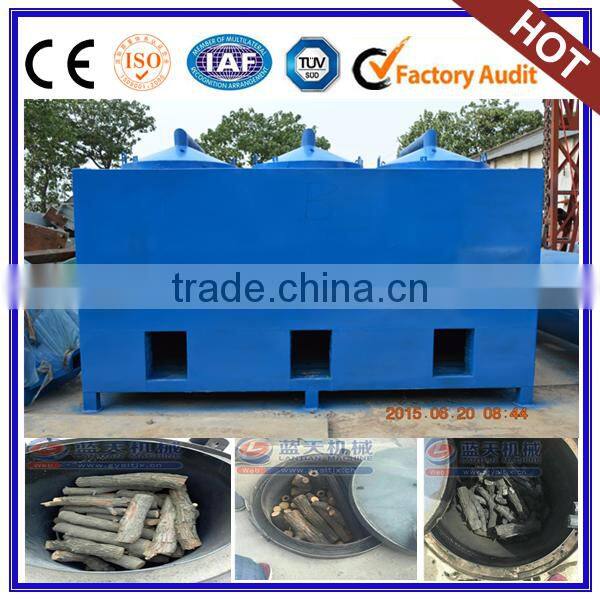

Wood Carbon Fiber Carbonization Furnace Support By CE

Wood Carbon Fiber Carbonization Furnace Support By CE

1.Character

Wood Carbon Fiber Carbonization Furnace is ideal equipment to for mass charcoal production. This type of Wood Carbon Fiber Carbonization Furnace adopts the structure of unique air storage chamber, to fully reuse the smoke produced during the process of carbonization. 60% of the redundant smoke can be used in drying and carbonization which saves energy and increases the enterprise revenue.

Product Description

2.Struction

Full struction for  Wood Carbon Fiber Carbonization Furnace ♣Main out stove,  ♣Lifting frame, ♣Inner stoves, ♣Baskets, ♣Smoking tank or Purification equipment



3.Detail pictures for Wood Carbon Fiber Carbonization Furnace

Customervisit and test different machine in our factory

4.Different raw material and final products

 5.Main paremater for Wood Carbon Fiber Carbonization Furnace

6.Carbonization process for Wood Carbon Fiber Carbonization Furnace

1

There have 4 of steel drums at the top of the machine body. Under each drum, it’s a small room to make fire.

2

The 4 drum have lids on top, and in the middle of the lids, there also connect with 4 pipes, is used for gases to escape (gases will come out when heating the drum). This pipe is called the "retort." Fill the retort with the chunks of hard wood and place the lid on top.

3

Place wood and start the fire at the bottom of the drums. Place the retort inside the drum, resting it on the fire.

4

Wait for the fire to get really hot

5

Keep an eye on the smoke. You should be burning for about three hours and the smoke should be……, which means that the water, tar and other compounds in the hardwood chunks are being released. Keep the temperature up by occasionally adding wood to fire.

6

Watch for the smoke ……, which means the gases have been burned out. Pull the rods out to drop the retort into the burned wood and ashes, stopping the flow of air to the charcoal inside.

7

Wait an hour, then lift the retort out of the drums. Wear welder's gloves, as the retort may not be cool enough to handle. Place the retort in dirt and allow it to cool further.

8

After about two more hours, check to see if the retort is cool enough to touch. If so, remove the lid to check the results of your burn. If successful, the hardwood chunks inside should have reduced by about a third, and been converted to lump charcoal.

7.Product line for Wood Carbon Fiber Carbonization Furnace

8.Load for Wood Carbon Fiber Carbonization Furnace

9.Certification of Our Factory and Products

Contact Us



Gongyi Lantian Machanical Plant was built at 1980s, more than 30 years manufacturer experience.   Our factory mainly produce Coal Charcoal briquette machine,Shisha Hookah briquette machine,Hydraulic press machine,Ball press machine,Biomass extrude machine,Charcoal extrude machine,Carbonized stove,Carbonized stove and other related machine.such as Crusher,Mixer, Conveyor,Feeder.   We help customers choose and design the best quality product line for different type machine.our machine Sold at home and abroad,supply those certifications:CE.ISO9001,CO,Form E,COC,CIQ,to help customer from different country custom clearance.





Sales manager	Sunshine Yu
Phone	0086 15038021962
QQ	1054121651
Whatsapp/Wechat	0086 15038021962
Website	http://gyltjx.en.china.cn

 Gongyi Lantian Machanical Plant has 28 years experience for Wood Carbon Fiber Carbonization Furnace. Sincerely hope to be your business partner.
