HSKL-E230 Wood/sawdust Pellet Forming Machine Line With CE

Specifications

 HSKL-E230 wood/sawdust pellet forming machine line with CE

 Raw materials:

It can be wood, sawdust , rice husk, bamboo, peanut shell, coffee husk, paddy straw, sunflower stalk and so on. The best size of these raw material should be 3-5mm, the suitable moisture content should be 8-12%.

 Making process:

 grinding-drying-pelletizing-cooling-packing process.

 1.grinding:

Depending on the different input material, we fit out the suitable Crushing machines.

If the raw material is big logs, we need to split the log into small woods,

and then are chipped into wood chips.

2.drying:

As we know, materials moisture is an important factor for line to produce pellets.The best moisture content of the materials is 15-18%.Thus , if you materials moisture content exceed 18%,then we recommend one set Dryer for your using.

3.pelletzing:

Ring die pellet machine is suitable for large scale wood pellet line, and has reliable running performance.After the final wood pellets come out from the pellet machine, then they will be entered into the next step Cooling part

oling:

there is one set cooler is added here.Cooler have the function of cooling pellets,reducing pellets moisture and screening pure pellets.After the pellets come out from the cooler, then you can put the pellets into store,or packed them for selling directly.After that,then the pellets will be host to the next part-packing part.

5.packing:

this part is added based on customer's request. If customer don't need it, then we don't add the packing part here.

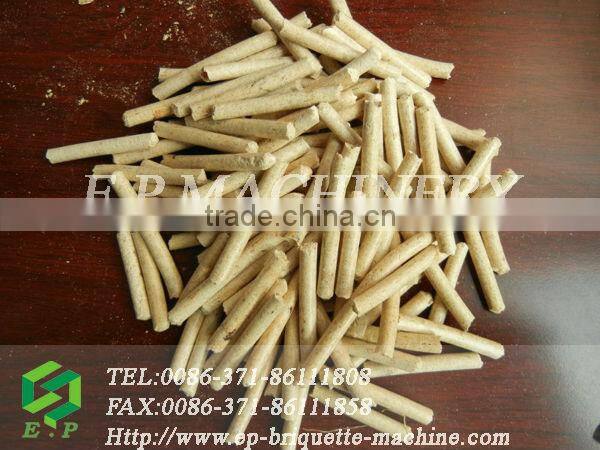

 Final pellets:

 Detail parameter for your reference:

About us :

Zhengzhou E.P Machinery Co.,Ltd was established to provide our customers with easy access to the finest Chinese machines, such as briquette machines, pellets mill, coal machine and so on.Our staff members have rich experience in knowing about China.Its people and its products

and we are proud of ourselves for our commitment to quality reliability and speed.This is made possible with our careful cimbination of expertise with rich domestic and overseas experience in both manufacturing and trading areas.

More information, please feel free to let me know.Thanks!

Alice
