PVC twin screw extruder

Specifications

PVC/PE pipe production line:
1.pipe diameter:16-630mm
2.speed:1-12m/min
3.Siemens motor,ABB,RKC
4.output:30-800kg/h

Detailed description:

2012 NEWEST wpc pipe extrusion line:

1)This wood plastic compound pipe production line uses either plastic compound or recycled plastic(PP/PE/PVC) and coal ash or Flyash to produce a composite result.

2)Mainly used for decoration , floorings, furniture ,pallet ,drain pipe and so on ..

3)The extruded product with this tooling has the advantages of plastic profile and the qualities of flyash, such as good hardness, good rigidity, long service life, and good machine ability. The end product is resistant to the weather and is environmentally safe.

4)It is new material for two years in the world ,has big market in each country .

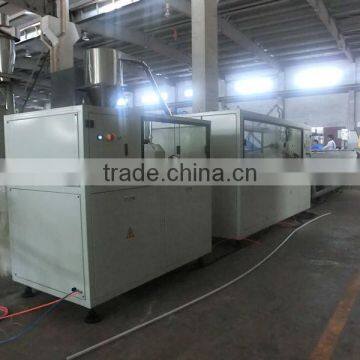

 Flyash-PE pipe making machineThis Flyash-PE pipe production line is mainly used in the manufacture of the Flyash-PE and Flyash-PE pipes with various tube diameters and wall thickness such as the agricultural and constructional plumbing, water supply and drain etc.

Main parts:

 1,automatic feeder

 2,single screw extruder

 3,mould

 4,stainless steel vacuum calibration tank

 5,stainless steel cooling tank

 6,haul-off (traction) machine

 7,automatic cutter

 8,stacker

A. Extruder

1. High extrusion capacity, low melt temperature.
2. Special screw design insure the high-efficiency and high yield
3. Bevel gear design of high hardness and low noise brings ependable performance with oong service life.
4. Adoption direct current speed regulation design for the standard, also the frequency variable speed adjusting and the electromagnetism speed adjust may be chosen.
5. According to the different material extrusion choosing the different extrusion machine.

Features:

The screw extruder and traction machine adopt imported AC frequency control device. The vacuum pump and traction motor both adopt advanced products. The traction has many traction models, such as two-claw, three-claw, four-claw, six-claw etc. It may choose visual blade or cutting type, The unit is of reliable performance and high production efficiency.

Main technical standard:
