Hot Sale Stick Fuel Forming Machine With Factory Price

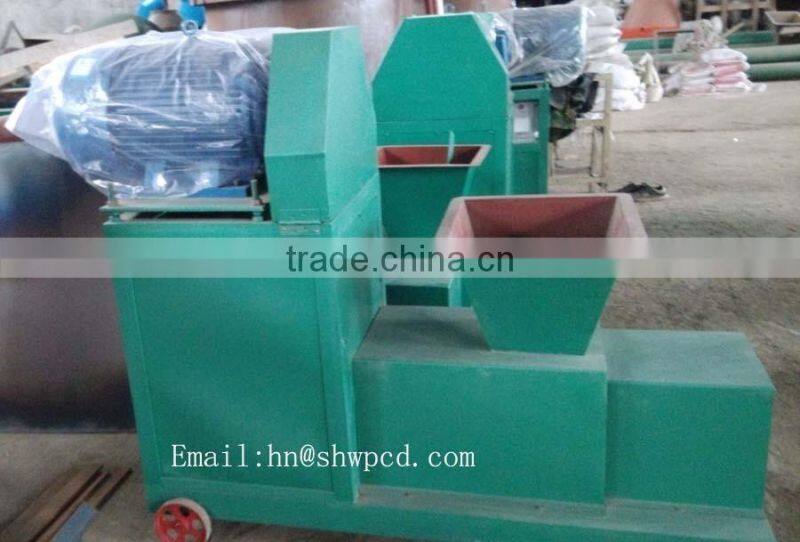

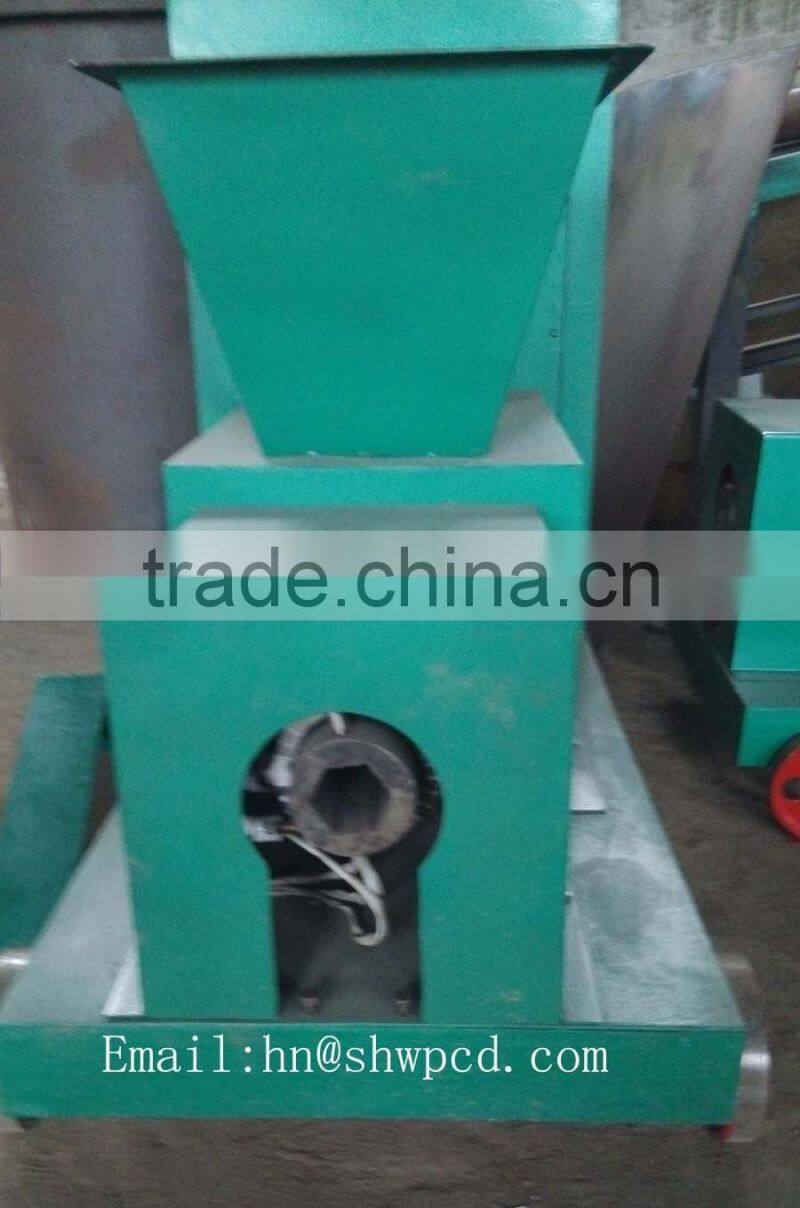

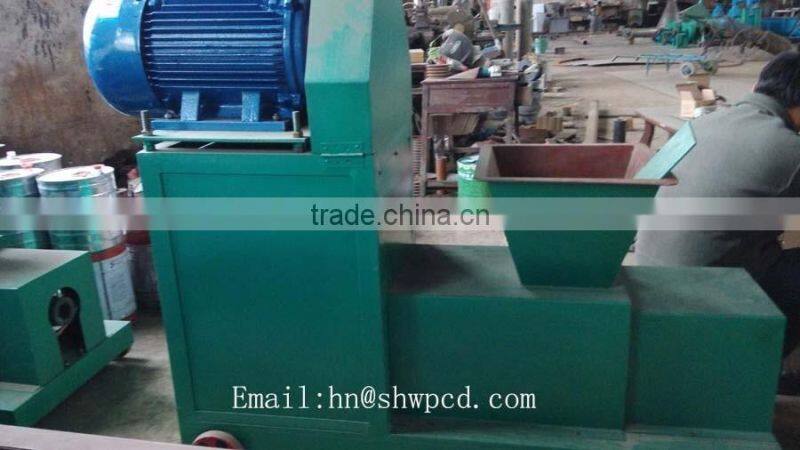

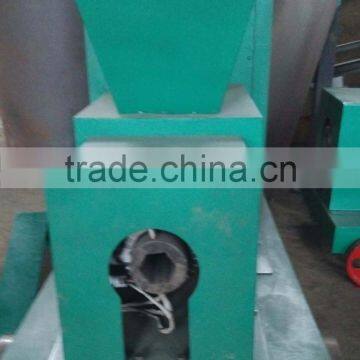

Stick fuel forming machine

This machine is the main equipment to make stick solid fuel with such wood material as bits of wood, rice shell or peanuts shell, etc. The raw material(12% Water proportion) dried by the dryer(12% humidity)will be formed into fuel under high pressure and at high temperature.

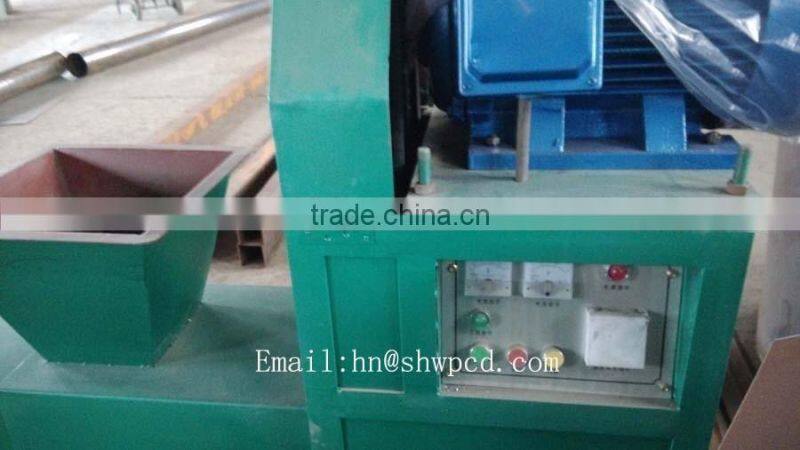

This machine adopts temperature adjusting indicator, it can work steadily at the fixed temperature and has the feature of rational structure, being easy to operate and maintain. The solid fuel produced by this machine has the feature of being easy to light, and having high calorific value (over 20% higher than normal wood), little pollution when burning and high density which is favorable to transportation. This machine can make full use of the remainder of farm and forest.

Ⅱ Working basis

Using the intrinsic attributes of the wood material, by spiral extruding at high temperature, under high pressure, wood element in wood material becomes plastic and makes the fine fiber combine, and then stick solid fuel is formed.

1 Total power: 15.5kw 380v 60Hz

Motor power: 11kw 380v 60Hz

Heat power: 4.5kw 380v

2 Productive ability: 120---150kg/h

3 Electricity consumption: <100kwh/h

4 Size: L*W*H=1650*600*1260

5 Weight: 1200kg

6 Demand on material:

Water proportion: 8---12%(wet base)

7 Product feature:

(1) External form size: external diameter: 45mm Internal diameter 35mm

Lengt:450mm

(2) Specific gravity: 1200—1300kg/m3

(3) Calorific value: 4400—5000kcal/kg
