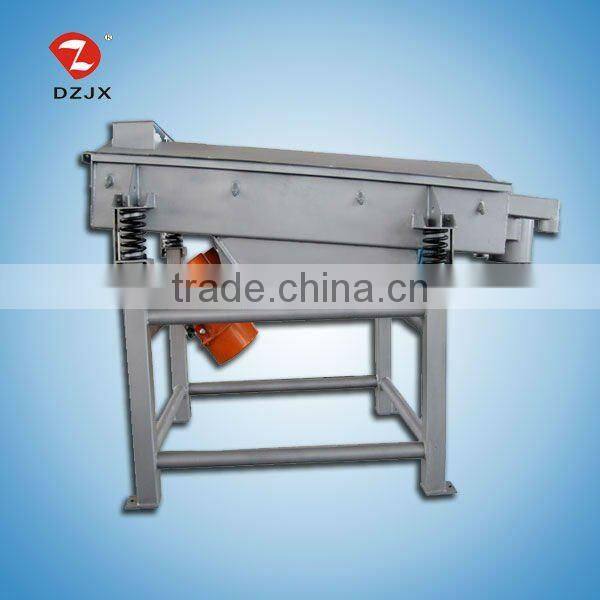

China High-tech Carbon Steal Linear Reliable Quality Sand Vibro Sifter
- Qingdao Tianjin Dalian
- T/T L/C D/P D/A Credit Card
You May Like
-
China Automatical Linear Horizontal Flour Sifter
-
China Automatical Carbon Steal Linear Reliable Quality Sand Vibro Sifter
-
China Attractive and Durable Carbon Steal Linear Sand Vibro Sifter
-
China Automatical Linear Horizontal Vibrating Screen
-
China Automatical Carbon Steal Linear Palm Oil Vibrating Screen
-
China Automatical Linear Soil Sifter Machine
Product Details
| Condition | New | Type | Linear | |
| Application | Food Processing | Place of Origin | Henan, China | |
| Brand Name | DZ | Model Number | ZSQ | |
| Voltage | 220v 230v 240v 380v 400v 415v | Power(W) | 2*0.75-2*3.0kw | |
| Dimension(L*W*H) | variable | Weight | variable | |
| Certification | ISO9001-2008 | Warranty | 13 months | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Standard automatical linear vibrating screen for building material

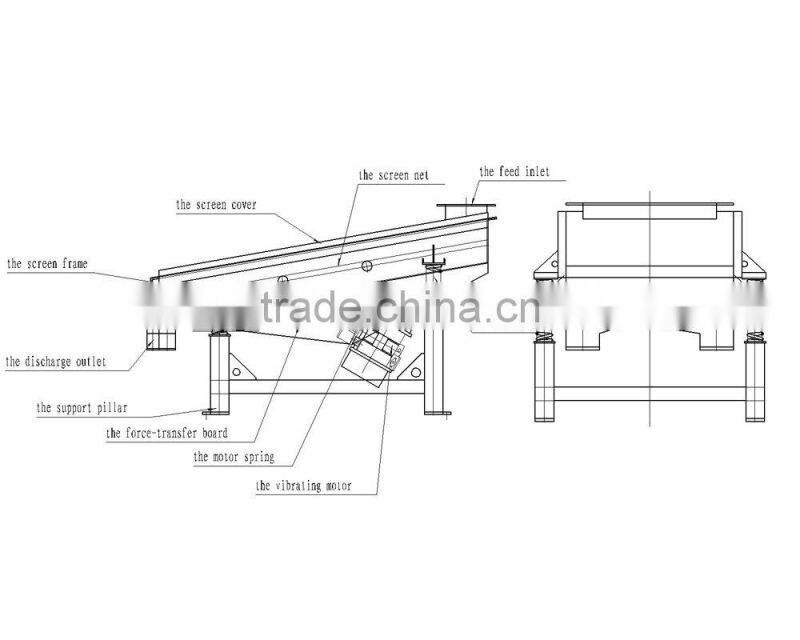

ZSQ series linear vibrating screen/sieve is a standard and universal screening equipment. The movement track of its screen box is close to a straight line. Almost all the linear vibrating machine is consisted of screen box, supporting or hanging device, driving unit and vibration isolation device etc.
Scope of Application:
ZSQ series linear vibrating screen/sieve is very suitable to screen and grade powder or granule materials. It is widely used in many industries such as plastic, grinding, chemical, medicine, building material, food, carbon and chemical fertilizeretc.
Techinical Parameter:
| Model | ZSQ-520 | ZSQ-525 | ZSQ-1020 | ZSQ-1025 | ZSQ-1030 |
| Dimension (mm) | 500*2000 | 500*2500 | 1000*2000 | 1000*2500 | 1000*3000 |
| Granularity (mm) | 0.074-60 | 0.074-60 | 0.074-60 | 0.074-60 | 0.074-60 |
| Speed(r/min) | 960 | 960 | 960 | 960 | 960 |
Amplitude(mm) | 1-5 | 1-5 | 1-5 | 1-5 | 1-5 |
Deck | 1-4 | 1-4 | 1-4 | 1-4 | 1-4 |
| Power (kw) | 2*(0.37~0.75) | 2*(0.37~0.75) | 2*(0.37~0.75) | 2*(0.37~0.75) | 2*(0.37~0.75 |
