Round Vibrating Screener For Kaolin Powder

Working principle

The machine is drived by a unbalance motor, which is with variable eccentric weights on both sides of motor shaft. , The screening time and movement of material on the screen surface can be controlled by adjusting the angle of the two eccentric weights.

Application

Application Range

1)Size classification: separation of particles into groups of comparable size from the materials.
2)Gravity filtering: removal of solids from liquids and slurries.
3)Product reclamation: removal of the solids from waste product or clarification of waste liquor for further use.
4)Screening: separation of a few oversize particles from a quantity of materials.
5)Liquid cleaning: cleaning of wastewater or removing the solids from recirculation liquid.

Main Features

1)Fully adjustable amplitudes of vibration.
2)25 µm to 25 mm aperture quick change mesh - frames.
3)Automatic ejection of oversize materials.
4)304 / 316 L stainless steel contact parts as standard.
5)Deep anti - splash top rims.
6)Quiet operation from polyurethane suspension spring mounts.

Technical Parameter

Machine picture

Name: Vibrating Motor

Brand: DZJX

 The power source of the machine

Name:clamps
Brand: DZJX
Fixed mesh

Name: Spring
Brand: DZJX
Reduce the machine damage，reduce the noise

Name: Rubber ball
Brand: DZJX
 Prevent the screen blocking

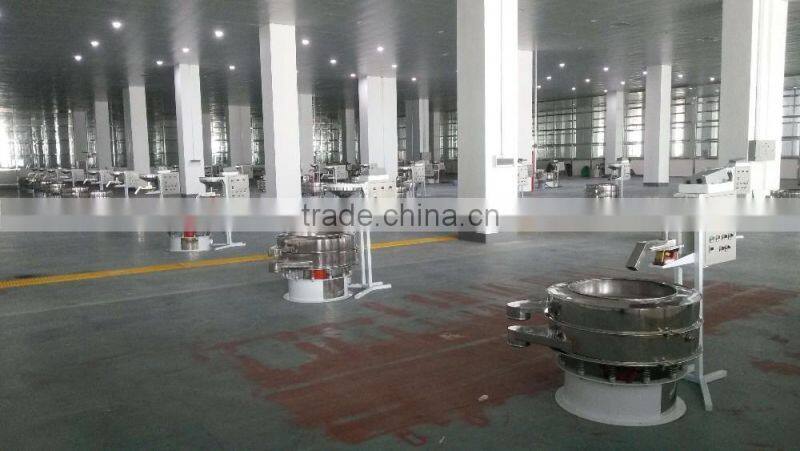

 Production process

About us:

We are direct factory of Vibrating Screen, Conveyor equipment and Mixer for many years, we are glad to build longlasting business relationship with you.

We have the enterprising and energetic team of excellence who are dedicated to their career. More than 200 staff work for us, including 65 technicians and engineers with senior title . In 2000, we established CAD workstation earlier than others in China.

How to provide us the detailed need

1)Material (name) that you want to process, with the density, water content(%).
2)The necessary process quantity (per hour)
3)Material contact part, SS304, SS316L and Q235 for option.
4)The different dimension of the machine can be designed for you.
5)Additional parts, like the Mobil wheel and noise-proof base, can be easily fixed and maintained.
