Diesel Poultry Heater/heating Machine
- Qingdao
- T/T
You May Like
Product Details
| Condition | New | Type | Air Heater | |
| Power Source | Diesel | Place of Origin | Shandong, China | |
| Brand Name | SANHE | Model Number | FSH | |
| Dimension(L*W*H) | 1600*900*1400MM | Weight | 400-900KGS | |
| Voltage | 380/220V | Power(W) | 0.6-1.2KW | |
| Certification | CE/SGS/BV/ISO9001 | Warranty | 1 year |
Product Description
Specifications
Using full auto control consistent temperature ,the temperature of outlet air can be set freely 40-120 degree .

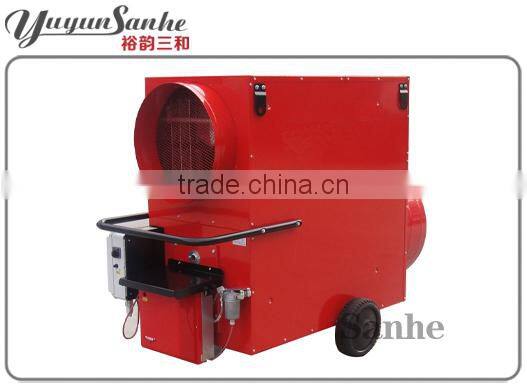

SANHE AUTO-OIL HEATING MACHINE
Features:
1.Heating area: 300/600/1200 square meters.
2.Stainless steel combustion chamber, thermal conversion as high as
90%

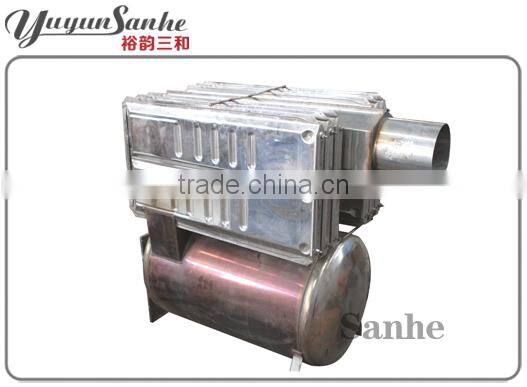

3.Stainless steel exchanger is made of 321 (1Cr18Ni9Ti) stainless steel plate, tube.
4.Double air input and output design.

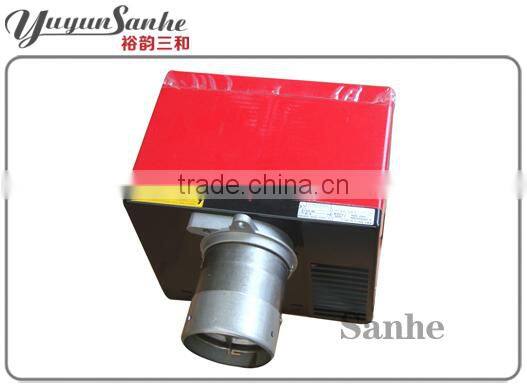

5.Equipped with the world brand Riello burner. Automatic control
system operate easily, warming quickly. After setting, burner would
automatically start on, fire, supply air and stop for keeping steady
temperature. Save large labor and financial resources.
6.Heater exchanger adopt the special three-pass design.
7.Special insulation design which minimize heat loss.
8.All the technical index meet the national environmental
protectionⅠstandard.
 | Equipped with Italy Origin Riello burner, achieve the auto-diesel supply, autoignition,automatically adjust the ratio between diesel and air; Work smoothly without smoke.All indexes meet the national class I areas environmental protection standards. |
| This machine combines combustion chamber with heat exchanger; Exchange heat among the highest temperature parts, this latest indirect-heating technology make smoke and hot air walk their own way, absolutely no pollution. Unique heating radiator design achieve more than 90% heating efficiency. |
| SANHE Diesel heater’s combustion chamber & heat exchanger are all in Stainless steel material, which is heat-resistant and extend its lifespan. |

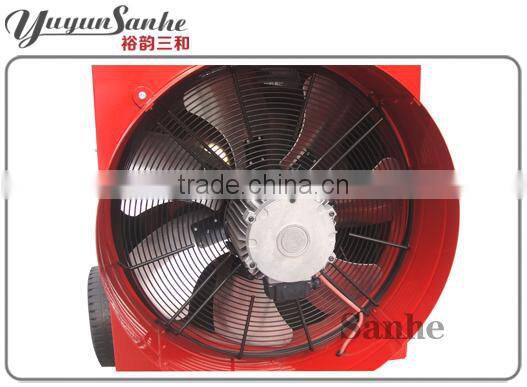

| SANHE Diesel heater use pressure exhaust fan to draw the fresh air into the chamber,effectively improve the working effciency. |

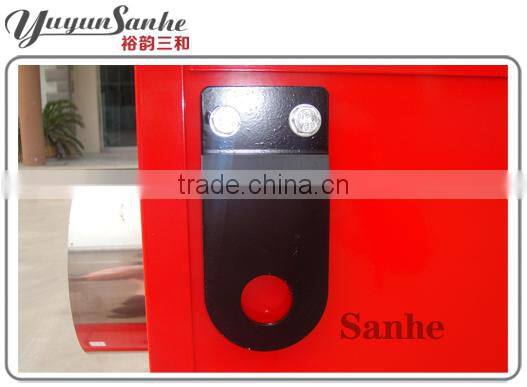

| SANHE Diesel has hoisting device which is convenient for loading/unloading; and also can work in hoisting condition. Material is very strong. |
| SANHE Diesel has movable pulley in its bottom and human operating handle-bar. |
Technical Parameter:
Technical parameter | 50,000 kcal | 120,000kcal | 150,000kcal | 200,000kcal |
Thermal output power (kcal/h) | 50000 kcal/h | 120000 kcal/h | 150000 kcal/h | 200000 kcal/h |
Power( KW) | 60Kw | 140Kw | 174Kw | 230Kw |
Heat effciency ≥% | ≥90% | ≥90% | ≥90% | ≥90% |
Fuel | Diesel | Diesel | Diesel | Diesel |
Fuel consumption (kg/h) | 2.3-5kg/h | 4.5-10kg/h | 7-15kg/h | 8-18kg/h |
Control method | Auto | Auto | Auto | Auto |
Fan air volume (m³/h) | 11000m³/h | 11000 m³/h | 14000 m³/h | 14000 m³/h |
Temperature rising range (℃) | 80-120 ℃ | 80-120 ℃ | 80-120 ℃ | 80-120 ℃ |
Power supply (V/Hz) | 380V/50Hz | 380V/50Hz | 380V/50Hz | 380V/50Hz |
Power (kw) | 0.7Kw | 0.92 Kw | 0.95Kw | 1.42Kw |
Hot air outlet Dia. (mm) | 520mm | 520mm | 520mm | 520mm |
Diemension (L×W×H)mm | 1760×840×1380 | 1760×840×1380 | 1750×840×1380 | 1750×850×1380 |
Frame material | Galvanized +spray paint | Galvanized +spray paint | Galvanized +spray paint | Galvanized +spray paint |
Guarantee period | One year warranty, lifelong service | |||
1. LCL Packing condition:
2. Full container packing condition:
Installation site:
Shandong Yuyun Sanhe Machinery Co.,Ltd. (Qingzhou Sanhe Machinery Co.,Ltd.) is a company combined manufacture & exporting into together. We have been in the market for about 20 years. We own a complete line to produce exhaust fan, cooling pads, heating machine, light trap, air inlet,etc.
Our company is located in Qingzhou city, Shandong Province, China. The nearest loading port is QINGDAO port.
