ISO9001 Approved Livestock breeding heater
- 50 Set / Sets per Month
- QINGDAO
- T/T D/P D/A Credit Card
You May Like
-
Poultry house equipment, Auto-electric heater
-
Italy Riello burner in Electrical hot heater
-
CE certificate Industry heating machine
-
Gas burner in Industrial workshop/Poultry heating machine/Greenhouse
-
SGS approved Auto Diesel heater for Poultry house / Greenhouse / Industry
-
SANHE Greenhouse Auto Diesel burner
Product Details
| Condition | New | Type | Air Heater | |
| Power Source | Other, coal | Place of Origin | Shandong, China | |
| Brand Name | SANHE | Model Number | FSH | |
| Dimension(L*W*H) | 2200*1100*2400mm | Weight | 1000kgs | |
| Voltage | 380V | Power(W) | 250KW | |
| Certification | ISO9001 | Warranty | 1year |
Product Description
Specifications
Automatic control , quick temperature rising ,high thermal efficiency ,long service life .SANHE AUTO-COAL HEATING MACHINE
The features are as follows:
1) Using full auto control, consistent temperature, the temperature of tot air can be
set freely 40-120 degree.
2) Adopt artificial intelligence instrument, clear and eye-catching, it can keep the greenhouse in 15-20 degree.
3) Extensive using fuel, energy saving and cost saving, reduce the
heating cost as high as 30%
4) Using SANHE unique furnace guarding heat system, improve heat
efficiency and service life (6-10 years).
5) This machine combines combustion chamber with heat exchanger
together. Exchange heat among the highest temperature parts, this latestindirect-heating technology make smoke and hot air walk their own way,
absolutely no pollution.
6) Thermal conversion reaches as high as 80%-95%, fast warming, small volume, easy installation, reliable use.

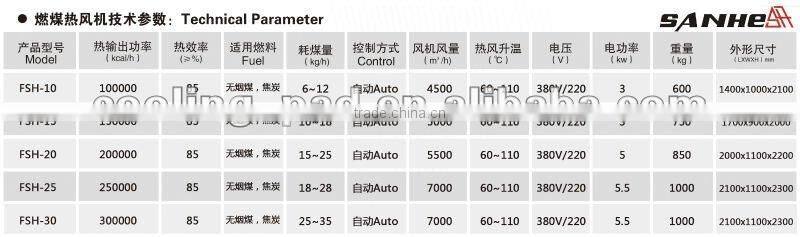

Technical Parameter:
Technical Parameters | 150000Kcal | 200000Kcal | 250000Kcal | 300000Kcal |
Heat output power kcal/h | 150000 kcal/h | 200000 kcal/h | 250000 kcal/h | 300000 kcal/h |
Heat efficiency ≥% | ≥90% | ≥90% | ≥90% | ≥90% |
Fuel | Coal | Coal | Coal | Coal |
Consumption kg/h | 10-18 kg/h | 15-25 kg/h | 18-25 kg/h | 30 kg/h |
Way of adding coal | Manual | Manual | Manual | Manual |
Way of control | Auto | Auto | Auto | Auto |
Air flow m³/h | 5000 m³/h | 5500 m³/h | 7000 m³/h | 7000 m³/h |
Temperature rise °C | 80-120 °C | 80-120 °C | 80-120 °C | 80-120 °C |
Power Source V/Hz | 380V/50Hz | 380V/50Hz | 380V/50Hz | 380V/50Hz |
Electric power kw | 3Kw | 5Kw | 3Kw | 5.5Kw |
Diameter of air outlet mm | 400mm | 400mm | 400mm | 400mm |
Weight kg | 1000Kg | 1500Kg | 1650Kg | 1700Kg |
Dimension length×width×height mm | 1700×900×2000 | 2000×1100×2200 | 2100×1100×2300 | 2100×1100×2300 |
Material of frame | Galvanized +spray paint | Galvanized +spray paint | Galvanized +spray paint | Galvanized +spray paint |
Quality guarantee period | One year warranty lifelong service | One year warranty lifelong service | One year warranty lifelong service | One year warranty lifelong service |
1. LCL PACKING:
2. CONTAINER PACKING:

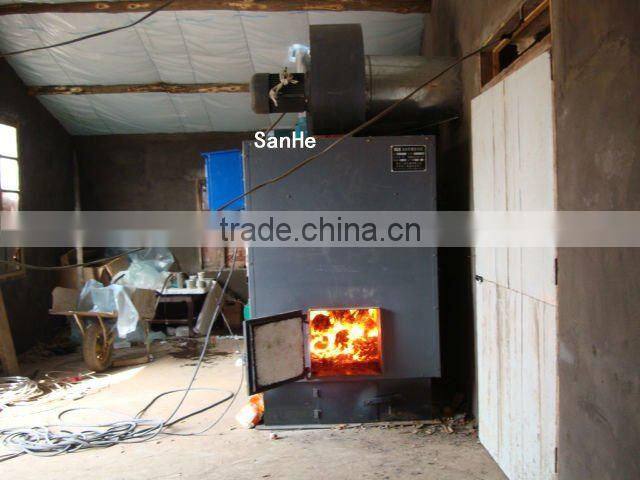

Installation site:
Other fuel Auto-heater:
Shandong Yuyun Sanhe Machinery Co.,Ltd. (Qingzhou Sanhe Machinery Co.,Ltd.) is the professional manufacturer in Ventilation exhaust fan, cooling pad, heating machine, light trap, air inlet, etc. in China. We have been in the market for about 20 years, we have export license. We own a complete line to produce all products. We have two factories, next year, the third factory is well established and begin to work.
Our company is located in Qingzhou city, Shandong Province, China. The nearest loading port is QINGDAO port.
1. Payment term:
EX-WORK or FOB QINGDAO or CIF
2. Payment way:
T/T or IRREVOCABLE L/C AT SIGHT.
3. Products personal logo:
Can be customized.
4, Guarantee period:
1 year.
