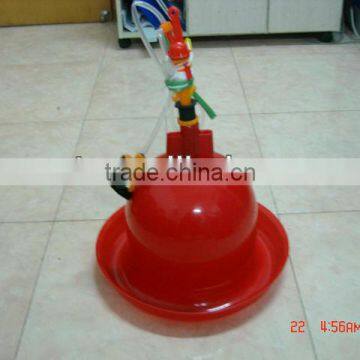

Breeder Drinker

Specifications

Breeder Drinkers operate on low water pressure, are self-cleaning, keep litter dry and easily distribute medication. They have an independent ballast bottle and valve mechanism, so fresh water is always available. The valve is activated when as little as 2 oz. of of water is consumed. They are made of a rugged high-impact plastic, formulated to withstand the ravages of the active breeder house for many years.

Approximately 10-12  Breeder Drinkers are needed per 1,000 breeders, turkeys and game birds; 8-10 drinkers will serve 1,000 layers; in hot climates, 12-14 drinkers are needed per 1,000 birds. This drinker comes with 10' of hose and barbs; a full line of parts are available.

Instructions for Use:

• #1 - Fill ballast bottle 1/2 to 3/4 full of water and antifreeze. This will help prevent freezing during cold weather.
• #2 - Screw the bottle hanger onto the ballast bottle.
• #3 - Place bell over the hanger with the hanger coming through the two side holes on the bell.
• #4 - Screw mechanism assembly into center of bell.
• #5 - Hook bottle hanger onto the tabs of the mechanism assembly.
• #6 - Screw one of the unions onto the mechanism cap.
• #7 - Attach hose to union.
• #8 - The white piece on the mechanism assembly that was screwed into the bell (Step 4) is called the water level adjuster. Once the water reaches the desired level, tighten the black locking collars to keep this level from changing.
