Dry-wet Separation And Dehydration Machine for Manure And Sewage Treatment in Livestock Farming

The working principle of the tumbler microfilter dry-wet separator is based on the combination of tumbler

filtration technology and microfilter process, mainly used for solid-liquid separation and wastewater treatment.

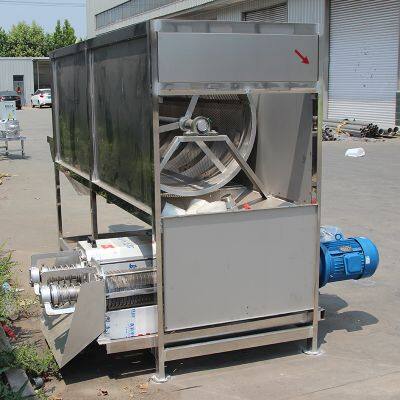

Its core component is a horizontally placed cylindrical cylinder, wrapped in a stainless steel wire mesh, which

 separates solid and liquid by rotation.

workflow

Water intake and filtering

Sewage from the transport pump into the equipment, the water distributor uniform distribution in the drum

filter. Solid impurities are intercepted and clean water is discharged through a filter.

1

2

Solid-liquid separation

The tumbler rotates at a low speed (usually 1-3 r / min), the spiral pushing device pushes the solid to the sewage

mouth, the dry material is squeezed and enters the spiral screw to further dehydrate, and the wastewater with

a high solidity rate returns to the treatment system.

1

2

Anti-refrigeration mechanism

When the filter is clogged, the starting mode of pumping is used.

2

Parameter regulation

The filter accuracy can be adjusted by replacing the filter with a different number of objects (60-250 objects optional);

Speed control to avoid large particle fragmentation affecting the separation effect.

2

The equipment is widely used in aquaculture waste water treatment, industrial waste water purification and so on.
