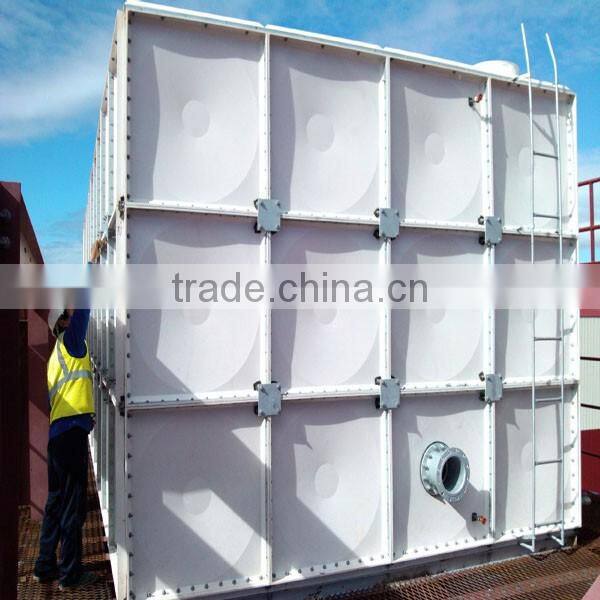

Big Plastic Water Storage Tank

Big plastic water storage tank

Detail information

Features

(1)  Strong resistance to corrosion

(2)  Reasonable structure design

(3)  All welded on-site combination. High strength, good sealing,   prevent  secondary  pollution of water quality

(4)  Light weight, that is one half of ordinary steel plate water tank

(5)  Easy to install

(6)  Clean, bright, beautiful appearance

Application

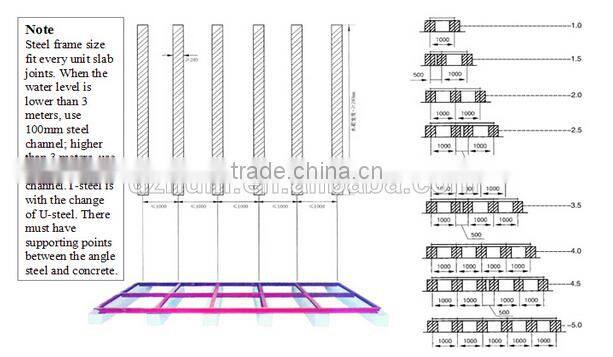

Structure drawing

Accessories and specifications

1. Support for Panels: The panels shall be supported externally or internally by an adequate support system. External Reinforcement - Hot Dipped Galvanized Steel
Internal Reinforcement - Hot Dipped Galvanized or Stainless Steel 304 rod support and tie-rod

2. Sealing Materials: Non toxic Rubber foam to be used for all jointing, it is especially developed with long experience and technology on SMC products. It maintains soft itself and adhesives even at low temperatures

3. Bolts, nuts and washers for the assembly of panels: Exposed externally are hot dipped galvanized steel and in contact with water internally are hot dipped galvanized steel or stainless steel 304

4. Flange: the flanges for inlet, outlet, drainage, overflow are hot dipped galvanized steel or stainless steel 304

5. Ladders: SMC sectional tank of 1.5m depth or more shall be provided with internal ladder made up of materials same with the supports. The external ladders shall be galvanized mild steel or equivalent

6. Drainage: The dome shaped bottom panel with a concave drain panel facilitates complete and fast drainage. The concave drain panel has been designed to ensure the periodic cleaning and inspection of tank

7. Overflow Screens: it can be supplied with a screen overflow having a micro mesh filter

8. Man-hole opening & Inspection Hatches: the size can be customized; normally it is supplied with a standard size of: 600 x 600mm. the opening can be designs of bolt, seal-tight locking arrangement

9. ABS roof vent with PE insect screen

10. Float level indicator, optional SS304 for internal and external support structure are available on request

Packaging and shipping

1.plywood 2.iron bracket 3.naked package

Company information

Dezhou Huili tank Co. Ltd., is a professional production enterprise specializing in the production and design of the water tank.

Company's products include: fiber glass reinforced plastic water tank, stainless steel water tank,enamel steel water tank, hot dip galvanized steel water tank, gush-paint steel water tank and underground water tank.

Company tenets: quality first, customer first and best credibility!

The same price with best quality,the same quality with highest reputation!

FAQ

1.What's the guarantee, in case the water tank breaks down?

The water tank has one year s guarantee. If it breaks down, generally speaking, our

technician will figure out what the problem may be, according to client s feedback.

Parts will be replaced for free if the problems are caused by quality fault.

2.How about the documents after shipment?

After shipment, we ll send all original documents to you by DHL, including Packing List, Commercial Invoice, B/L, and other certificates as required by clients.

3.How long is the delivery time?

For standard water tank less than 100m3, it would be 7-10 days; For non-standard

water tank and customized water tank according to client s specific requirements, it would be 15 to 30 days.

4.How's the payment?

Telegraphic Transfer(T/T).

5.Do You Arrange Shipment For The Machines?

Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you. For EXW price, clients need to arrange shipment by themselves or their agents.

6.How is the packing?

Solid Seaworthy plywood Box Package with Steel Belt

Save space as much as possible for container loading

Our other products

undergroud water tank

Stainless steel water tank
