Fiberglass Fish Farming Water Tanks
- Qingdao Tianjin Shanghai
- T/T L/C D/P D/A Money Gram Credit Card PayPal
You May Like
-
SMC Modular Panel Storage Water Tank Frp Fiberglass Modular Panel Water Storage Tanks Grp Modular Panel Drinking Water Tanks
-
2016 Top Quality Smc/grp/frp Sectional Panels Water Storage Tank for Fire Fighting and Water Treatment
-
Square Insulated Fiberglass Panel Storage Water Tank
-
China Supplier Big Capacity GRP/FRP/SMC Fiberglass Water Storage Tanks
-
SMC FRP GRP Sectional Water Tank for Fire Water
-
SS 304 316 Storage Stainless Steel Water Large Volumes Tank
Product Details
| Place of Origin | Shandong, China | Brand Name | Huili | |
| Model Number | Huili-smc |
Product Description

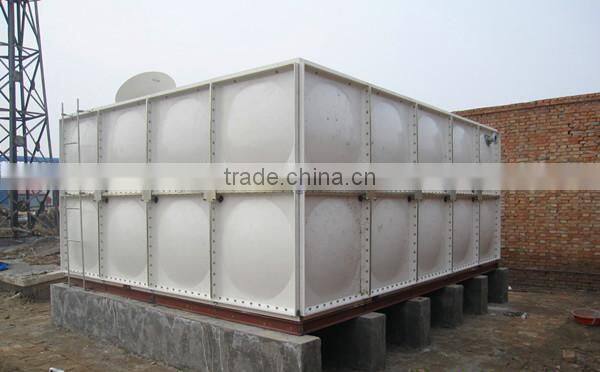

Fiberglass fish farming water tanks
We company, Huili water tank offer sectional tanks that are made from hot pressed moulded panels to British and European Standards. Although there is no gel coat, the isophthalic resin rich inner surface is ideal for storing wholesome water. Tanks constructed from panels can be built in spaces with restricted access.
SMC water tank is made of SMC sheet material, by high temperature, high pressure, mechanical suppression and into. In the manufacturing process, take machine pressure molding production methods. Increased the strength of the earthquake, impact resistance, overcome hand lay-up strength uneven defects, improve the stress strength and service life; In appearance design, plate into the central projection, improve the water tank in the radian bearingpressure ability, increased the water tank capacity, water tank plate specification is: 1000 * 1000 mm; 1000 * 500 mm; 500 * 500 mm.
Water tank function
Project | Requirements |
Leakage | No leakage after filled with water |
Deformation after full of water | Filled with water, wall maximum deformation after no more than 1.0% of the tank Bottom Center height, no more than 10 mm maximum deformation |
Water quality | Accord with GB5749 |
Panel physical and chemical function
Project | Performance index |
Tensile strength,Mpa | ≥60 |
Bending strength,Mpa | ≥100 |
Bending modulus,Gpa | ≥7.0 |
Pap hardness | ≥60 |
Bibulous rate,% | ≥60 |
Glass fiber content,% | ≥25 |
Features
(1) Strong resistance to corrosion
(2) Reasonable structure design
(3) All welded on-site combination. High strength, good sealing, prevent secondary pollution of water quality
(4) Light weight, that is one half of ordinary steel plate water tank
(5) Easy to install
(6) Clean, bright, beautiful appearance
Application
1). storage and regulation of living water supply & construction water supply
2). Rainwater Harvesting & Storage
3). Effluent/Acid and alkali solution treatment & Storage
4).Hospital,buildings,building site, school and other place
5). temporary water storage for expansion of the heating system, condensate tank and construction, geological survey, industry, National defense project etc

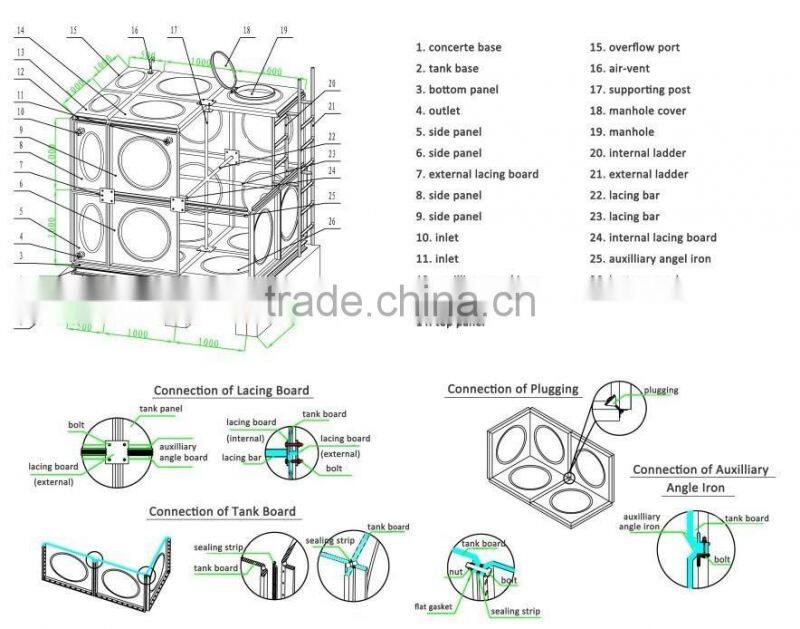

Structure drawing
Specification parameter
Tank height (mm) | Thickness of each panel | |||||
bottom panel | 1st layer side panel | 2st layer side panel | 3st layer side panel | 4st layer side panel | cover panel | |
| 1000 | 10# | 10# | / | / | / | 5# |
| 1500 | 10# | 10# | 8# | / | / | |
| 2000 | 12# | 10# | 8# | / | / | |
| 2500 | 12# | 12# | 10# | 8# | / | |
| 3000 | 14# | 14# | 12# | 8# | / | |
| 3500 | 16# | 14# | 12# | 10# | 8# | |
| 4000 | 18# | 18# | 14# | 12# | 10# | |
More pictures
Accessories
Packaging and shipping
1.plywood 2.iron bracket 3.naked package

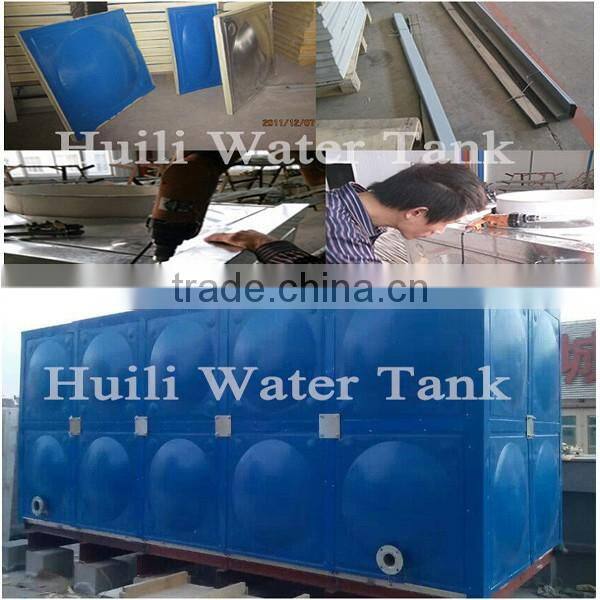

Our workshop
Tank insulation
There are many insulation materials commonly used polyurethane, rubber and plastic, etc.The polyurethane heat preservation effect is the best, also is my company's innovative product, has been in different has been widely used in different occasions, the market reaction is good.
The tank polyurethane heat preservation make full use of the polyurethane itself good effect of heat preservation and bonding properties, high pressure foaming , and various forms of water tank is perfect joint, outsourcing angles, beautiful and durable.
Besides, there are more economical and general rubber insulation for you to choose, it is a suitable choice in not very high requirement heat preservation.
Innovative in heat preservation of exterior used the glue plate, color steel plate, stainlesssteel plate, aluminum plate, galvanized steel, compared with the traditional aluminum foil, use
this protective material insulation board for longer service life, better, more beautiful
appearance.

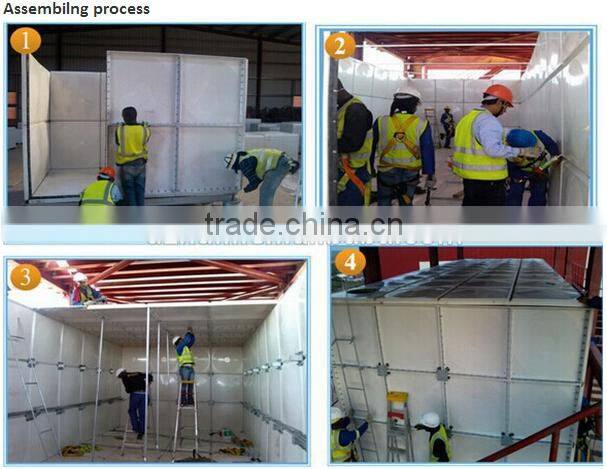

Tank installation
Step 1. Install steel footings on leveled concrete foundations.
Step 2. Align GRP panels to be pre-assembled.
Step 3. Place rubber sealant from ready-to-use roll between panels.
Step 4. Connect panels with bolts and nuts.
Step 5. Position bottom panel sections, and finish up base of tank.
Step 6. Position three sides of the tank.
Step 7.Position and fix roof panels and if required, roof support pipes and plates
Step 8. Install reinforcement if required.
Step 9. Close up the tank with the fourth side.
Step 10. Finish the internal or external reinforcement.
Step 11. Fill and test.
Company information
Dezhou Huili tank Co. Ltd., is a professional production enterprise specializing in the production and design of the water tank.Company's products include: fiber glass reinforced plastic water tank, stainless steel water tank, enamel steel water tank, hot dip galvanized steel water tank, gush-paint steel water tank and underground water tank.Company tenets: quality first, customer first and best credibility! The same price with best quality, the same quality with highest reputation!The company has a professional after-sale service institution, each service branch are provided with a fixed installation and after sale service personnel to ensure the user to get a response from us in the first time.
FAQ
1.What's the guarantee, in case the water tank breaks down?
The water tank has one year s guarantee. If it breaks down, generally speaking, our technician will figure out what the problem may be, according to client s feedback.
Parts will be replaced for free if the problems are caused by quality fault.
2.How about the documents after shipment?
After shipment, we ll send all original documents to you by DHL, including Packing List, Commercial Invoice, B/L, and other certificates as required by clients.
3.How long is the delivery time?
For standard water tank less than 100m3, it would be 7-10 days; For non-standard water tank and customized water tank according to client s specific requirements, it would be 15 to 30 days.
4.How's the payment?
Telegraphic Transfer(T/T).
5.Do You Arrange Shipment For The Machines?
Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you. For EXW price, clients need to arrange shipment by themselves or their agents.
6.How is the packing?
Solid Seaworthy plywood Box Package with Steel Belt
Save space as much as possible for container loading

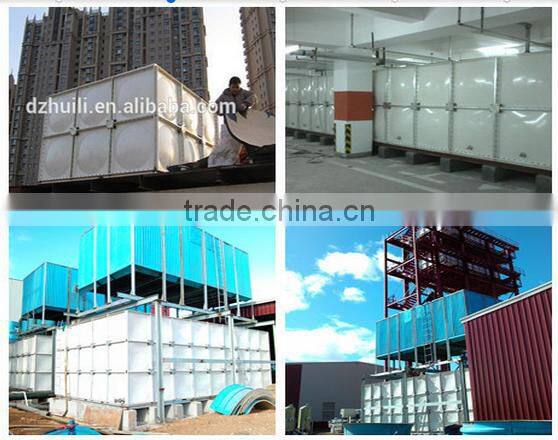

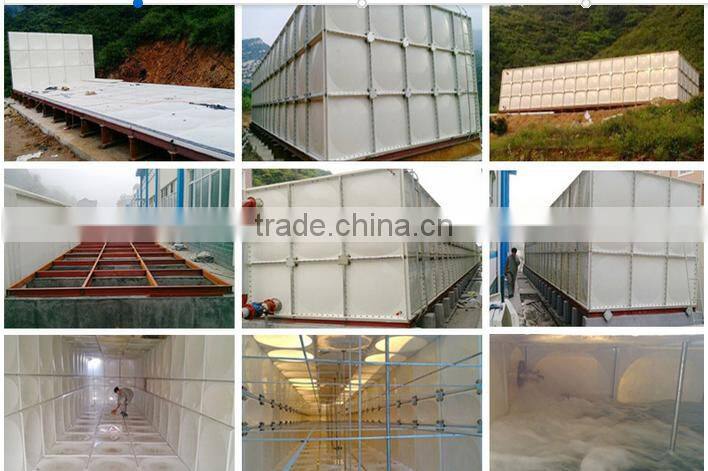

Our successful cases
