6YL-120A Copra Combined Oil Press
- any port in China
- T/T Credit Card PayPal
You May Like
-
Automated Air Conveyor Manufacturer/pneumatic Conveying System
-
Manufacturer Supply Corn Peeler and Thresher Machine
-
2016 CE Wanda the Penumatic Convey Grain Suction Machine
-
2016 CE Wanda Pnuematic Converyor Automatic Vertical Transport Grain Suction Machine
-
Automatic Vertical Transport Sweet Corn Blower Air Grain Suction Machine
-
2016 Wanda CE Long Distance Horizontal Transfer Grain Suction Machinery
Product Details
| Condition | New | Usage | Peanut Oil | |
| Type | Other, Cold & Hot Pressing Machine | Automatic Grade | Automatic | |
| Production Capacity | 6T/Day | Place of Origin | Henan, China | |
| Brand Name | WANDA | Model Number | 6YL-120A | |
| Voltage | 380V/220V | Power(W) | 1.5kw+15kw | |
| Dimension(L*W*H) | 2280*890*1770mm/1350*700*570mm | Weight | 1000kg | |
| Certification | CE/ISO9001 | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
6YL-120A copra combined oil press
(Keywords: olive oil press, gemco oil press, cold oil press)
WHY CHOOSE US ?
1.We are PROFESSIONAL factory manufacturing edible oil machine, BEST PRODUCT CAPABILITY, BEST QUALITY CONTROL, BEST SERVICE.
2.Inspected by the Inspection Institution of BUREAU VERITAS CERETIFICATION.
3.100% QC inspection Before Shippment.
4.ISO, CE listed, COMPETITIVE PRICE.
PRODUCT DESCRIPTION of screw oil press
The screw oil press manufactured by WANDA company is featured with high oil yield and good quality of oil products. By combined functions of heating, pressing, filtering all in one, it can automatically control the pressing temperature of the oilseeds. Furthermore, it adopts unique vacuum oil filter units to speep up the oil purifying, improve oil quality.
VISUAL of screw oil press
PARAMETERS of screw oil press
| Model | 6YL-80A | |
| Dia of Screw thread | Φ80 | |
| Rev of | 35r/m | |
| Power | Host machine | 5.5kw |
| Vacuum pump | 0.55kw(vp-1.5) | |
| Heater | 2.2kw | |
| Processing capacity | 150-200kg/h | |
| Weight | 820kg | |
| Dimension mm | 1420*635*1480 & 1135*530*520 | |
RAW MATERIAL of screw oil press
These seriel screw oil press suitable for soya, sesame, rapeseed, peanut and such oilseeds' heating press. Moreover, it can be converted into cooling press according to users' needs.

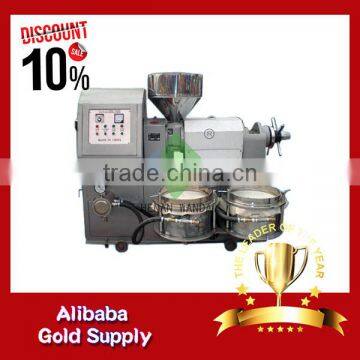

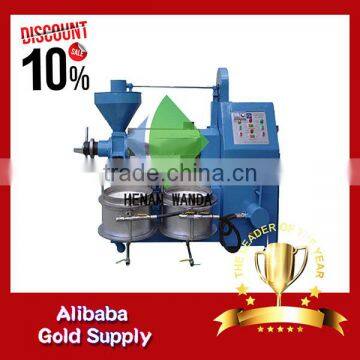

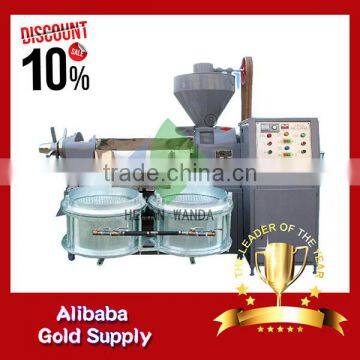

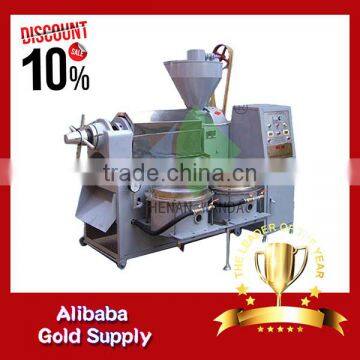

REAL PICTURES of high quality screw oil press
DELIVERY DETAILS of screw oil press
For exported goods, to lower the damage risk during transport,thicken foam will be used in package !
OUR CERTIFICATION
MORE MODELS FOR CHOICE of 6YL series screw oil press
| Specification | Speed of press screw | Power | Capacity (set) | Weight(kg) | Dimension (mm) (L*W*H) | Residual oil rate |
| 6YL-68 | 35-39r/m | 5.5kw | 40-50kg/h | 300 | 900*450*640 | <3.5% |
| 6YL-68A | 35-39r/m | 5.5kw | 40-50kg/h | 250 | 800*440*765 | <4% |
| 6YL-80 | 30-45r/m | 5.5kw | 80-150kg/h | — | 1650*1150*1750 | — |
| 6YL-80A | 20-35r/m | 5.5kw | 150-200kg/h | 820 | 1420*635*1480 | <3% |
| 6YL-80D | — | — | — | — | — | — |
| 6YL-95A | 35-42r/m | 7.5kw | 150-220kg/h | 650 | 1860*1660*1680 | <4% |
| 6YL-95B | — | — | — | — | — | — |
| 6YL-100 | 30-40r/m | 7.5kw | 150-220kg/h | 420 | 1610*615*1260 | 3-5(%) |
| 6YL-100A | 35-42r/m | 7.5kw | 150-220kg/h | 750 | 1850*1700*1780 | 3-5(%) |
| 6YL-100D | 30-40r/m | 7.5kw | 150-220kg/h | 950 | 1950*1300*1900 | <4% |
| 6YL-105 | 30-40r/m | 11kw | 150-230kg/h | 650 | 1870*640*1200 | 4.5-5.5(%) |
| 6YL-120 | 30-40r/m | 11kw | 200-300kg/h | 700 | 1750*640*131 | 4.5-6% |
| 6YL-125 | 35-39r/m | 30kw | 250-330kg/h | 800 | 2220*550*750 | <5% |
| 6YL-125A | 28-38r/m | 15kw | 210-290kg/h | 500 | 1950*760*2100 | <4.5% |
| 6YL-130 | 28-40r/m | 15kw | 250-300kg/h | 800 | 2200*1600*2150 | 3-5% |
| 6YL-130A | 35-42r/m | 15kw | 300-500kg/h | 1150 | 2250*1600*2150 | 3-5% |
| 6YL-150 | 35-39r/m | 18.5kw | 400-550kg/h | 780 | 1980*680*1460 | <4.5% |
| 6YL-150A | — | — | — | — | — | — |
| 6YL-160 | 28-40r/m | 18.5kw | 600-700kg/h | 1800 | 2500*1600*2500 | 4-5% |
| 6YL-160A | — | 18.5kw | 600-700kg/h | 1800 | 2600*940*1920 | <5 |
| 6YL-165A | 35-45r/m | 18.5kw | 700-800kg/h | 1800 | 2350*2030*2150 | 3-6.5% |
| 6YL-165B | — | — | — | — | — | — |
COMPARASION of MATERIAL used for host spiral of oil press
WANDA screw oil press adopts advanced CR12 steel which is a kind of special steel. It is usually used in military products and aerospace equipments. Since the price of CR12 steel is much expensive (price is five times as expensive as common steel). few of the civil products will adopt. After heating treatment, CR12 will be particularly hard, wear-resisting, high temperature resistance. Seldom has any other factory use this material!
OUR FACTORY
FAQ
Differences between cold pressing and hot pressing:
Cold pressing: material---sifting---oil pressing
The first step is to sift the oil plant and remove the impurities, and then test the moisture content of oil plants. For example, a local method can be used to test the rape seed for pressing: squeeze the rape seed by nail; if it has sound and divided into two pieces, or it has oil exceeded from it, it is suitable for pressing at this time. If it becomes powdery, it means too dry; if it becomes cakes, it means too damp. If it is too dry, 2.5-3% water content should be added, and wait for a moment, then the material are put into the oil press directly.
Hot pressing: material---sifting---heating(steaming,ect)—oil pressing
For example, pressing rape seed, the rape seed are put into the sifting to remove the impurities. Then the materials are put into the roaster and enter into the roaster to heat, adding 2-3% water content into the roaster during heating process. When the rape seed has brown color and the temperature is up to 110-120 degree, the material can be put into the oil press.
In fact, the most important distinction between cold pressing and hot pressing lay on whether the oily plant are cooked or not. Certainly, the hot pressing has high oil output from the cold pressing. But for sunflower, it is necessary to press though cold pressing. Or the machine can not work.
We provide whole production line includes:oil material shell removing machine,cylinder roaster,oil press machine,centrifugal oil filter,oil refining machine. with premium quality and all of our machines are features of simple design, easy operation, high oil yield and continuous operation. I believe that there will always be a machine that can satisfy your oil making need!
If you have any questions for any details or the price,please don't hesitate to tell me!
NOTES: SEA TRANSPORTATION ARE HIGHLY SUGGESTED. THE SHIPPING COST HERE IS JUST FOR REFERENCE ONLY, DETAILLED FEE PLEASE CONTACT US TO CONFIRM! TKS FOR YOUR BETTER UNDERSTANDING.
| Nancy Wang (Manager) | |
| Email: juliawanda(at) | |
| Tel: +86 371 60101636 | |
| Mobile: +86 18625859654 | |
| Fax: +86 371 60101635 |
