High Capacity Ceramic Structured Tower Packing, Ceramic Scrubber Packing

Introduction:

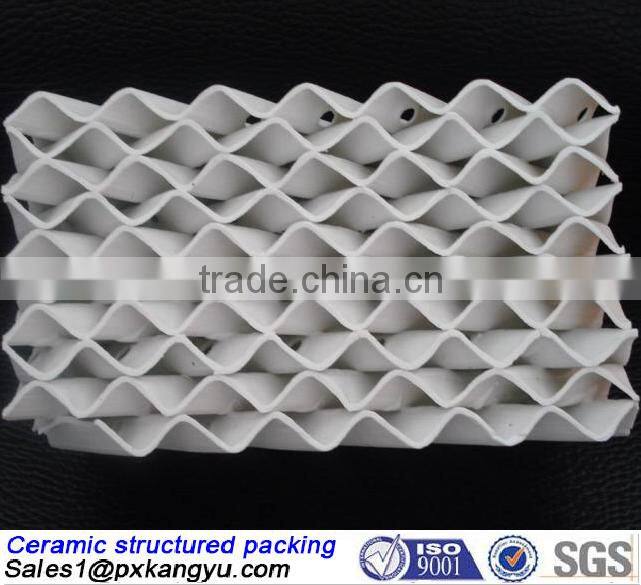

Ceramic Structured Packing consists of many packing units of similar geometric design. Corrugated sheets placed in parallel formcylindrical units called corrugated tower packing.

These are a form of highly efficient packing with separating efficiency several times higher than that of loose packing.

They have the quality of low-pressure drop, increased operating elasticity, minimum amplifying effect, and maximum liquid treatment compared to loose tower packing.

Chemical composition:

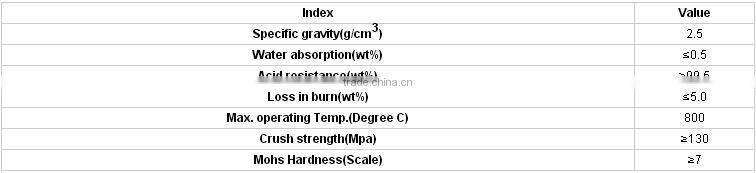

Physical property:

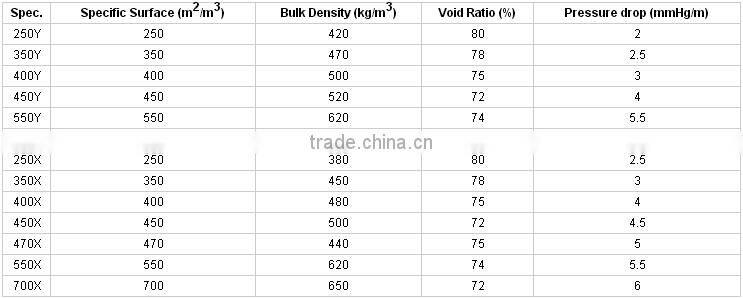

Geometric characteristic:

Advantage:
1) High capacity. New tower design may reduce diameter, while renovate old towers may increase capacity significantly.
2) High separation efficiency. Since it has much larger specific surface area compared to random packing.
3) Low pressure drop, which leads to reduce energy consumption largely.
4) Large flexibility, and scale effect is not obvious.
5) Suitable for all tower diameters.
6) Strong resistance to corrosion of acid and alkali, especially to H2S, naphthenic acid and Cl-

Applications:

1) Rectifying organic halide.
2) Rectifying and absorbing some corrosive mixtures, which are definitely regulated in pressure drop and theoretic plate number.
3) Applied in some towers that contain a large quantity of natural media used to absorb nitric acid and concentrated sulfuric acid, as well as for purifying the air in chemical plants.
4) Operating in vacuum conditions at a bottom absolute pressure of 100pa.
5) Used in heat exchanger and demisting, or as a catalyst carrier.

Q: What is your MOQ?

A:  Our product MOQ is 1000kg&1m³

Q:  What is the delievery time?

A:   It takes aroud 10-15days for one 20" container.

Q:  What is the shipping port?

A:  Shanghai,Shenzhen,Qingdao.

Q:  What is payment terms?

A:  T/T,L/C, West Union.

Q: What information should I offer to you if I want to know the price?

A: Appication/usage,Size,Material,Quantity,Package term,Delievery time,Payment term,Destination.

Q: What is your warranty?

A: By National Standard GBT 10504-2008, Offer lifetime consultation on problems occurred.

We Specialized in Manufacturing  molecular sieve, random and structured chemical packing in ceramic, plastic & metal, honeycomb ceramics, inert ceramic balls, activated alumina, alumina grinding balls, etc.

We has an annual manufacturing capacity of 5000 ton molecular sieves, 20000 m3 of varieties types of chemical packings, 3000 m3 of honeycomb ceramics and 5000 m3 of inert ceramic balls, 2000 ton activated alumina etc.

We promise to reply you in 24hours, OEM & ODM service for your unique idea with absolute convenience. We value our business credit, promise to keep your company information confidential.If any inquiry or problem.Please feel free to contact with me.
