Ceramic Structured Packing Used in Coal Gas Washing Tower
- Qingdao Shenzhen
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Jiangxi, China | Type | Ceramic Rings | |
| Application | Industrial Ceramic | Material | Alumina Ceramic | |
| Model Number | Ceramic Structured Packing | Brand Name | ky |
Product Description

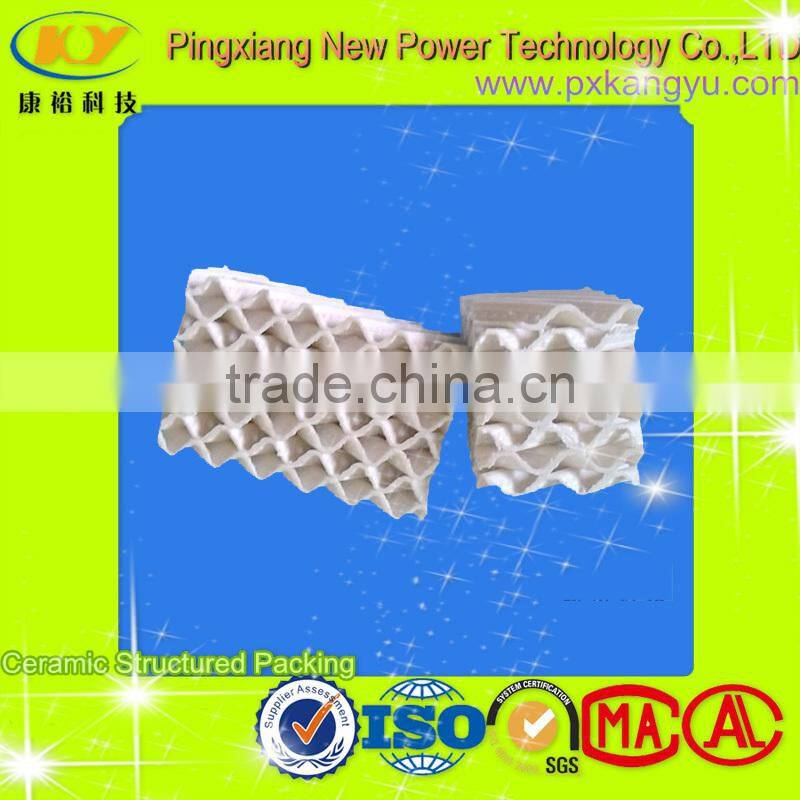

Ceramic Structured Packing consists of many packing units of similar geometric design. Corrugated sheets
placed in parallel form cylindrical units called corrugated tower packing. These are a form of highly efficient
packing with separating efficiency several times higher than that of loose packing.
They have the quality of lowpressure drop, increased operating elasticity, minimum amplifying effect, and maximum
liquid treatment compared to loose tower packing.
In Regular , there have X and Y type for customer optiional. X type: with 30° bliquty, Y type:45° bliquty.X tpye
packing have smaller pressure drop, and Y type have better mass transfer effect.
Advantages
1 .Acid resistance:above 99.8%
2 .Alkali resistance:92%
3. Temperature:0~1300
4 .Compression strength:>20kg/cm
5 .Moh's Hardness:>7
6. Corrugated plated
7. High capacity.New tower design may reduce diameter, while renovate old towers may increase ca pacity significantly
8.Good separation,Since it has much larger specific surface area compared to random packing.
9. Low pressure drop, which leads to reduce energy consumption largely
10. Large flexibility, and scale effect is not obvious
11.Suitable for all tower diameters.
Technical Parameter
specifcation | ||||||||
Product: Ceramic Structured Packing | ||||||||
Type | Void Rate (%) | Thickness | Crest Wave
| Pitch Wave | Incline Angle | Packing Factor | Theoretical Plate Number | Bulk Density |
100Y | 87.5 | 2.5±0.5 | 30 | 50 | 80 | 3.5 | 1 | 300 |
125Y | 85 | 2.5±0.5 | 23 | 42 | 80 | 3 | 1-1.5 | 370 |
160Y | 84 | 2.2±0.2 | 17 | 30 | 80 | 2.8 | 1.5-2 | 384 |
250Y | 82 | 1.4±0.2 | 13 | 22 | 80 | 2.5 | 2-3 | 450 |
350Y | 80 | 1.2±0.2 | 9 | 15 | 80 | 2 | 3.5-4 | 490 |
450Y | 76 | 1.0±0.2 | 6 | 11 | 80 | 1.5-2 | 4-5 | 552 |
550Y(X) | 74 | 0.8±0.2 | 5 | 10 | 80 | 1.4-1.8 | 6-7 | 620 |
650Y | 73 | 0.8±0.2 | 4.5 | 9 | 80 | 1.2-1.5 | 6-7 | 640 |
700Y(X) | 72 | 0.8±0.2 | 4.5 | 8 | 80 | 1.2-1.4 | 5-6 | 650 |
Remark | We also can customize the products as your requirements. | |||||||
Chemical composition
SiO2 | Fe2O3 | CaO | Al2O3 | MgO | Other |
≥72% | ≤0.5% | ≤1.0% | ≥23% | ≤1.0% | 2% |
Physical property
Index | Value |
Specific gravity(g/cm3) | 2.5 |
Water absorption(wt%) | ≤0.5 |
Acid resistance(wt%) | ≥99.5 |
Loss in burn(wt%) | ≤5.0 |
Max. operating Temp.() | 800 |
Crush strength(Mpa) | ≥130 |
Mohs Hardness(Scale) | ≥7 |
Applications
1.Rectifying organic halide.
2.Rectifying and absorbing some corrosive mixtures, which are definitely regulated in pressure drop and theoretic plate number.
3.Applied in some towers that contain a large quantity of natural media used to absorb nitric acid and concentrated sulfuric acid, as well as
for purifying the air in chemical plants.
4.Operating in vacuum conditions at a bottom absolute pressure of 100pa.Used in heat exchanger and demisting, or as a catalyst carrier.
We promise to reply you in 24hours, OEM & ODM service for your unique idea with absolute convenience. We value our business credit, promise to keep your company information confidential.If any inquiry or problem.Please feel free to contact with me.
Grace Zhang
Whatsapp/TEL:008613767885030
QQ: 84781705
Skype: yakegrace
Wechat: xz9426
TM: cn1000900349
Why choose products from KANGYU ?
1. Specialize in this field for more than 10 years.
2. More than 1000 workers, Strong ability of production.
3. Shorter delivery time.
4. Rich variety of products:molecular sieve,random and structured chemical packing in ceramic,plastic&metal honeycomb ceramics,inert ceramic balls,activated alumina,alumina grinding balls,expanded perlite,porous ceramic filter pipe and so on.
5. Competitive price,modern appearance.
6. Do any sticker you need(OEM,ODM).
7. Going green and environmental protection:No mercury, No radition, No UV.
8. Honesty is the most important
Q: What is your MOQ?
A: Our product MOQ is 1000kg&1m³
Q: What is the delievery time?
A: It takes aroud 10-15days for one 20" container.
Q: What is the shipping port?
A: Shanghai,Shenzhen,Qingdao.
Q: What is payment terms?
A: T/T,L/C, West Union.
Q: What information should I offer to you if I want to know the price?
A: Appication/usage,Size,Material,Quantity,Package term,Delievery time,Payment term,Destination.
Q: What is your warranty?
A: By National Standard GBT 10504-2008, Offer lifetime consultation on problems occurred.
We Specialized in Manufacturing molecular sieve, random and structured chemical packing in ceramic, plastic & metal, honeycomb ceramics, inert ceramic balls, activated alumina, alumina grinding balls, etc.
We has an annual manufacturing capacity of 5000 ton molecular sieves, 20000 m3 of varieties types of chemical packings, 3000 m3 of honeycomb ceramics and 5000 m3 of inert ceramic balls, 2000 ton activated alumina etc.
Welcome to our factory and negotiate business. We trust we will be your best supplier in China.
