2016 NEWEST JHS-P Mixer Machine Fuel Injection Pump Service in Egmore

wooden case or as customer required

   2016 NEWEST JHS-P mixer machine fuel injection pump service in egmore

Website:

Company introduction:

Our company Zhengzhou Jintai Metal Materials Co., Ltd is a leading technology-dominated innovative professional manufacturer for mixing machine JINHE® brand double movement mixer with national patent product and proprietary intellectual property rights established in 2001.We can also design and manufacture mixer on customer' demand. The mixing machine is used for the homogeneous mixing of powders or different components with differing specific weights and particle sizes. The company's production bases is located in No. 1 Zhongxing Road, Xinzheng City, Henan Province, China and headquarter in Weilai Gardern, No. 71 Weilai Road, Zhengzhou City, Henan Province, China.

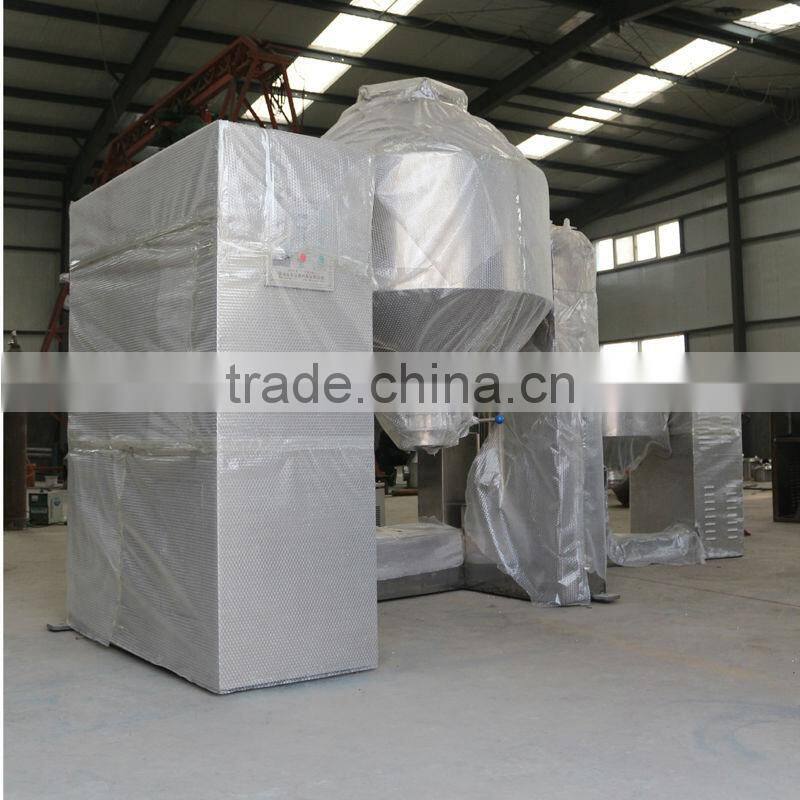

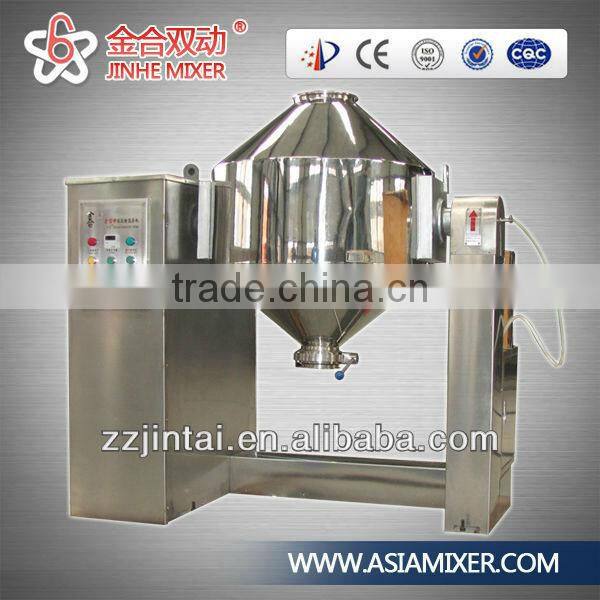

JHS-P stainless steel mixer

Thanks for choosing our high efficiency energy-saving mixing machine. In order to preferably operate this equipment, please read this operating manual carefully before operation

Overview

JHS-P type double cones mixer is used for several small batches mixing aggregated for a big batch in order to ensure the consistency of product performance, while small amount of fluid sprayed into powder materials. Therefore requirement for this equipment is large capacity, uniform spray fluid, operate stably, safe and convenient to use, but the requirements for mixing standard is not too high. JHS-P type double cones mixer is produced as the above requirements.

MainFeatures

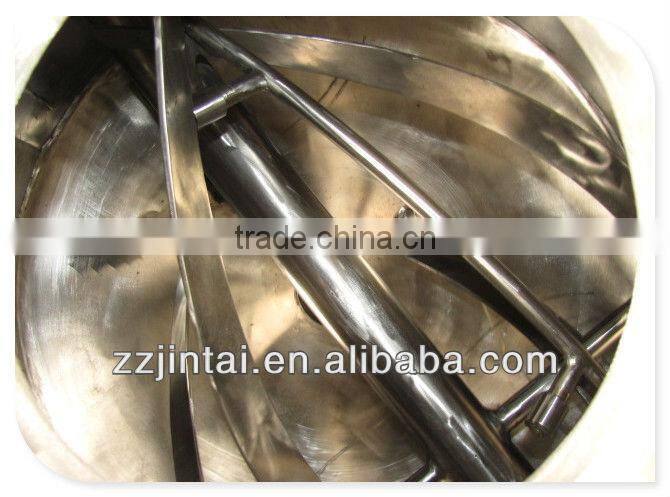

This equipment adopts single movement mixing principle, inside the barrel stationary type 8 pieces of huge helical blades were designed, this will helps reduce equipment cost and improve mixing efficiency. When machine works, dry powder rolling at the bottom of barrel, helical blades' function is make dry powder move to left and right and thus mixing completely. At the same time, as metering pump exists, fluid was uniformly sprayed into powder materials though nozzle. So by this simple rotating structure, mixing efficiency can be improved, and in the process of mixing, the sprayed fluid can be thoroughly mixed with dry powder

Technical parameter

1. Powder Mixing machine Specification

2. Powder mixing machine Metering Pump Specification

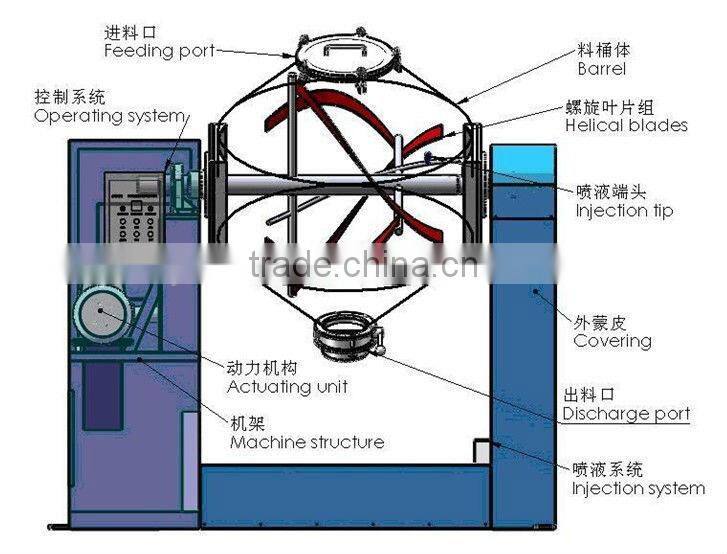

Structure Scenograph

....

....
