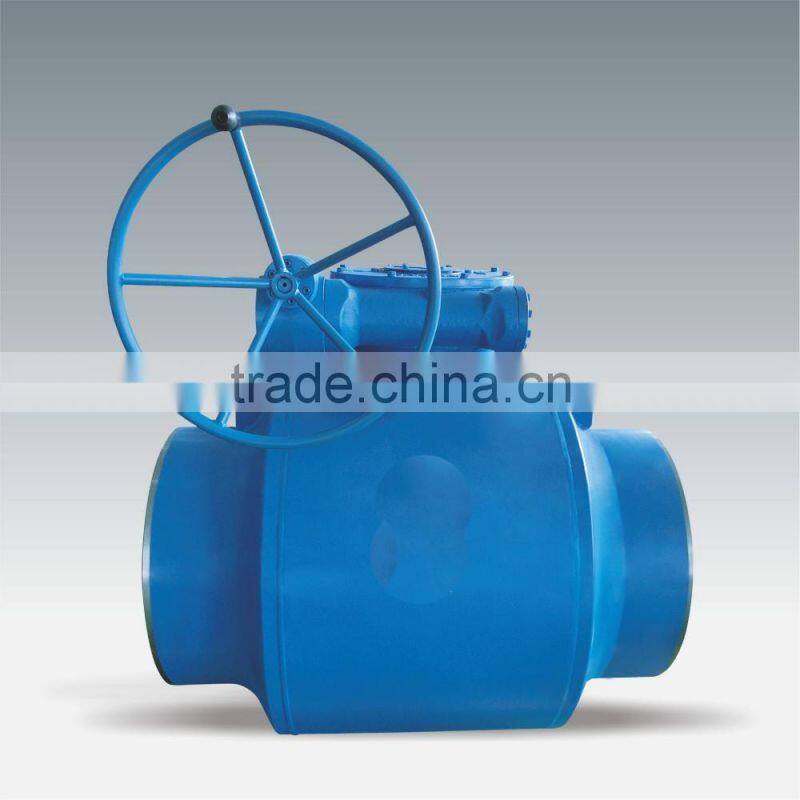

Top Selling Hot Water Pipeline Use Water Tank Float Electric Globe Ball Valve
- dalian
You May Like
Product Details
| Standard or Nonstandard | Standard | Structure | Ball | |
| Pressure | Medium Pressure | Power | Manual | |
| Material | Stainless Steel | Temperature of Media | High Temperature | |
| Media | Water | Application | General |
Product Description
| unit:millimetre(mm) | |||||||||
| Size | NPS | A | B | L | D | D1 | D2 | E | |
| CN | EN | ||||||||
| DN200 | 8 | 252 | 500 | 550 | 200 | 219 | 219.1 | 356 | 345 |
| DN250 | 10 | 236 | 500 | 580 | 250 | 273 | 273.1 | 457 | 402 |
| DN300 | 12 | 331 | 600 | 630 | 300 | 325 | 323.9 | 508 | 491 |
| DN350 | 14 | 331 | 600 | 762 | 337 | 377 | 355.6 | 559 | 479 |
| DN400 | 16 | 360 | 700 | 840 | 387 | 426 | 406.4 | 660 | 540 |
| DN500 | 20 | 413 | 800 | 1010 | 489 | 530 | 508 | 812 | 662 |
| DN600 | 24 | 433 | 900 | 1140 | 591 | 630 | 609.6 | 1016 | 790 |
| DN700 | 28 | 433 | 900 | 1346 | 686 | 730 | 711.2 | 1095 | 860 |
| DN800 | 32 | 433 | 900 | 1524 | 781 | 830 | 812.8 | 1237 | 913 |
| DN900 | 36 | 433 | 900 | 1727 | 874 | 930 | 914.4 | 1385 | 965 |
| DN1000 | 40 | 550 | 900 | 1900 | 976 | 1020 | 1016 | 1600 | 970 |
| DN1100 | - | 550 | 900 | 2000 | 1020 | 1130 | 117.6 | 1700 | 975 |
| DN1200 | 48 | 550 | 900 | 2100 | 1166 | 1230 | 1219.2 | 1967 | 980 |
| DN1300 | - | 550 | 900 | 2200 | 1262 | 1320 | 1320.2 | 2100 | 990 |
| DN1400 | - | 550 | 900 | 2300 | 1360 | 1430 | 1422.4 | 2281 | |
| unit:millimetre(mm) | |||||||||
| Size | NPS | A | B | L | D | D1 | D2 | E | |
| CN | EN | ||||||||
| DN200 | 8 | 243 | 400 | 400 | 150 | 219 | 219.1 | 267 | 315 |
| DN250 | 10 | 252 | 500 | 560 | 200 | 273 | 273.1 | 356 | 346 |
| DN300 | 12 | 236 | 500 | 635 | 250 | 325 | 323.9 | 457 | 402 |
| DN350 | 14 | 331 | 600 | 650 | 300 | 377 | 355.6 | 508 | 491 |
| DN400 | 16 | 331 | 600 | 760 | 337 | 426 | 406.4 | 559 | 479 |
| DN450 | 18 | 331 | 600 | 842 | 337 | 477 | 457.2 | 559 | 479 |
| DN500 | 20 | 360 | 700 | 910 | 387 | 530 | 508 | 680 | 540 |
| DN550 | - | 360 | 700 | 1065 | 438 | - | - | 718 | 577 |
| DN600 | 24 | 413 | 800 | 1092 | 489 | 630 | 609.6 | 812 | 662 |
| DN650 | - | 413 | 800 | 1245 | 540 | - | 660.4 | 898 | 755 |
| DN700 | 28 | 433 | 900 | 1346 | 591 | 730 | 711.2 | 1016 | 790 |
| DN750 | - | 433 | 900 | 1397 | 635 | - | 768 | 1020 | 835 |
| DN800 | 32 | 433 | 900 | 1524 | 686 | 830 | 812.8 | 1095 | 860 |
| DN850 | - | 433 | 900 | 1625 | 737 | - | 863.6 | 1172 | 793 |
| DN900 | 36 | 433 | 900 | 1727 | 781 | 930 | 914.4 | 1237 | 913 |
| DN1000 | 40 | 433 | 900 | 1900 | 874 | 1020 | 1016 | 1385 | 968 |
| DN1100 | - | 550 | 900 | 2000 | 976 | 1130 | 1117.6 | 1600 | 970 |
| DN1200 | 48 | 550 | 900 | 2100 | 1020 | 1230 | 1219.2 | 1700 | 975 |
| DN1300 | - | 550 | 900 | 2200 | 1166 | 1320 | 1320.2 | 1967 | 980 |
| DN1400 | - | 550 | 900 | 2300 | 1262 | 1430 | 1422.4 | 2100 | |
Five Advantages:
1. integral seamless steel tube pressed full-auto welded without leaking outward.
2. PTFE+25% carbon fiber and disc spring feely compensating structure zero leakage.
3. can be directly buried without need of a high ground well,saving the engineering cost.
4. both valve and pipeling are made of the same material, without the condition of uneven sterss.
5. in multiple connection combination, for use with special working conditions
This series of products are reliable sealing performance, maintenance-free for 20 years,can be installed in heat transfer machine room, heat the main line, branch pipelines, heat exchangers and other ancillary equipment or device is connected.use for cut off . The main use of the urban heat, city gas, city water supply and drainage lines
IF YOU NEED THE FULL SET, PLEASE FEEL FREE LET US KNOW
WHATS APP:+86 18704001416
SKYPE:ACECARE06
Payment term:
T/T, Western Union, Paypal, L/C
Trade term:
EXW or FOB or CFR or CIF or CPT or CIP
Packing detail:
Wooden box, Ply-wood box, Carton box, Pallet
Delivery time:
It depends on the purchasing quantity and the stock condition, if the products are available in the warehouse, we can arrange the delivery very soon, or a few days after receiving the deposit.
Min. order:
If the ordered products are in stock. No MOQ limited.
if not,ordered quantity can be discussed with us.

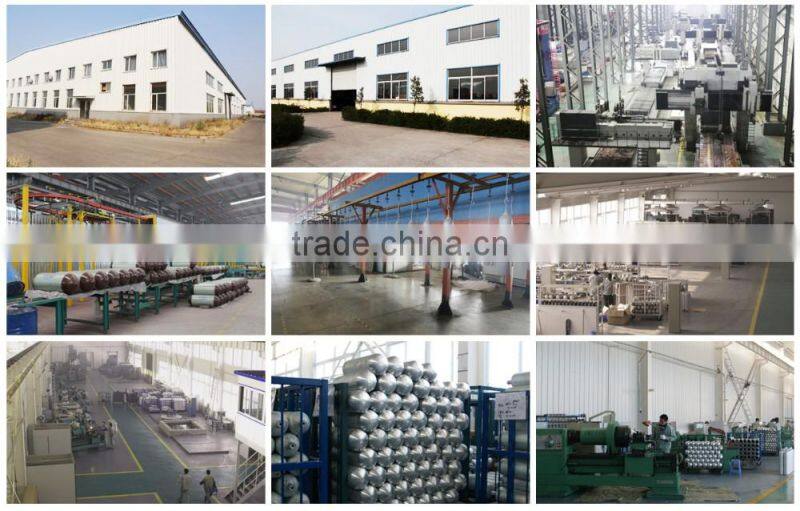

Shenyang Acecare Technology Co., Ltd. is located in Shenyang which is the capital and the largest
