Soft Capsule Machine in Capsule Filling Machine

Soft capsule machine in capsule filling machine

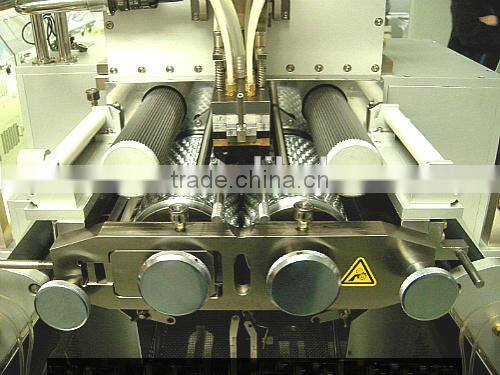

Specification of S403 Micro-production Softgel Encapsulation Line:

1. Filling tolerance<±1.5%
2. Maximum single plunger dosage- 2ml
3. Die Roller Size— 80x100mm
4. Die Roller Speed — 0~5rpm, steplessly adjustable
5. Main Motor Power— 0.75 kW
6. Main Machine Power — 3kW
7. Power — 3 Phase 220V/380V415V,50Hz/60Hz
8. Overall Dimensions(L x W x H)— 1050 x 500 x 900)mm
9. Weight— 600kg
10. The cooling drums are cooled by both water and air.
11. Consumption of compressed air— 50NL/h
12. Consumption of gelatin— 2.5L/h( at 3 rpm)
13. Material consumption — 4.6L/h(at 3 rpm)
14. Lubrication oil consumption — 70g/h(Based on 3 rpm)
15. The requirement for space — 20m2

Tumble Drier   (2 baskets)

To be fit for the main machine

 (Basket size)—580 x 900mm

 Effective loading storage> 20kg (each basket)

    Motor Power —three Phase 380V/415V, 50Hz/60Hz,0.37Kw

    Fan Motor Power —3 Phase 380V/415V, 50Hz/60Hz,0.32Kw

    Running speed —0-20rpm (The speed is variable steplessly)

    Weight—310Kg

 Gelatin Melting and Service Tank (Model: GST—105)

1. Electrical heating
2. Three layers ( Thermal insulation and heating)
3. Top compressed air supply
4. Stirring speed—51rpm
5. Motor power—single Phase 220V/240V,50Hz,0.55kw
6. Heating power—220V/240V,50Hz 4kw
7. Temperature adjusting scope—20~100ºc
8. Weight —160kg

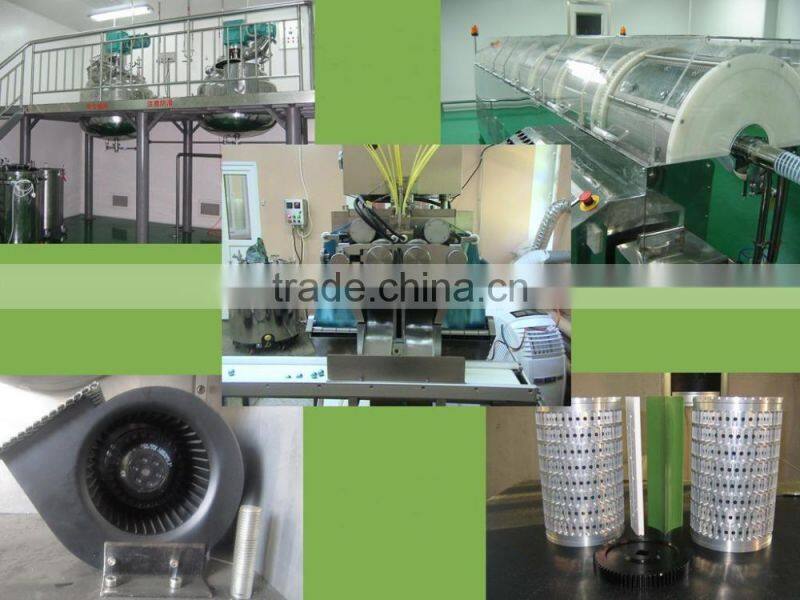

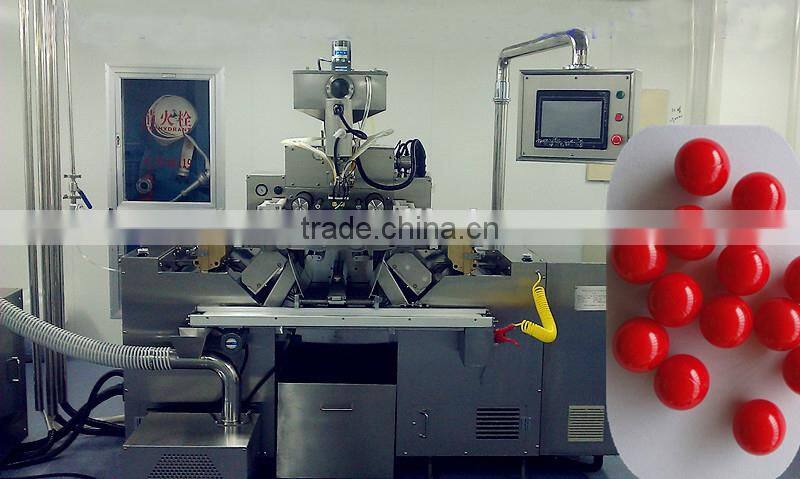

Main machine and drying machine:

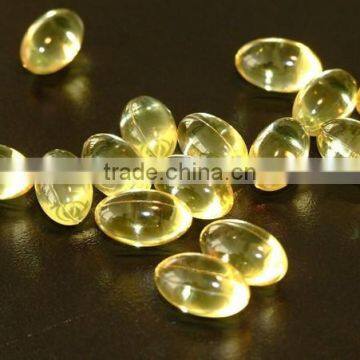

Capsules shapes:

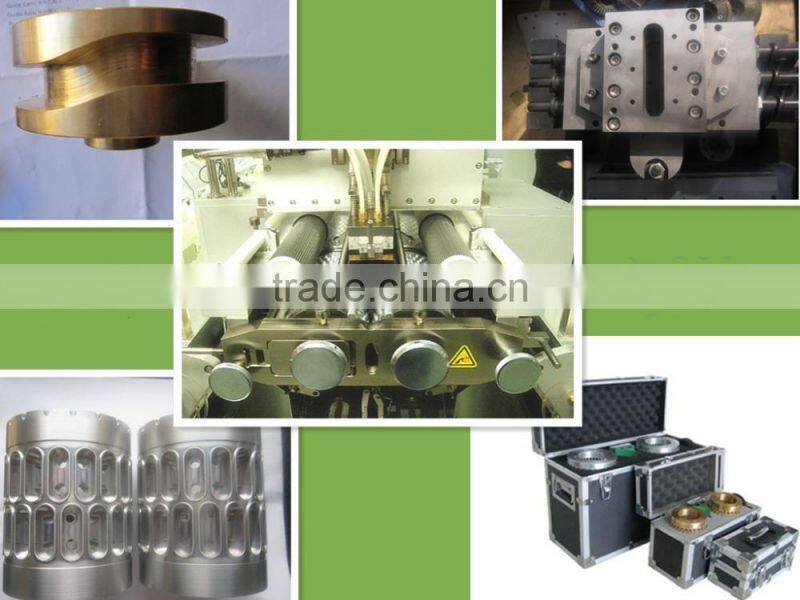

Spare parts of S403 Micro-production Softgel Encapsulation Line :
