Gsm gprs terminal q2406b Q24plus Q2403A Q2303A MC45 M1306B M1206B MC55I MC75 Terminal

Specifications

1.gsm gprs terminal q2406b Q24plus Q2403A Q2303A MC45 M1306B M1206B MC55I MC75 MODEM
2.dual or quad band
3.rs232 or usb interface

4.made by siemens or Wavecom module

Q24 plus modem

Product Description

Industrial design
Aluminum casing
Wireless access to internet
Based on Wavecom module Q24 plus
With TCP/IP protocol stack
quad-band 850/900/1800/1900MHZ
3V SIM card slot
DB9 RS232 or USB interface
SIM Application Toolkit
Double tone multi-frequency function (DTMF)
Send and receive data, e-mail, SMS
Maximum transmitting speed 115.2KB/s
GPRS Class 10
Antenna with high sensitivity
Always on-line
Comply with ETSI GSM Phase2+ standard
Output Power: Class 4(2W @ 850/900MHz), Class 1(1W @ 1800/1900MHz)

2406B  MODEM

Dual Band EGSM/GPRS 900/1800 MHz
 Compliant to GSM phase 2
 GPRS Class 2
 Output power: Class4 2W for EGSM900
                 Class2 1W for GSM1800
 Control via AT commands
 SIM application tool kit
 Supply voltage range: 3.1 to 4.5VDC
 Temperature range: -20 to +55 (operational functionality)
                      -30 to +85 (storage temperature)
 Dimensions: 58.3x 32.2x 3.9mm
 Weight: 17g
 Voice: noise suppression and echo cancellation
 SMS: Text and PDU mode, Point to point (MO/MT), Cell broadcast
 DATA: Transparent and non transparent CSD up to 9.6kbps, USSD,
 Interfaces: RF connector, 60 pin system connector,
             SIM card connector, keypad and LCD etc.

Accessories
 GSM/GPRS antennas
 60 pin system connector
 SIM card holder
 U.FL to SMA RF cable

M1206B M1306B modem

Industrial design
Aluminum casing
Wireless access to internet
Based on Wavecom module Q24 Plus
With TCP/IP protocol stack
Dual-band 850/900/1800/1900MHZ
3V SIM card slot
DB9 RS232 or USB interface
SIM Application Toolkit
Double tone multi-frequency function (DTMF)
Send and receive data, e-mail, SMS
Maximum transmitting speed 115.2KB/s
GPRS Class 10
Antenna with high sensitivity
Always on-line
Comply with ETSI GSM Phase2+ standard
Output Power: Class 4(2W @ 850/900MHz), Class 1(1W @ 1800/1900MHz)
I Input voltage:5V-36V DC
Input current:1A-2A
Standby current: 56mA
Working current: 100-140mA
Working temperature :-20 ? -+55 ?
Storage temperature:-25 ? -+70 ?
Size:85*54*25mm
Weight:110g
Accessories: AC/DC adaptor, RS232 cable, antenna, 2 mounting plates, CD

Q2303A MODEM

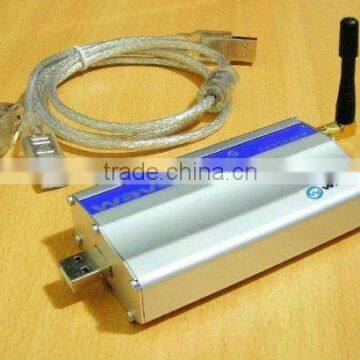

1.USB RS232 GPRS MODEM with Wavecom Q2303A Module
Industrial design
Aluminum casing
Wireless access to internet
Based on Wavecom module Q2403A
Dual-band 900/1800MHZ
Support dual band GSM/GPRS
Complied with ETSI GSM Phase 2+ standard
Support A5/1&A5/5 encrypted arithmetic
Enhanced Function
GPRS link detection and redial (work with Microsoft dialup software)
Support dialup control
Send SMS via PC
The ultra compact dual-band GF-2000 GPRS Modem has all the right industry standard interfaces for GPRS Class 8 data, voice, SMS and fax applications. It can be powered by a wide range of voltages. A built-in SIM card reader makes it easy to plug the GF-2000 GPRS Modem into your application. It has full type approval according to R&TTE, GCF as well as approvals for E-marking.

Please Note: The accessories, AC adapter, RS232 cable and GSM antenna will be required, along with a GSM/GPRS SIM card to operate and use the unit.
