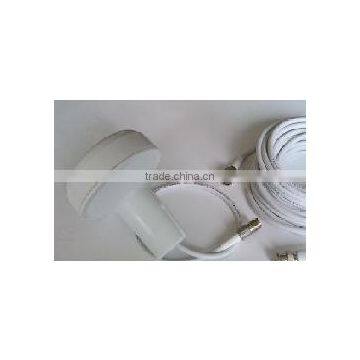

GPS Antenna MA-700B

Specifications

MA700 is designed for the Marine Vessels mast or tall buildings that require long extra cables

without signal constraint to the GPS receivers. MA700 is not only hidden in a durable and

waterproof cover, but also cable is protected by a base which can prevent damage. The special

design for MA700 is really delicate, compact and reliable. Besides that have concinnity and

compacted design for base. It is the integration of the high performance GPS patch antenna and a

low noise amplifier into an extremely fully waterproof enclosure and when connected to a GPS

receiver with 2.5~5.5VDC antenna power, it can provide excellent antenna signal amplification and

out-band filtering with rejection for that receiver at 3V DC or 5V DC input Voltage.

Specifications

Antenna Element

Center Frequency 1575.42 MHz +/-1.023 MHz

Polarization R.H.C.P. (Right Handed Circular Polarization)

Absolute Gain @ Zenith +5 dBi typical

Gain @ 10o Elevation -1 dBi typical

Axial Ratio 3 dB max.

Output VSWR 1.5:1 max.

Output Impedance 50 ohm

Low Noise Amplifier

Center Frequency 1575.42 MHz +/- 1.023 MHz

Power Gain 28 +/-4.5dB

Bandwidth 2 MHz min.

Noise Figure 1.5 max.

Outer Band Attenuation 20 dB min. @ Fo +/-50 MHz

Supply Voltages 2.5 to 5.5V DC

Current Consumption 13mA@ 3.0V DC,18mA@ 5.0V DC

VSWR 1.5 max.

Output Impedance 50 ohm

Overall Performance: (antenna element, LNA & coax cable)

Center Frequency 1575.42 MHz

Gain 30 +/-4.5dB

Noise Figure 2.0 max.

Bandwidth 2 MHz min.

Axial Ratio 3 dB max.

VSWR 1.5 max.

Output Impedance 50 ohm

Environmental Conditions

Operating Temperature -30oC to +80oC

Storage Temperature -40oC to +100oC

Relative Humidity 40% to 95% non-condensing

Water Resistance 100% waterproof IPX7

Physical Constructions

Constructions Enclosure Center feeds TNC connector for antenna output

Antenna - 90.5mm(Dia.)_108.5mm(H)

Dimensions

Weight 150 grams (without cable)

Standard Mounting Concinnity and _____ design

Cable & Connector

RF TNC(M)-10 meter RG58/U –BNC(M) other types (optional)

Cable Pulling strength 12Kg for 5sec.

Connector available 30CM-TNC(F) other types (optional)

_ This specification is subject to change without prior notice
