2015 New Product Sma Bar Antenna / Gsm Antenna 900/1800 Mhz Gsm Antenna With Low Price
- Shenzhen port
- Credit Card PayPal
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | Shanhai | |
| Model Number | SH-GA86 |
Product Description
2015 new product sma bar antenna / gsm antenna 900/1800 mhz gsm antenna with low price

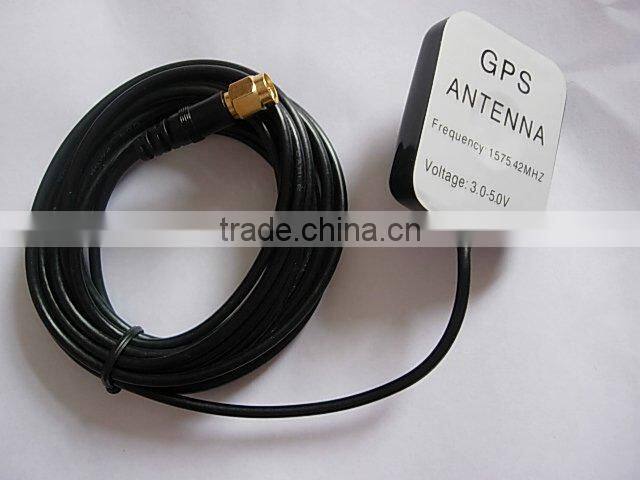

sma bar antenna
Specifications:
Dielectric Antenna
Center Frequency:1575.42±3 MHz
V S W R:1.5:1
Band Width:+-5 MHz
Impendence:50Ω
Peak Gain:3dBic
Based on 7×7cm ground plane
Gain Coverage:4dBic
Polarization:RHCP
LNA/Filter
LNA Gain Without cable:28dB Typical
Noise Figure:1.5dB
Filter Out Band Attenuation:1575.42MHz/
7dB Min f0+/-20MHz;
20dB Min f0+/-50MHz;
30dB Min f0+/-100MHz
V S W R:2.0
DC Voltage:3V-5C
DC current:5mA,10mA,Max
Related Photos:
Mechanical
Size:48.5X37X15mm
Cable:RG174 5M
Connector:SMA,MCX,MMCX, SMB or other
Mounting:Magnetic base/sticking
Housing:Black
Environmental
Working Temp:40degree C~+85degree C
Vibration:Sine sweep 1g(0-p)10~50~10Hz each axis
We can customize for you any kinds of antenna,please contact me and send your requirement,thank you!
