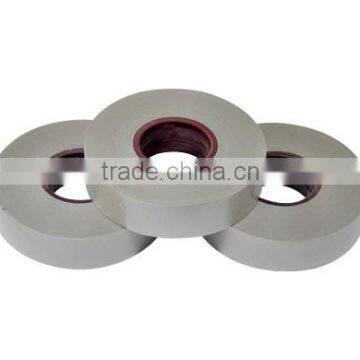

Double-side Synthetic Mica Tape With Glass Fiber
- shenzhen
- T/T
You May Like
-
China Double-side Mica Tape for Glass
-
China Popular Double-side Mica Tape for Glass
-
Fire Resistant Mica Tape for Cable Material Prone to Diversion Mica Glass Sheet
-
LONGTAI Wholesale Mica Insulation Tape
-
LONGTAI Phlogopite Mica Tape
-
LONGTAI Glass Fabric and Polyimide Film Mica Tape for Motor Insulating
Product Details
| Material | Other, Mico | Application | Machine Packing | |
| Place of Origin | Jiangxi, China | Brand Name | anshi | |
| Model Number | 067 |
Product Description
Mica tape
Mica Plate is mica lamination designed for providing outstanding electrical insulation at high temperature, which consist of approximate 90% Muscovite(or Phlogopite)and 10% temperature resistant silicone resin.
Prorerties
1. Excellent thermal resistance, muscovite mica retain insulation properties at 500℃ and phlogopite mica sheet resistant tem perature up to 750℃.
2. Excellent electric insulation, normally the breakdown voltage is more than 15KV/mm.
3. Excellent flexural strength and easy to be punched and machined.
4. Environmental safe. It is incombustible, asbestos and halogene free and does not create toxic gases.
| Item | two- side synthetic mica tape with glass fiber | |||
| tapy | 067 | |||
| thickness (mm) | 0.14±0.015 | 0.17±0.015 | 0.14±0.015 | 0.16±0.015 |
| quantitate (g/m²) | 202±13 | 224±16 | 204±14 | 227±18 |
| mica content (g/m²) | 140±5 | 160±5 | 140±5 | 160±8 |
| glass fiber content( g/m²) | 42±4 | 42±4 | 22±3 | 22±3 |
| resin content (g/m²) | 20±4 | 22±4 | 20±3 | 23±4 |
| distrubtive strength(kv/layer) | >1.6 | >2.0 | >3.0 | >3.0 |
| tensile strength(n/cm) | >120 | >120 | >120 | >120 |
Available
1. Thickness:6--100mm
- 2. Size:1000*600mm 1000*1200mm 1000*2400mm
Thickness below 2.0mm can be punched, while above 2.0mm can be machined by agreement.
Storage
No limitation under dry and room temperature.
