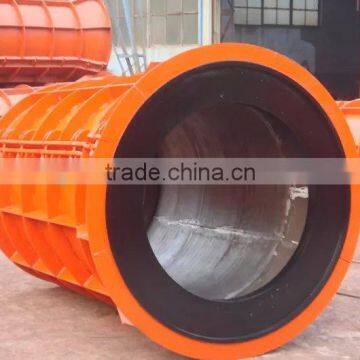

prestressed concrete pipe mould

Specifications

pipe diameter:300-2000mm
pipe length:2000mm

mouth type:sock mouth and flat mouth

mold type:300*3000 sock mouth type and flat mouth type

                 400*3000 sock mouth type and flat mouth type

                 500*3000 sock mouth type and flat mouth type

                 600*3000 sock mouth type and flat mouth type

                 800*3000 sock mouth type and flat mouth type

                1000*3000 sock mouth type and flat mouth type

                1200*3000 sock mouth type and flat mouth type

                1500*3000 sock mouth type and flat mouth type

                 2000*3000 sock mouth type and flat mouth type

Other specifications can be produced according to customer requirement!!

Character of Suspension Roller type Concrete Pipe Machine

1 Short production Cycle: because of the good effect of the roller to compact the concrete, every pipe just need 1-10 minutes with high speed roller rotation.

2 This Pipe machine use the dry cast material, there will no waste cement mud, then it wont pollute the environment.

3 During the production, the noise is low, it is about 80-90 DB

4 The Concrete Pipes are with high pressure load and with high production efficiency.

Working Principle

   This machine use the Roller to support the pipe mould, and produce the roller force to concrete in the mould. When the roller rotate at a high speed, the concrete in the mould will spread in the inner wall of the pipe mould and form a cement pipe with the centrifugal force, and when the mould with the inner concrete pass on the roller,the concrete between the mould and the roller will be compacted solid to form a pipe.
