2015 concrete electric poles making machine for kenya

FOB Price

USD $10,000 - $500,000 / Set

1 Set(Min.Order)

Port QINGDAO TIANJIN SHANGHAI
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Pipe Production Line
Pipe Material	Concrete	Application	Other, electric pole
Production Capacity	80 sets one year	Brand Name	HX
Model Number	HX series	Voltage	as your request
Power(W)	30kw	Dimension(LWH)	1500450750mm
Weight	600KGS	Certification	ISO,CE
Warranty	one year	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

1.Centrifugal type Concrete Pipe Machine

The machine takes sands, stones and cement as raw materials to produce many kinds of reinforced concrete drainage pipe with the length of 1000-4000mm, internal diameter of 200-4000mm with the mouth shapes of flat, tongue and groove and socket and spigot. All mechanical indexes have meet the national standards. They have been used widely in deep well, municipal drainage, expressway and other water supply and sewerage works with higher level required. The production efficiency can reach 4-5 piece/hour.

2. Features

The centrifugal machine is mainly used to manufacture the centrifugal equipments manufacturing the reinforced concrete drainpipes, driving the spinning of the drainpipe concrete pipe mold loaded with some concrete and reinforcing steel with a certain mixing ratio at different speeds, and the solid phase particles of concrete in steel mould will be centrifugal settling in the steel mould inner surface under centrifuge, meanwhile draining the excessive water, thus forming compacting concrete structure namely reinforcing concrete drainpipe. The machine mainly consists of riding wheels, shafts, bearing block, bearing, V-blet pulley, base and electromagnetic speed-controlling motor.

parameter

o.	Item		Unit	Types and forms of composition
				Double Riding Wheel	Three Riding Wheel
1	Riding wheel trea d		MM	2000	2000
2	Riding wheel base		MM	800	800
3	Riding wheel external diameter		MM	550	550
4	Width of riding wheel		MM	80	80
5	The angle of center of riding wheel and wired of the center of steel mould α		(°)	75°-110
6	Max. Length of Molding Pole		M	15		15
7	Diameter of molded pole	Root apex of tapered pole	M	550		550
		Equal-diameter pole	M	500		500
8	Motor Power		KM	22		45
9	Range of speed of drive shaft		r/min	60-600 (continuously)		60-600 (continuously)

Features

1. Saving a great deal of steel, about 30~70% (employing cold drawn steel wire can save 30%~60%; employing high stress steel wire can save 40%~69%).

2. Crack resistance can increase about 3~5 times.

3. Rigidity increases 1~3 times.

4. Reducing the cost (using cold drawn steel wire can reduce 25%~40%; using high stress steel wire can reduce 12%~21%).

5. Good durability, can delay the existence and expansion of cracks.

6, Protect the environment on which human beings depend on for existence, and reduce the deforestation.

working principle

1. Adding the slurry into the mould, it is driven quickly and rotated in the same speed of the machine. Each component is separated and released under the centrifugal force. Usually the higher the slurry rotate speed, the better the slurry separating effect.

2. Centrifugal sedimentation is the use of different density of each component in the slurry, which is rotated under the centrifugal force. To realize the liquid - solid (or liquid - liquid) separation.

3. The speed of separation is slow when the viscosity of slurry is high.

4. It is good for centrifugal sedimentation when the slurry density is different in each component.

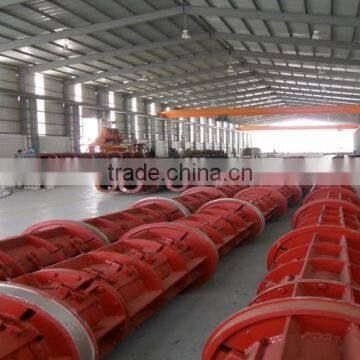

Product Overviews

Our Services

1. Commitment to quality and one year guarantee for main body.

2. We arrange engineer to supervise installation, make the load test, do commissioning, train of the buyer's workers.

3. Customer service 24 hours per day, 7 days per week.

4. Technique support: for any time, any way.
