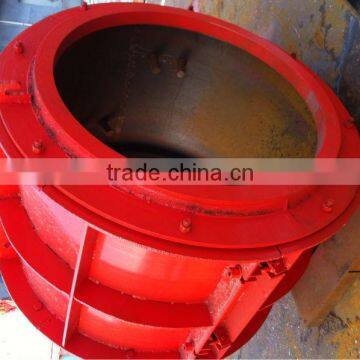

Suspension Concrete Pipe Moulds of All Types

FOB Price

USD $10,000 - $30,000 / Set

1 Set(Min. Order)

Port QINGDAO TIANJIN
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Pipe Production Line
Pipe Material	Concrete	Application	Other, electrical pole making
Production Capacity	5-6 poles/hour	Place of Origin	Shandong, China
Brand Name	HeXie	Model Number	HX series
Voltage	220/380/440v	Power(W)	30/45/55 kw electromagnetic
Dimension(LWH)	600-1500450750mm	Weight	depends on your produce capability
Certification	ISO9001:2008	Warranty	1 years
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Specifications

1.Equivalent Diameter Electric Poles
2.R.Circular Reinforced Concrete Pole
3.Circular Reinforced Concrete Poles

Product Description

Pre-stressed Concrete Spun Pole Spinning Machine is a kind of mould equipment, which used for making a variety of different diameter and length of reinforced concrete poles and other cement products.

Pre-stressed Concrete Spun Pole Spinning Machine is operated by remote-controlled continuously variable motor. It runs smoothly and has a variable-speed range. So the production of concrete pipes and piles are good at quality.

The base of the machine is welded in box-type structure, sturdiness and durability. The bearings are sealed and reliable, long life. Random electric control equipment is complete and easy to use.

Our Automatical Prestressed Concrete Spun Pole/pile Production Line can make pole/pile range from 6,7,8,9,12,15,16,30m,design according to your demand

Overview

This machine is a kind of mould equipment, which used for making a variety of different diameter and length of reinforced concrete poles and other cement products.
This machine is operated by remote-controlled continuously variable motor. It runs smoothly and has a variable-speed range. So the production of concrete pipes and piles are good at quality.
The base of the machine is welded in box-type structure, sturdiness and durability. The bearings are sealed and reliable, long life. Random electric control equipment is complete and easy to use.

Working Principle

1. Adding the slurry into the mould, it is driven quickly and rotated in the same speed of the machine. Each component is separated and released under the centrifugal force. Usually the higher the slurry rotate speed, the better the slurry separating effect.
2. Centrifugal sedimentation is the use of different density of each component in the slurry, which is rotated under the centrifugal force. To realize the liquid - solid (or liquid - liquid) separation.
3. The speed of separation is slow when the viscosity of slurry is high.
4. It is good for centrifugal sedimentation when the slurry density is different in each component.

Features

1. Saving a great deal of steel, about 30~70% (employing cold drawn steel wire can save 30%~60%; employing high stress steel wire can save 40%~69%).
2. Crack resistance can increase about 3~5 times.
3. Rigidity increases 1~3 times.
4. Reducing the cost (using cold drawn steel wire can reduce 25%~40%; using high stress steel wire can reduce 12%~21%).
5. Good durability, can delay the existence and expansion of cracks.
6, Protect the environment on which human beings depend on for existence, and reduce the deforestation.

parameter

No.	Item		Unit	Types and forms of composition
				Double Riding Wheel	Three Riding Wheel
1	Riding wheel trea d		MM	2000	2000
2	Riding wheel base		MM	800	800
3	Riding wheel external diameter		MM	550	550
4	Width of riding wheel		MM	80	80
5	The angle of center of riding wheel and wired of the center of steel mould α		(°)	75°-110
6	Max. Length of Molding Pole		M	15		15
7	Diameter of molded pole	Root apex of tapered pole	M	550		550
		Equal-diameter pole	M	500		500
8	Motor Power		KM	22		45
9	Range of speed of drive shaft		r/min	60-600 (continuously)		60-600 (continuously)

Technical Parameter

top end inner diameter (mm)	Tread (mm)	Running wheel diameter (mm)	Length (m)
150	2000	600	7-12
170	2000	600	7-12
190	2000	650	7-15
230	2000	650	6-9
300 equal diameter	2000	600	6-9
350 equal diameter	2000	650	6-12
310	2000	650-780	6-15

working flow

our services

1. Commitment to quality and one year guarantee for main body.

2. We arrange engineer to supervise installation, make the load test, do commissioning, train of the buyer's workers.

3. Customer service 24 hours per day, 7 days per week.

4. Technique support: for any time, any way.
