Home > Products > Wood working machinery > High Performance and Low Price Automatic Cut- Block Machine

High Performance and Low Price Automatic Cut- Block Machine

FOB Price

US$ 3,500 - 4,100 / Piece

1 Piece(Min. Order)

Port Qingdao seaport
Payment TermsT/T Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Henan, China
Brand Name	LANKAI	Model Number	YB-3
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Professional performance Automatic cut- block machine

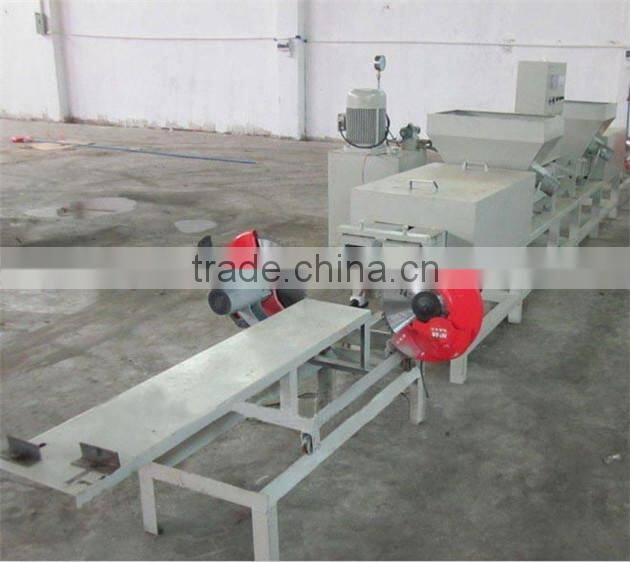

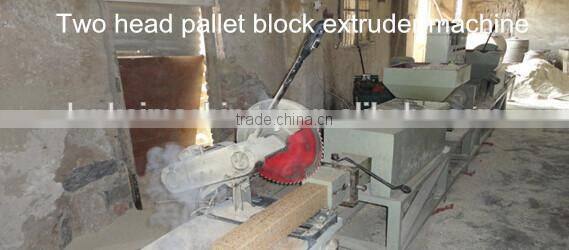

1. Two head pallet block extruder machine

This is the two head pallet block extruder machine, each side have only one head.

Each head can be different size of blocks.

Technical parameter:

Mode	Power	Temperature Control way	Block density	Capacity	Weight	Dimension
75*75	12kw	PID control	550-600kg/m³	2-2.5m³/24h	1200kg	54007501680mm
80*80	12kw	PID control	550-600kg/m³	2-3 m³/24h	1250 kg	54007501680mm
80*90	15kw	PID control	550-600kg/m³	2-3.2 m³/24h	1300 kg	54007501680mm
90*90	15kw	PID control	550-600kg/m³	2-4 m³/24h	1350 kg	54007501680mm
100*100	18kw	PID control	550-600kg/m³	2-4 m³/24h	1400 kg	54007501680mm
100*120	18kw	PID control	550-600kg/m³	2-4 m³/24h	1450 kg	54007501680mm
120*120	18kw	PID control	550-600kg/m³	2-4 m³/24h	1500 kg	54007501680mm
120*140	19kw	PID control	550-600kg/m³	2-4 m³/24h	1550 kg	54007501680mm
140*145	19kw	PID control	550-600kg/m³	2-5 m³/24h	1600kg	54007501680mm
Remark:The length of the machine do not include the cutting machine e, we can do the machine different size different shape according the client requirements. We can make the final blocks with holes or without holes , please inform us when you order the machine

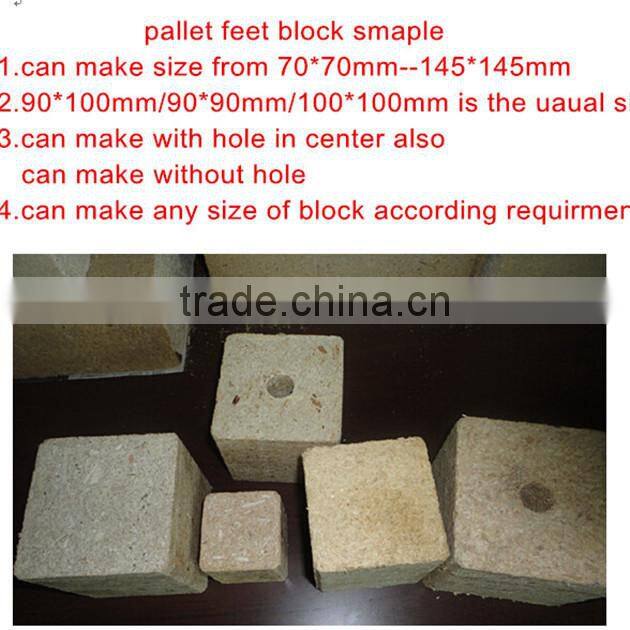

Final products picture:

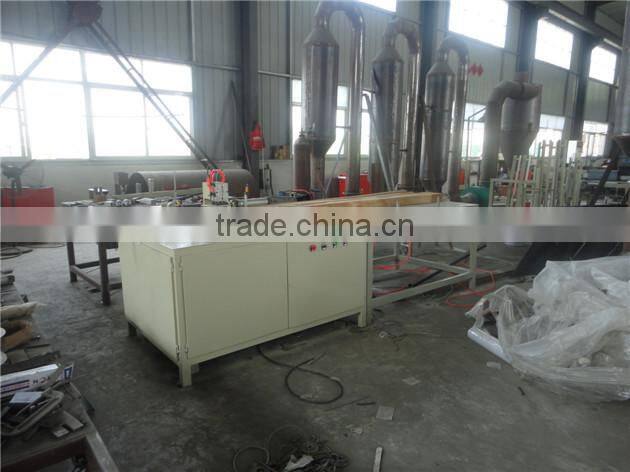

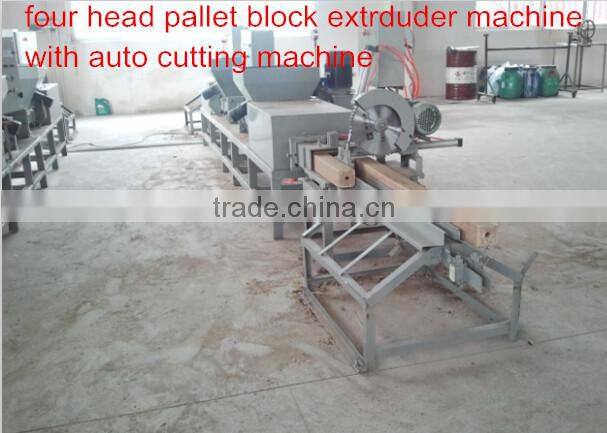

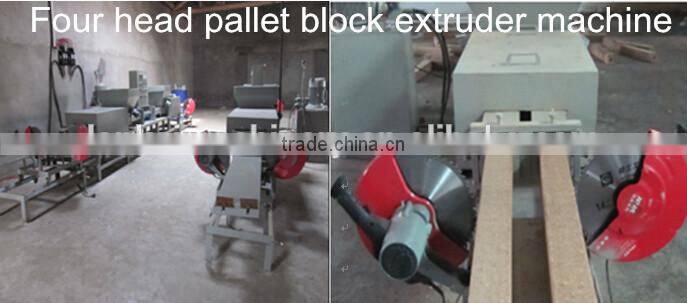

2. Four head pallet block extruder machine

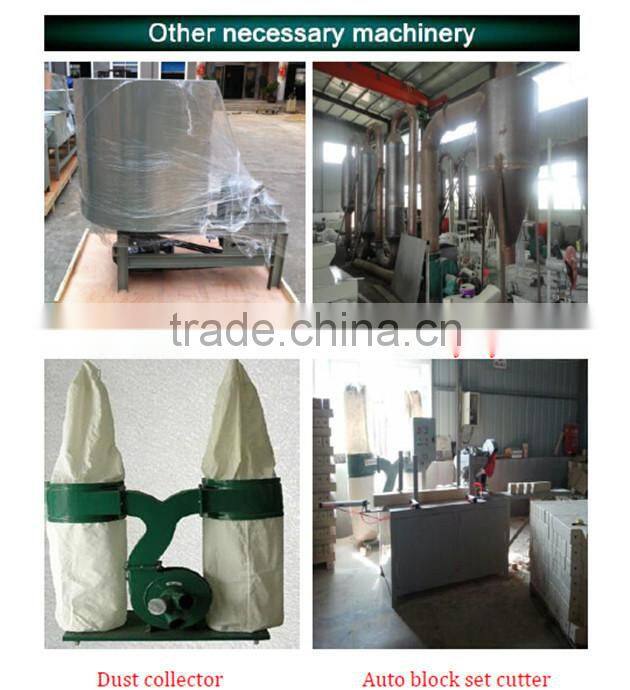

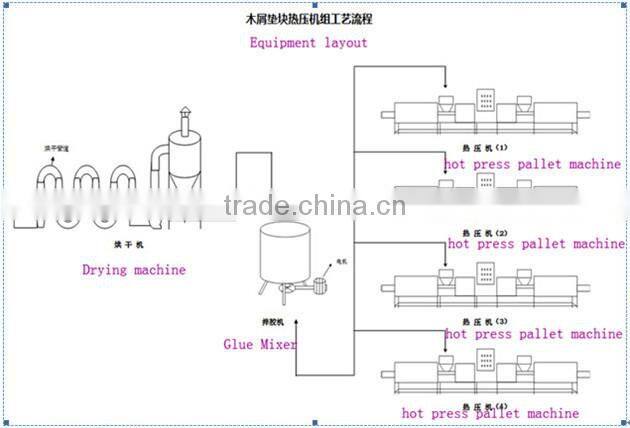

Equipment disposition: Generally four hot presses are a production line, must provide the dryer, the gluing machine, grinder each. (Dryer, gluing machine, grinder and so on supporting facility customer buys in addition).

Personnel disposition: Production personnel’s 4-5 person of/classes. And raw material sort (screening), drying, spreads 2-3 people, looked that machine 2 people (a person may look at two machines).
Production cycle: After confirmation order form and payment advanced payment, 40 super craftsmanship factory delivery.
Equipment investment recoupment period: 10— 12 months.
This factory is responsible for the technical training, and provides the consummation the post-sale service.

Mode	Power	Temperature Control way	Block density	Capacity	Weight	Dimension
75*75	12kw	PID control	550-600kg/m³	3-3.5m³/24h	1250kg	48005801420mm
80*80	12kw	PID control	550-600kg/m³	3-4 m³/24h	100 kg	48005801420mm
80*90	15kw	PID control	550-600kg/m³	3-4.m³/24h	1150 kg	48005801420mm
90*90	15kw	PID control	550-600kg/m³	3-4.5 m³/24h	1200 kg	48005801420mm
100*100	18kw	PID control	550-600kg/m³	3-4.5m³/24h	1300 kg	48005801420mm
100*120	18kw	PID control	550-600kg/m³	3-4.5 m³/24h	1350 kg	48005801420mm
120*120	18kw	PID control	550-600kg/m³	3-4.5 m³/24h	1400 kg	48005801420mm
120*140	19kw	PID control	550-600kg/m³	3-4.5 m³/24h	1450 kg	48005801420mm
140*145	19kw	PID control	550-600kg/m³	3-5 m³/24h	1500 kg	48005801420mm
Remark:The length of the machine do not include the cutting machine e, we can do the machine different size different shape according the client requirements.Two head at the same side should the same size of mould, the different sides can make different size of mould , means this machine can make two sizes of mould. We can make the final blocks with holes or without holes , please inform us when you order the machine

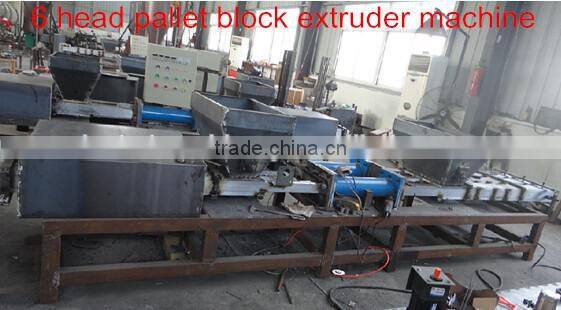

2. Six head pallet block extruder machine

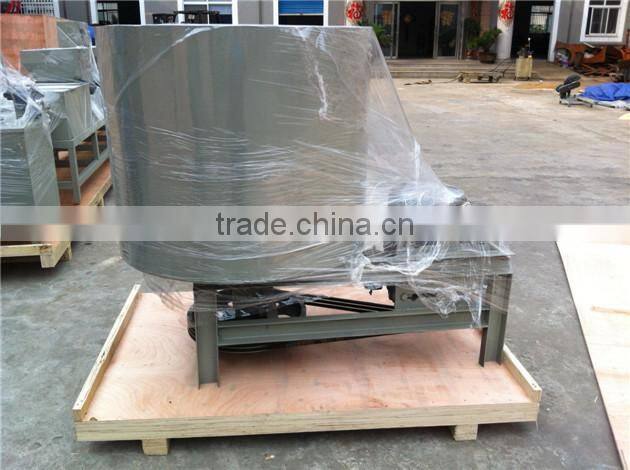

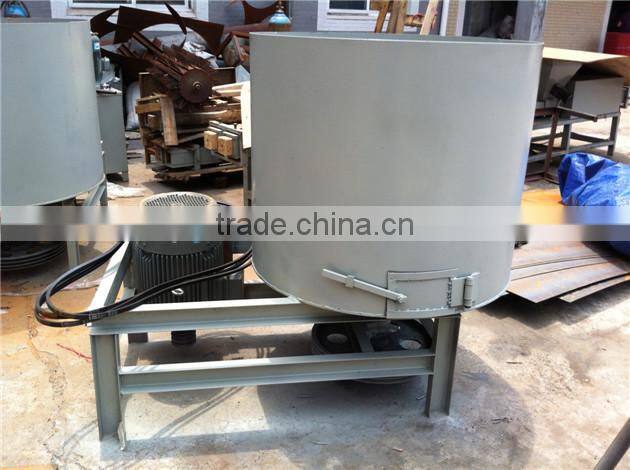

4. Glue mixing machine

Model	1100
Motor power	7.5kw
Body thickness	3mm
Bottom thickness	6mm
Dimension	150010001300mm
Rotary speed	960r/min
Mixing time	2-3min/time
Capacity	1800kg/h

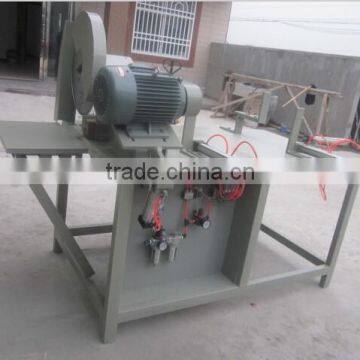

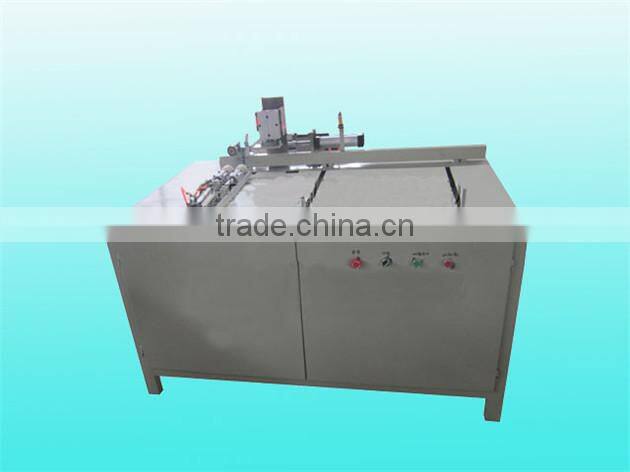

5. Automatic pallet feet block cutting machine (One time cutting two)

Motor power	5.5kw
Weight	300kg
Dimension	22508901300mm
Saw diameter	355mm
Rated hz	50hz
Rotary speed	2800r/min
Capacity	1000piece/hour
Features: can automatic adjust to cut different size of the blocks.

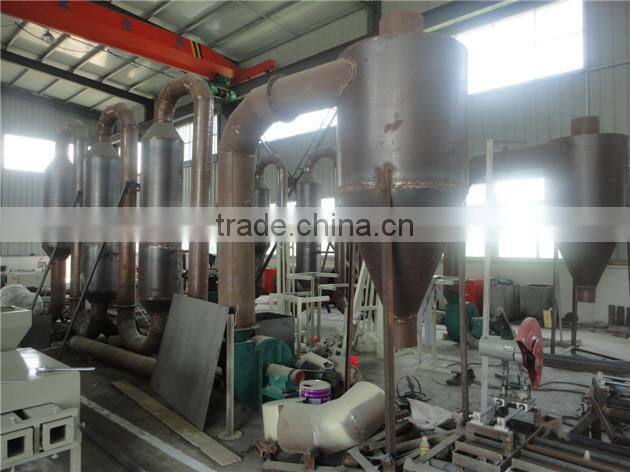

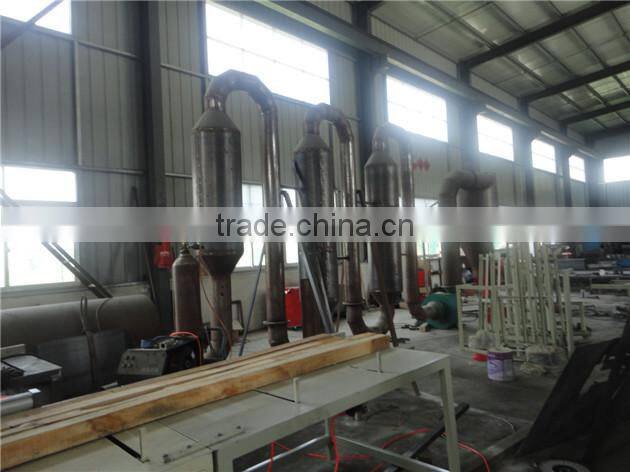

6. Air flow drying machine

Model	BY-30	BY-40
Power	7.5kw	7.5kw
Steel pipe thickness	2mm	2mm
Big pipe diameter	400mm	400mm
Small pipe diameter	320mm	320mm
Capacity	900kg/hour	900kg/hour
Rotary speed	8r/min	8r/min
Wind volume	10000cubic meter/h	10000cubic meter/h
Air temperature in dryer	250 degree	250 degree
Water remove capacity	200kg/hour	200kg/hour
Air flowing speed	8m/second	8m/second
Drying efficiency	85%	85%
Raw material water content	30%	40%
Dimension	860016002500mm	860016002500mm
Machine net weight	2500kgs	2600kgs

7. Screw conveyor

Motor: 2.2kw

Length: 3meters

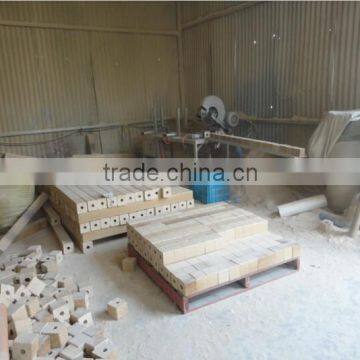

Final products:

Installation:

1. The customer should prepare the factory well before the engineer come the install the machines.

2. The customer should pay flight tickets and visa for the engineers

3. The customer should provide hotel and food for the engineers.

4. The customer should pay everyday 100USD salary to the engineers.

5. Total install time will be 8days to 15days. Include training customers’ workers, and testing the machine well and making sure the machine can work well.

6. The customer should prepare one translator for our engineer for communication.

7. The engineer should come to install the machine immediately after the customer send the invitation letter and that should be the machine reach the customers ‘factory.

Warranty

1. Warranty time: 1 year

2. Within three years, if any spare parts broken because of the quality of the machine itself we will provide free spare parts, but as for the wrong operation of the workers, we will not be responsible for the spare parts.

3. We provide all the technical and service for our machines, include install the machine well, test the machine well, and train the workers.

Delivery time:

Within 25 days after the clients place the order to us.
