Home > Products > wire machines > Automatic High Speed Wire Cable Package Machine/wire Wrapping Machine/copper Wire Wrapping Machine
Automatic High Speed Wire Cable Package Machine/wire Wrapping Machine/copper Wire Wrapping Machine
- qingdao
- Credit Card PayPal
You May Like
-
Automatic High Speed Wire Cable Package Machine/wire Wrapping Machine
-
Good Quality ! Wire Coiling Winding Machine Wire Winding Machine Automatic Wire Winding Machine Copper Wire Coil Winding Machine
-
Good Quality ! Wire Coiling Winding Machine Wire Winding Machine Wire Spool Winding Machine Copper Wire Winding Machine
-
Good Quality ! Wire Coiling Winding Machine Copper Wire Winding Machine Copper Wire Coil Winding Machine Automatic Wire Winding
-
Automatic Wire Winding Machine/wire Spooling Machine/wire Spool Winder Machine
-
Automatic Wire & Cable Coiling Machine/wire Coiling Machine/cable Coiling Equipment
Product Details
| Place of Origin | Henan, China | Brand Name | LANKAI | |
| Model Number | HD-630 | Usage | Other, copper wire wrapping machine |
Product Description
wire cable package machine/wire wrapping machine/copper wire wrapping machine features:
1.good quality
2.high efficiency
3.hot selling
4.low labor
Usage:
This machine is the vertical double layer paper package machine, this machine will package the naked wire by Mica tape, tissue paper tape, transparent tape, fire-resistant tape, aluminum foil,etc.
Working principle:

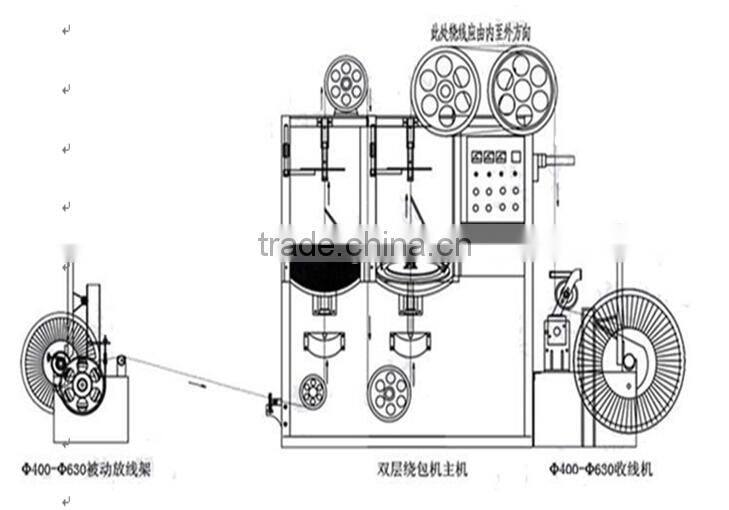

This machine for single head around to package , by the AC motor through belt drive gear , then through a couple of cone gear rotation to make wrapped tray to turn round. The core wire was lead to take the wheel drive.
Technical parameter:
high speed wire wrapping machine | |
Model | HD-630 |
Suitable tape for the machine | Mica tape,cotton paper tape, aluminum foil,paper tape Transparent tape ,drawing tape,etc |
Suitable wire diameter | Soft structure of diameter 0.8-15mm Hard structure of diameter less than 10 square millimeter |
Suitable tape size | Tape width:6mm-18mm Package material dick hole diameter:52mm |
Adjustment | stepless adjustment |
Tape rotary speed | Without loading max: 2500r/min With loading max:2200r/min |
Suitable pay-off disk size | Disk diameter:400-630mm Disk width:300-475mm Disk hole diameter:50-80mm |
Machine occupy area | 4000*1200*2000mm |
Double head high speed wire wrapping machine | |
Model | HD-630 |
Suitable tape for the machine | Mica tape,cotton paper tape, aluminum foil,paper tape Transparent tape ,drawing tape,etc |
Suitable wire diameter | Soft structure of diameter 0.8-12mm Hard structure of diameter less than 10 square millimeter |
Suitable tape size | Tape width:6mm-18mm Package material dick hole diameter:52mm |
Adjustment | stepless adjustment |
Tape rotary speed | Without loading max: 2500r/min With loading max:2200r/min |
Suitable pay-off disk size | Disk diameter:400-630mm Disk width:300-475mm Disk hole diameter:50-80mm |
Machine occupy area | 4000*1200*2000mm |

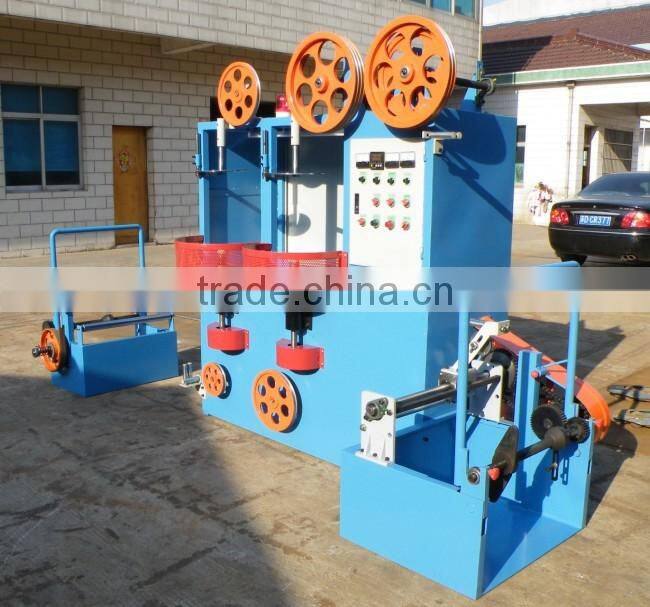

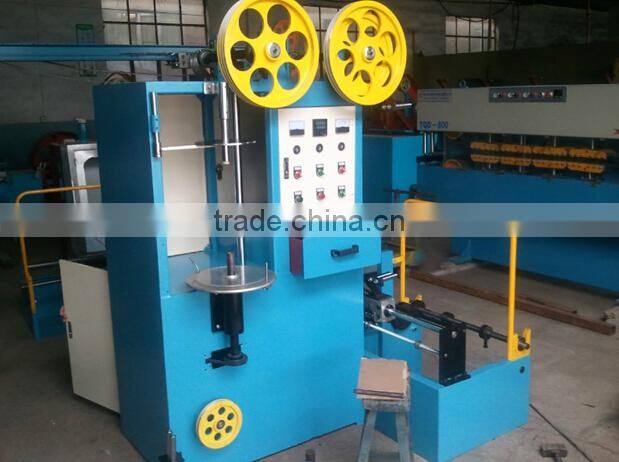

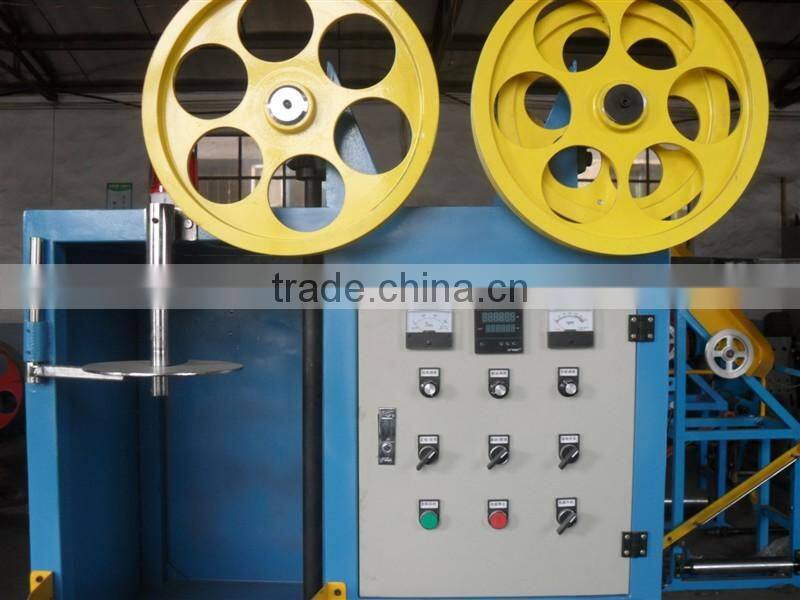

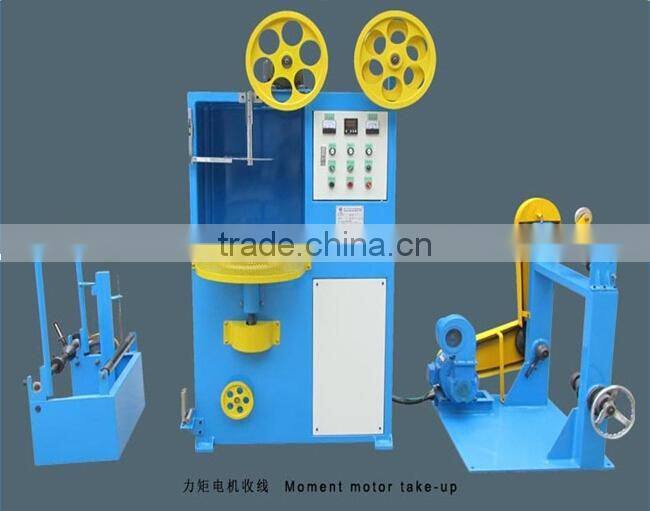

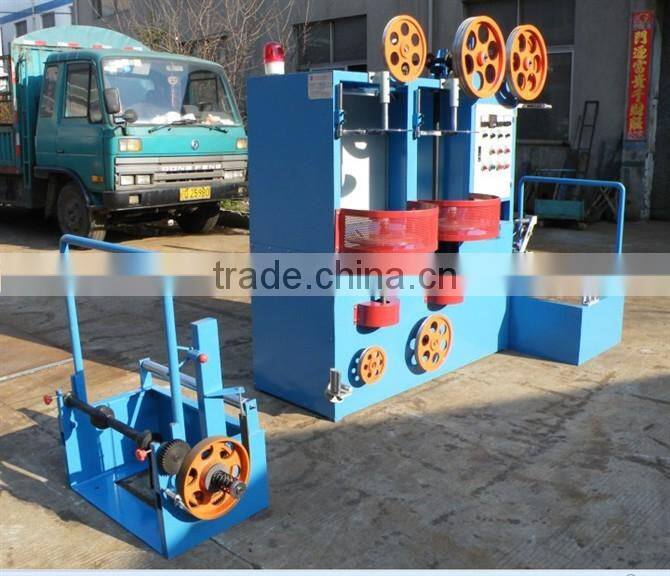

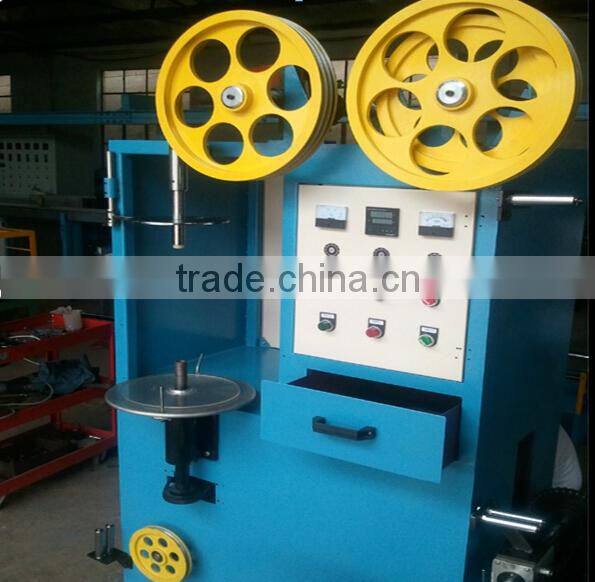

pictures of the copper wire wrapping machine :
if you are interested in this machine,please contact Miss Lemon Zhao
mobile phone :0086 13140123617
