Automatic Good Performance Nail Machine /nail Making Machine /wire Nail Making Machine/wire Tack Making Machine
- qingdao
- Credit Card
You May Like
-
Automatic Hot Selling Wire Nail Machine/nail Making Equipment/nail Machine/nail Making Machine
-
Good Quality Automatic Wire Nail Making Machine/nail Making Machine /steel Nail Making Machine
-
Automatic Nail Machine/wire Nail Making Machine/nail Making Machine
-
Good Quality Waste Steel Nail Making Machine/wire Nail Making Machine/China Nail Making Machine
-
Good Quality Nail Machine/nail Making Machine /nail Manufacturing Machine
-
Good Quality Nail Making Machine/nail Machine/nail Polish Making Machine
Product Details
| Place of Origin | Henan, China | Brand Name | LANKAI | |
| Model Number | 712 | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
nail machine nail making machine wire tack making machine features:
1.easy operate
2.high speed
3.stable performance
4.low labour
Make nail from used reinforcing steel bar is the high technical usage and recycle the waste to make nail.
Advantage: low motor. Energy saving, high quality.
Technical parameter:
Model | 711 |
Max Nail making length | 32mm |
Max Nail diameter | 1.8mm |
Capacity | 450unite/min |
Power | 1.5kw |
Noise | 55db |
Weight | 550kgs |
Dimension | 1350*950*1000mm |
Main body materials | QT50-5 |
Base frame materials | HT200 |
Main crankshaft material | 40Cr(through High frequency heat treatment) |
Side crankshaft material | 40Cr(through High frequency heat treatment) |
Central slide block material | 42CrMo(Hard nitride treatment) |
Scissors slide block materials | 40Cr(Hard nitride treatment) |
Spindle big rod material | ZG310-570(through High frequency heat treatment) |
Side shaft small rod material | ZG310-570(through High frequency heat treatment) |
Guide fixed block material | 94Copper |
End fixed block material | 94Copper |
Main bearing shell for spindle materials | 663Copper |
Side bearing shell for side shaft material | 663Copper |
Half round block for sending iron materials | 94Copper |
Model | 712 |
Max Nail making length | 60mm |
Max Nail diameter | 2.8mm |
Capacity | 360unite/min |
Power | 2.2kw |
Noise | 60db |
Weight | 1250kgs |
Dimension | 1650*1150*1000mm |
Main body materials | QT50-5 |
Base frame materials | HT200 |
Main crankshaft material | 40Cr(through High frequency heat treatment) |
Side crankshaft material | 40Cr(through High frequency heat treatment) |
Central slide block material | 42CrMo(Hard nitride treatment) |
Scissors slide block materials | 40Cr(Hard nitride treatment) |
Spindle big rod material | ZG310-570(through High frequency heat treatment) |
Side shaft small rod material | ZG310-570(through High frequency heat treatment) |
Guide fixed block material | 94Copper |
End fixed block material | 94Copper |
Main bearing shell for spindle materials | 663Copper |
Side bearing shell for side shaft material | 663Copper |
Half round block for sending iron materials | 94Copper |
Model | 714 high speed |
Max Nail making length | 110mm |
Max Nail diameter | 4.5mm |
Capacity | 250unite/min |
Power | 3kw |
Noise | 70db |
Weight | 1850kgs |
Dimension | 2280*1420*1330mm |
Main body materials | QT50-5 |
Base frame materials | HT200 |
Main crankshaft material | 40Cr(through High frequency heat treatment) |
Side crankshaft material | 40Cr(through High frequency heat treatment) |
Central slide block material | 42CrMo(Hard nitride treatment) |
Scissors slide block materials | 40Cr(Hard nitride treatment) |
Spindle big rod material | ZG310-570(through High frequency heat treatment) |
Side shaft small rod material | ZG310-570(through High frequency heat treatment) |
Guide fixed block material | 94Copper |
End fixed block material | 94Copper |
Main bearing shell for spindle materials | 663Copper |
Side bearing shell for side shaft material | 663Copper |
Model | 715 |
Max Nail making length | 175mm |
Max Nail diameter | 6.5mm |
Capacity | 160unite/min |
Power | 4kw |
Noise | 70db |
Weight | 2500kgs |
Dimension | 2500*1600*1500mm |
Main body materials | QT50-5 |
Base frame materials | HT200 |
Main crankshaft material | 40Cr(through High frequency heat treatment) |
Side crankshaft material | 40Cr(through High frequency heat treatment) |
Central slide block material | 42CrMo(Hard nitride treatment) |
Scissors slide block materials | 40Cr(Hard nitride treatment) |
Spindle big rod material | ZG310-570(through High frequency heat treatment) |
Side shaft small rod material | ZG310-570(through High frequency heat treatment) |
Guide fixed block material | 94Copper |
End fixed block material | 94Copper |
Main bearing shell for spindle materials | 663Copper |
Side bearing shell for side shaft material | 663Copper |
Half round block for sending iron materials | 94Copper |
we have many different models to meet your requirement.

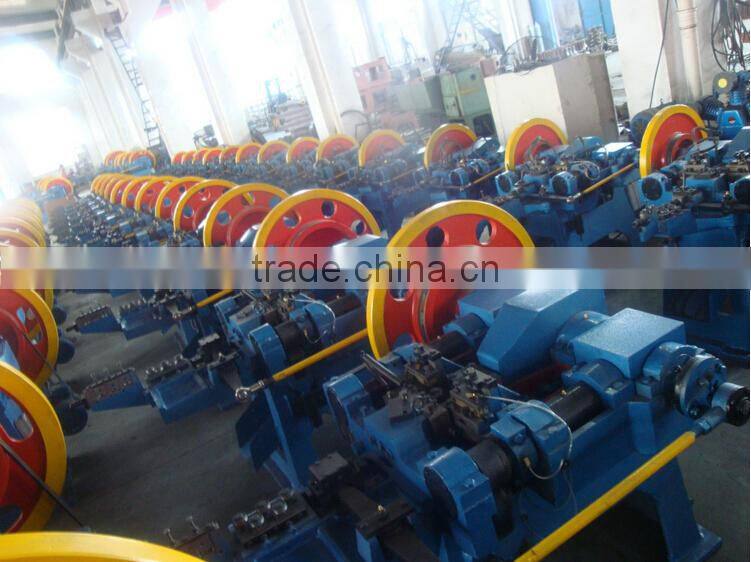

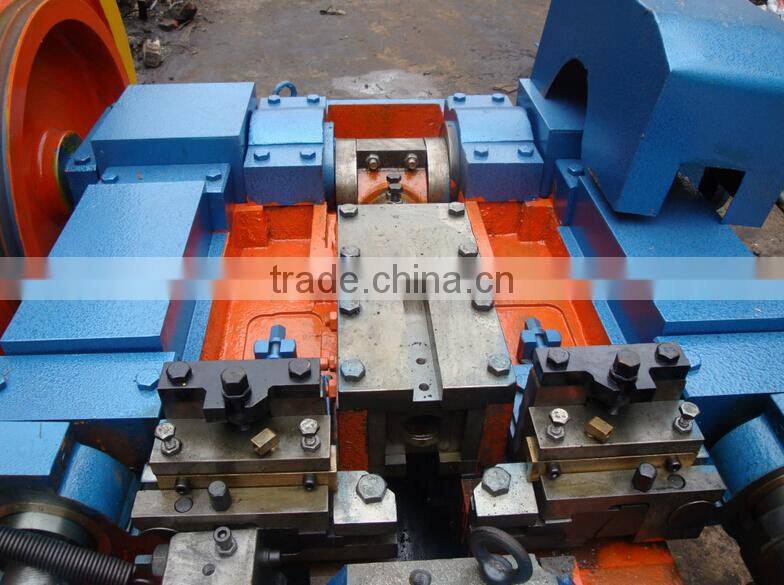

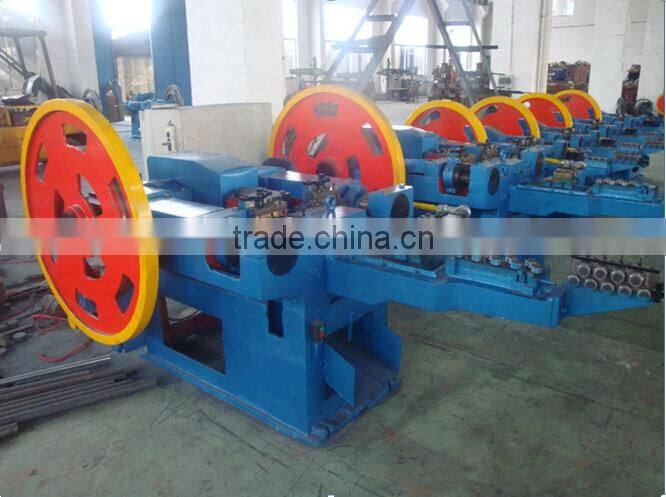

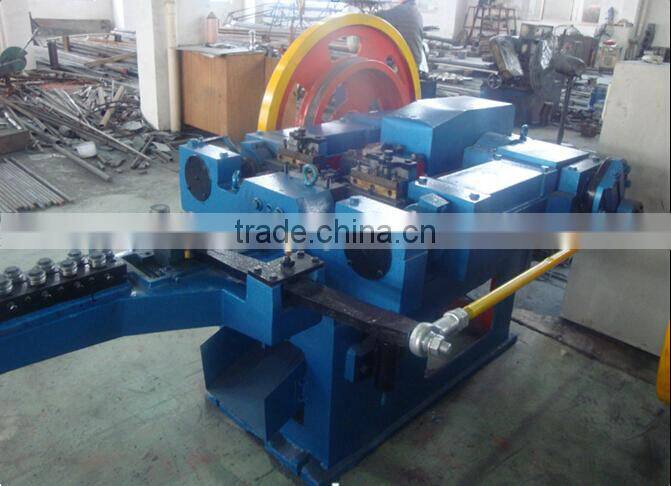

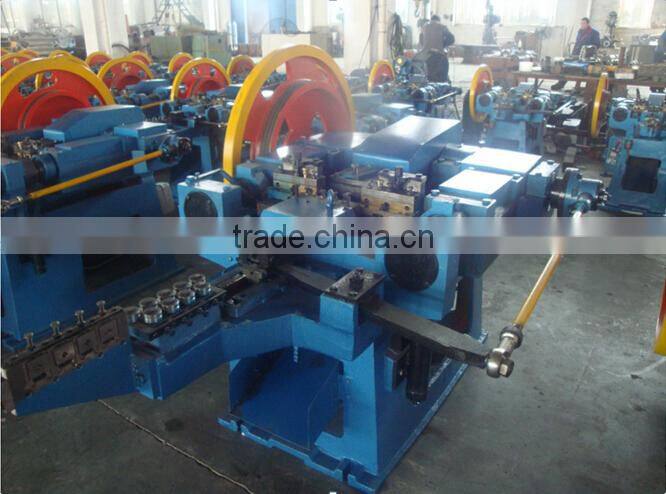

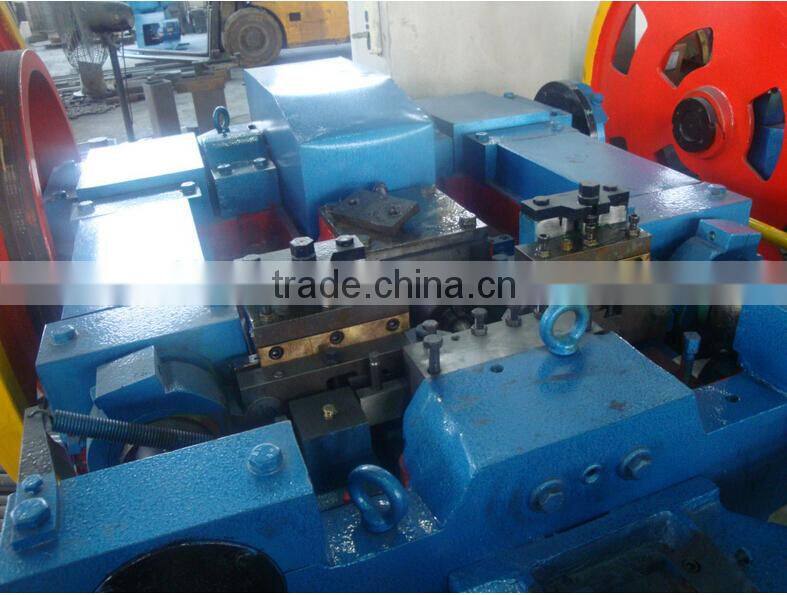

pictures of the wire tack making machine
if you are interested in this machine,please contact Miss Lemon Zhao
mobile phone:008613140123617
