Automatic Nail Making Equipment/nail Making Machine/wire Nail Processing Machine

FOB Price

US$ 3,000 - 4,000 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Henan, China		Brand Name	LANKAI
Model Number	713		After-sales Service Provided	Engineers available to service machinery overseas

nail making equipment/nail making machine/wire nail processing machine features:
1.easy operate
2.high speed
3.stable performance
4.low labour

Make nail from used reinforcing steel bar is the high technical usage and recycle the waste to make nail.

Advantage: low motor. Energy saving, high quality.

Technical parameter:

Model	711
Max Nail making length	32mm
Max Nail diameter	1.8mm
Capacity	450unite/min
Power	1.5kw
Noise	55db
Weight	550kgs
Dimension	13509501000mm
Main body materials	QT50-5
Base frame materials	HT200
Main crankshaft material	40Cr(through High frequency heat treatment)
Side crankshaft material	40Cr(through High frequency heat treatment)
Central slide block material	42CrMo(Hard nitride treatment)
Scissors slide block materials	40Cr(Hard nitride treatment)
Spindle big rod material	ZG310-570(through High frequency heat treatment)
Side shaft small rod material	ZG310-570(through High frequency heat treatment)
Guide fixed block material	94Copper
End fixed block material	94Copper
Main bearing shell for spindle materials	663Copper
Side bearing shell for side shaft material	663Copper
Half round block for sending iron materials	94Copper

Model	712
Max Nail making length	60mm
Max Nail diameter	2.8mm
Capacity	360unite/min
Power	2.2kw
Noise	60db
Weight	1250kgs
Dimension	165011501000mm
Main body materials	QT50-5
Base frame materials	HT200
Main crankshaft material	40Cr(through High frequency heat treatment)
Side crankshaft material	40Cr(through High frequency heat treatment)
Central slide block material	42CrMo(Hard nitride treatment)
Scissors slide block materials	40Cr(Hard nitride treatment)
Spindle big rod material	ZG310-570(through High frequency heat treatment)
Side shaft small rod material	ZG310-570(through High frequency heat treatment)
Guide fixed block material	94Copper
End fixed block material	94Copper
Main bearing shell for spindle materials	663Copper
Side bearing shell for side shaft material	663Copper
Half round block for sending iron materials	94Copper

Model	714 high speed
Max Nail making length	110mm
Max Nail diameter	4.5mm
Capacity	250unite/min
Power	3kw
Noise	70db
Weight	1850kgs
Dimension	228014201330mm
Main body materials	QT50-5
Base frame materials	HT200
Main crankshaft material	40Cr(through High frequency heat treatment)
Side crankshaft material	40Cr(through High frequency heat treatment)
Central slide block material	42CrMo(Hard nitride treatment)
Scissors slide block materials	40Cr(Hard nitride treatment)
Spindle big rod material	ZG310-570(through High frequency heat treatment)
Side shaft small rod material	ZG310-570(through High frequency heat treatment)
Guide fixed block material	94Copper
End fixed block material	94Copper
Main bearing shell for spindle materials	663Copper
Side bearing shell for side shaft material	663Copper
Half round block for sending iron materials	94Copper

Model	715
Max Nail making length	175mm
Max Nail diameter	6.5mm
Capacity	160unite/min
Power	4kw
Noise	70db
Weight	2500kgs
Dimension	250016001500mm
Main body materials	QT50-5
Base frame materials	HT200
Main crankshaft material	40Cr(through High frequency heat treatment)
Side crankshaft material	40Cr(through High frequency heat treatment)
Central slide block material	42CrMo(Hard nitride treatment)
Scissors slide block materials	40Cr(Hard nitride treatment)
Spindle big rod material	ZG310-570(through High frequency heat treatment)
Side shaft small rod material	ZG310-570(through High frequency heat treatment)
Guide fixed block material	94Copper
End fixed block material	94Copper
Main bearing shell for spindle materials	663Copper
Side bearing shell for side shaft material	663Copper
Half round block for sending iron materials	94Copper

we have many different models to meet your requirement.

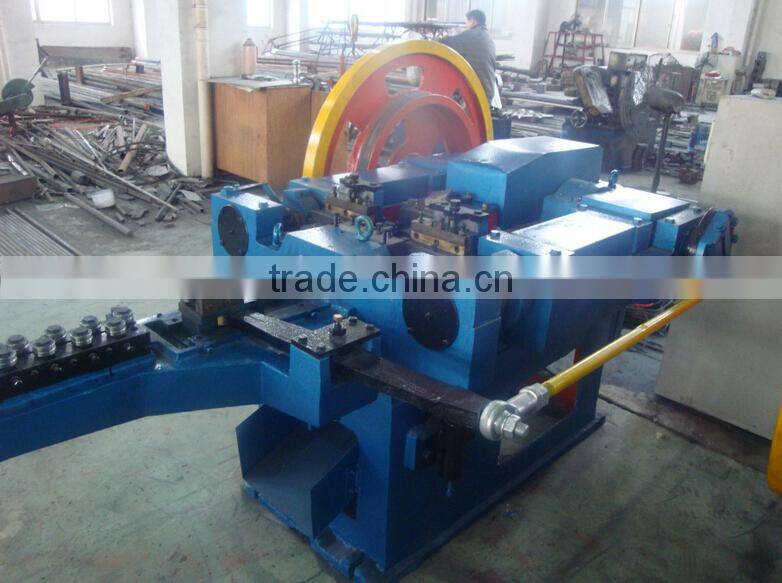

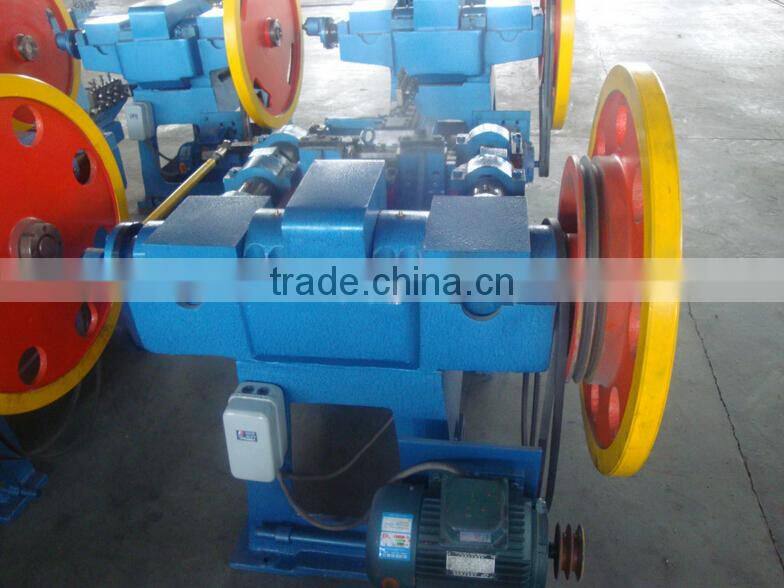

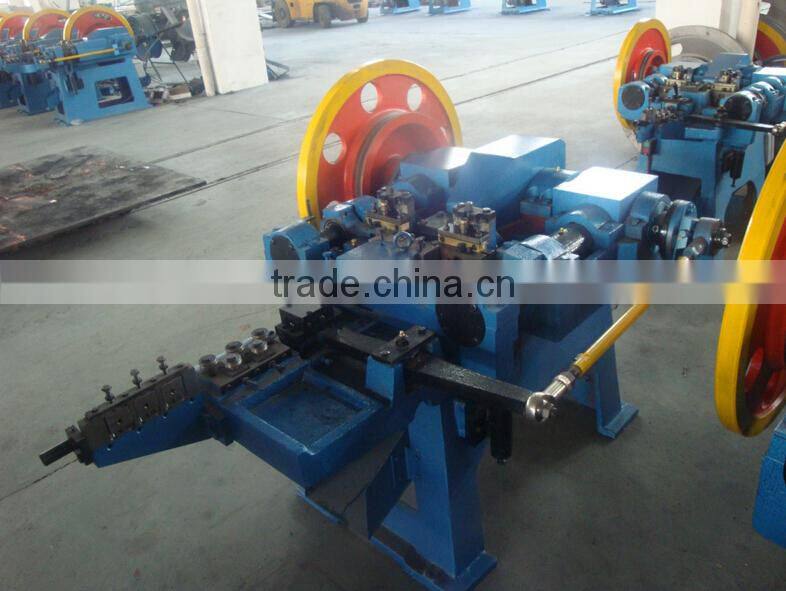

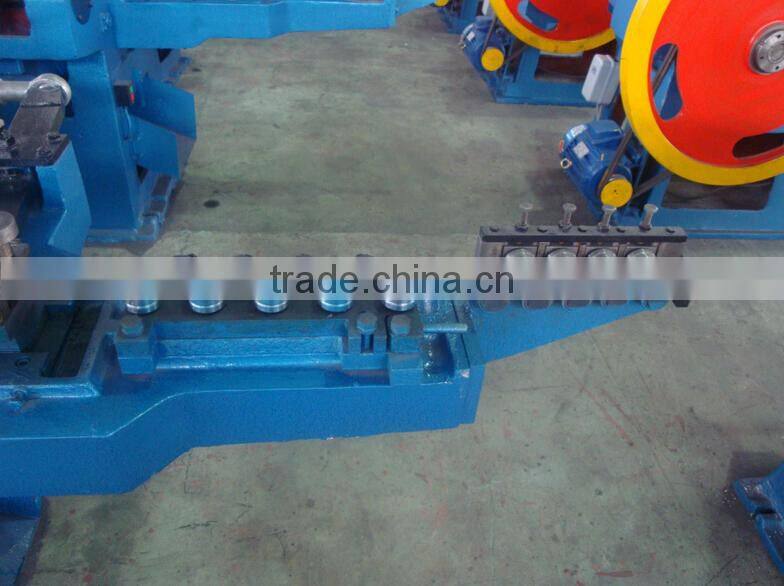

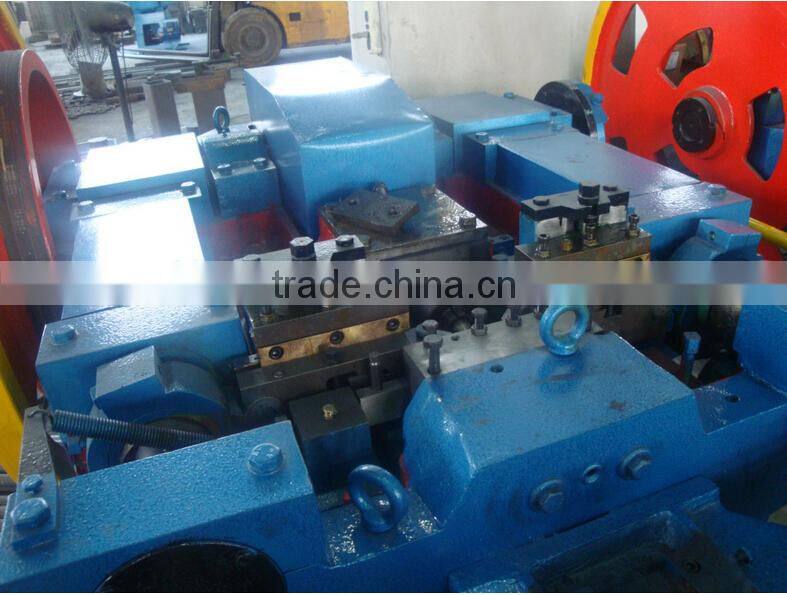

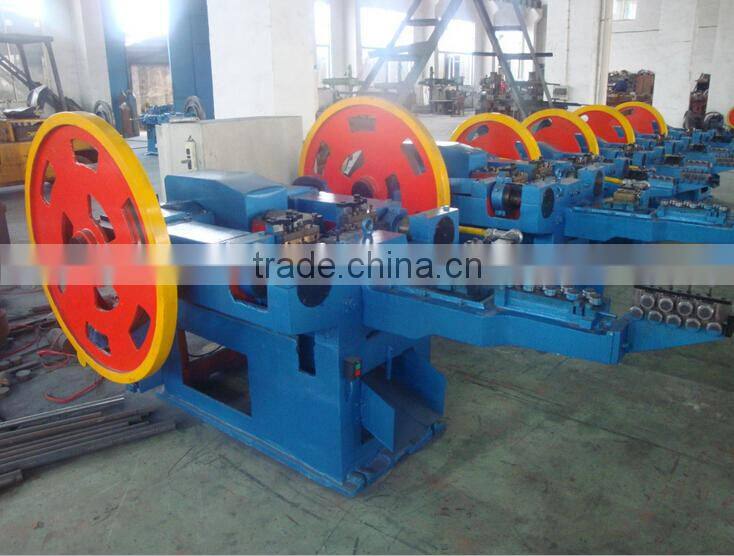

pictures of the wire nail processing machine :

if you are interested in this machine,please contact Miss Lemon

mobile phone:008613140123617
