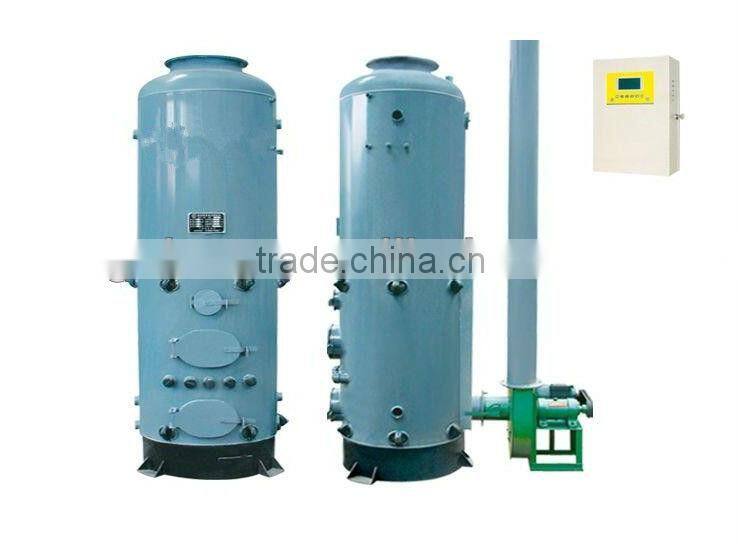

Working Simple Vertical Water Tube Boiler
- QINGDAO/TIANJIN/SHANGHAI
- T/T Credit Card
You May Like
Product Details
| Condition | New | Type | Natural Circulation | |
| Usage | Industrial | Structure | Fire Tube | |
| Pressure | Low Pressure | Style | Vertical | |
| Fuel | Other | Place of Origin | Henan, China | |
| Brand Name | GOLE | Output | Steam |
Product Description
Specifications
working simple vertical water tube boiler1,Compact structure, small installation area,2,easy to install.
3,Good heating
good quality small Coal Fired Vertical Steam Boiler
Model Item | LSC0.04- 0.4-AII
| LSC0.1- 0.4-AII | LSC0.15- 0.4-AII | LSC0.2- 0.4-AII | LSC0.3- 0.4-AII | LSC0.5- 0.4-AII | LSC0.7- 0.4-AII | LSC1.0- 0.4-AII |
Rated Capacity T/h | 0.04 | 0.1 | 0.15 | 0.2 | 0.3 | 0.5 | 0.7 | 1.0 |
Rated Working Pressure | 0.4 Mpa | |||||||
Rated Steam Temp. °C | 151.85 | |||||||
Feed Water Temp. °C | 20 |
|
|
| ||||
Heating Surface m² | 1.6 | 3.8 | 6 | 9.2 | 12 | 21.1 | 28 | 36 |
Grate Area m² | 0.096 | Up 0.1 Down0.14 | Up 0.2 Down0.28 | Up 0.45 Down0.5 | Up 0.57 Down0.78 | Up 0.95 Down1.13 | Up 0.95 Down1.13 | Up 0.85 Down1.13 |
Water Capacity T | 0.17 | 0.32 | 0.56 | 0.88 | 1.5 | 2.3 | 2.8 | 3.3 |
Design Fuel | Bituminous Coal | |||||||
Fuel Consumption Kg/H | 7 |
| 25 | 32 | 48 | 72 | 100 | 145 |
Thermal Efficiency % |
| 69 | 69 | 69 | 69 | 71 | 72 | 72 |
Heating Area m² |
|
| 930 | 1260 | 1890 | 3150 | 4420 | 6200 |
Bathe Person |
|
| 200 | 300 | 400 | 500~700 | 800~1000 | 1200~1500 |
Specification mm x mm | Ø 512x 1670 | Ø 612x 2430 | Ø 812x 2940 | Ø1012x 3320 | Ø1112x 3470 | Ø1316x 4050 | Ø1516x 4100 | Ø1616x 4570 |
Boiler Weight T | 0.265 | 0.727 | 1.36 | 1.818 | 2.16 | 3.2 | 3.4 | 4.9 |
Chimney Height mm | 3000 | 8000 | 12000 | 14000 | 14000 | 16000 | 16000 | 18000 |
Ringelmann shade | < Grade 1 | |||||||
